VW POLO MK5 6R (2010-2017) FACTORY SERVICE WORKSHOP MANUAL IN PDF FORMAT (9198 PAGES) AVAILABLE AS DOWNLOADABLE LINK.
THIS IS THE VW FACTORY MANUAL ADAPTED BY FLAMINGO AUTOMOTIVE TO THE ATTENTION OF SKILLED AND EXPERIENCED DYI AND BUSY WORKSHOP OPERATIVES. THE MANUAL FOCUS ON REPAIR/OVERHAUL AND WILL COVER THE MOST COMMON REPAIRS TO BE PERFORMED ON THE POLO MK5.
FULL WIRING, CONNECTOR, CURRENT FLOW DIAGRAMS AND WIRING HARNESSES ARE ALSO INCLUDED.
WHAT'S INSIDE ?
* Maintenance manual
*3-cyl. direct injection engine (1.0l, 4 V, EA 211, turbocharger)
*3-cyl. injection engine (1.0l, 4 V, EA 211)
*3-cyl. injection engine (1.0l, 4V, EA211 EVO)
*3-cyl. injection engine (1.2l, 2V EA211)
*4-cyl injection engine ( 1.2l, 4V EA211, turbocharger)
*4-cyl injection engine (1.4l 4V EA111, turbocharger)
*4-cyl. common rail (1.6l and 2.0 l, 4 V, turbocharger, EA 288)
*4-cyl. direct injection engine (2.0l, 4V, EA 888 gen III BZ, turbocharger, chain drive)
*4-cyl. injection engine (1.6l, 4 V, EA 211)
*4-cyl. direct injection engine (1.5l, 4V, EA211, turbocharger)
Fuel supply system
6-speed manual gearbox
6-speed dual clutch gearbox
7-speed dual clutch gearbox
Wheels and Tyres Guide
Running gear, axles, steering and brake systems
Communication

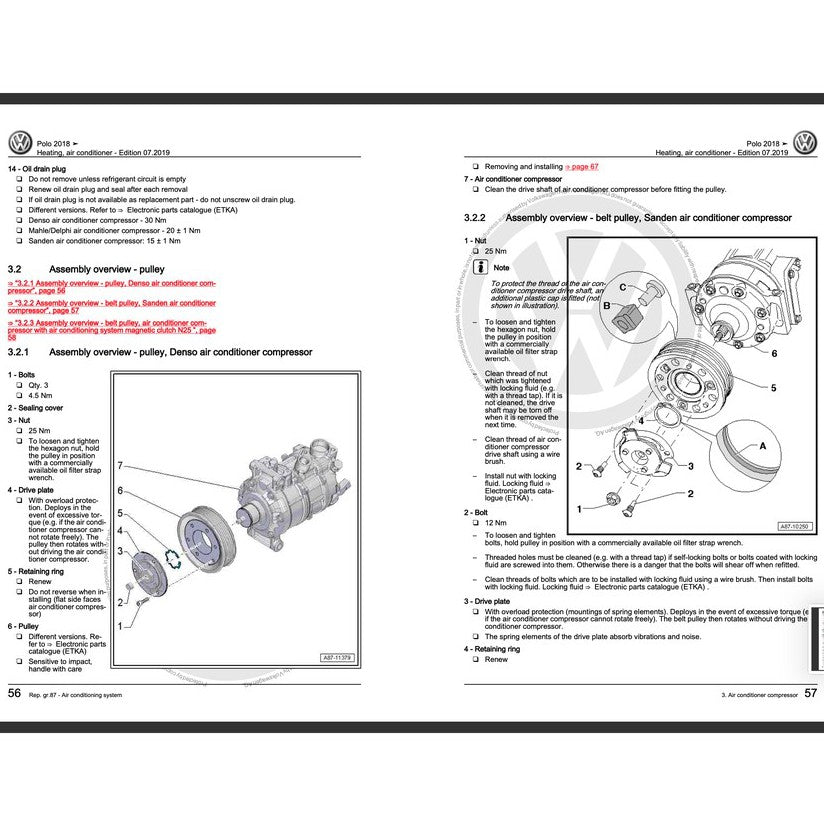

Heating, air conditioning
Vehicle-specific paint information
General body repairs, exterior
General body repairs, interior
Electrical system
Wiring Diagrams
Current flow diagram
CAVEAT: THIS IS WORKSHOP GRADE MATERIAL, NOT A CONSUMER PRODUCT
