TOYOTA YARIS XP210 (2020+) SERVICE WORKSHOP MANUAL

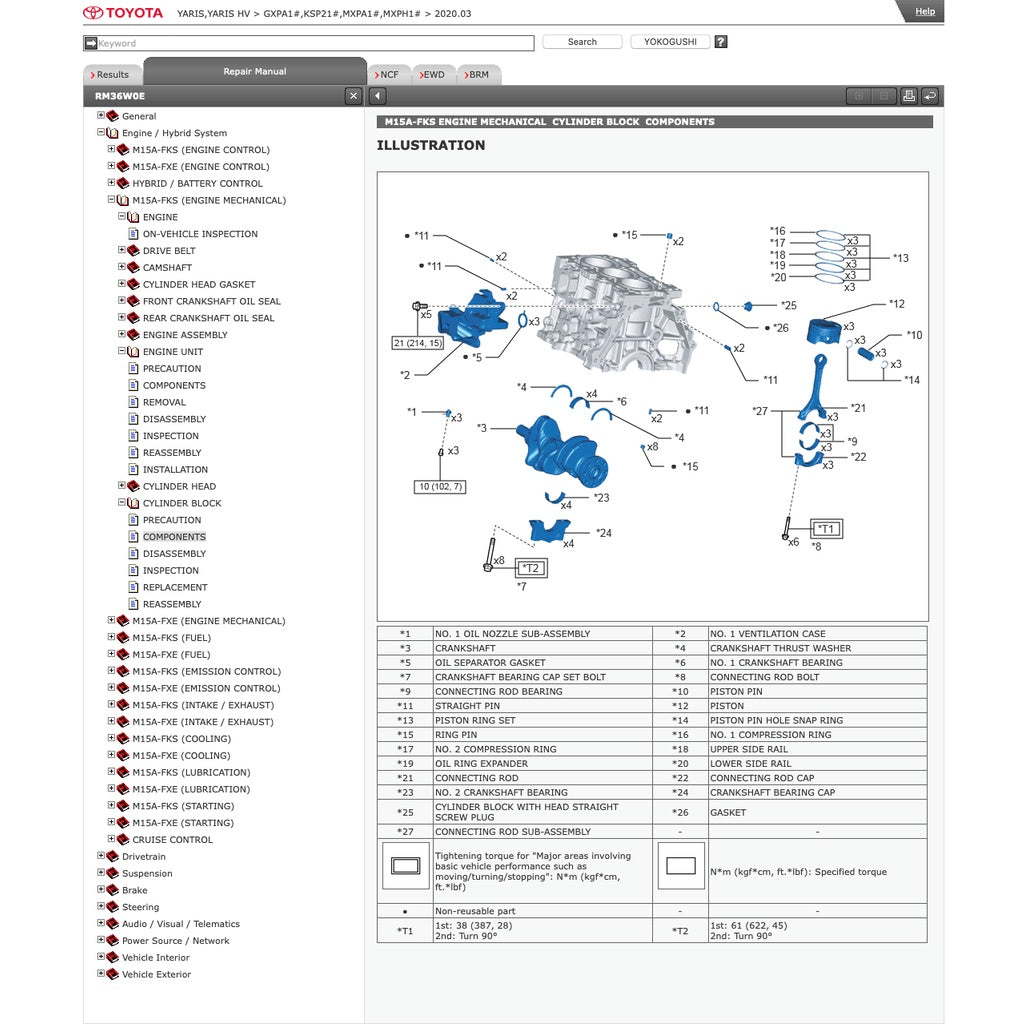

TOYOTA YARIS XP210 (2020+) TOYOTA GSIC SOFTWARE + ONLINE SERVICE WORKSHOP MANUAL SUPPLIED AS DOWNLOADABLE LINK.

ENGINE FEATURED IN THIS MANUAL: 1.0L 1KR-FE I3 & 1.5L M15A-FKS I3

POWERTRAIN
Engine
Petrol:
996 cc 1KR-FE I3 (KSP210/211)
1490 cc M15A-FKS I3 (MXPA10/11/15)
Petrol hybrid:
1490 cc M15A-FXE I3 (MXPH10/11/15)

Electric motor 59 kW (79 hp; 80 PS) 1NM ACsynchronous (front, hybrid)
3.9 kW (5.2 hp; 5.3 PS) 1MM AC synchronous (rear, hybrid)

Transmission
5-speed manual (1.0 L FWD)
6-speed manual (1.5 L FWD)
K120 CVT with physical first gear
eCVT (hybrid)
Hybrid drivetrain Power-splitBatteryLithium-ion (hybrid)
