TOYOTA C-HR CHR (2017-2023)ONLINE SERVICE WORKSHOP MANUAL SUPPLIED WITH DOWNLOADABLE LINK AND ON PEN DRIVE SHIPPED.

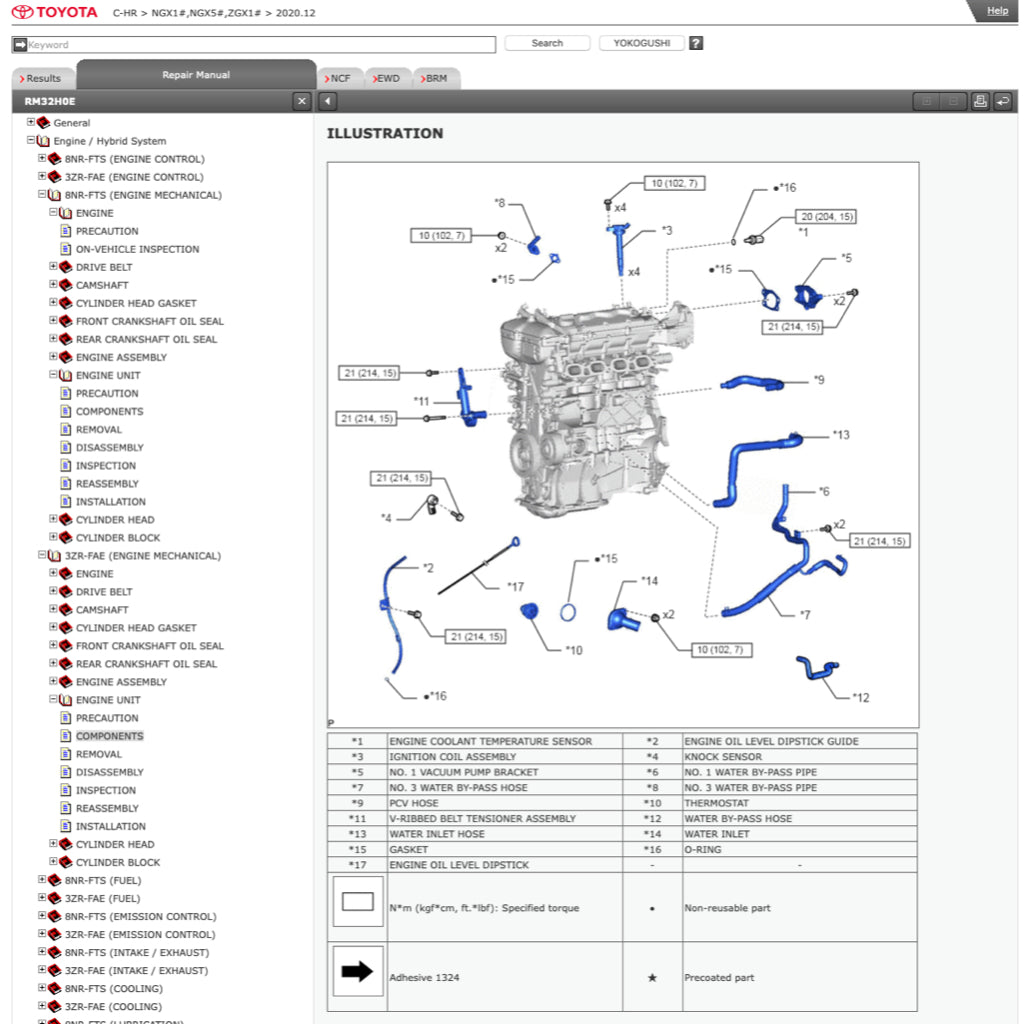

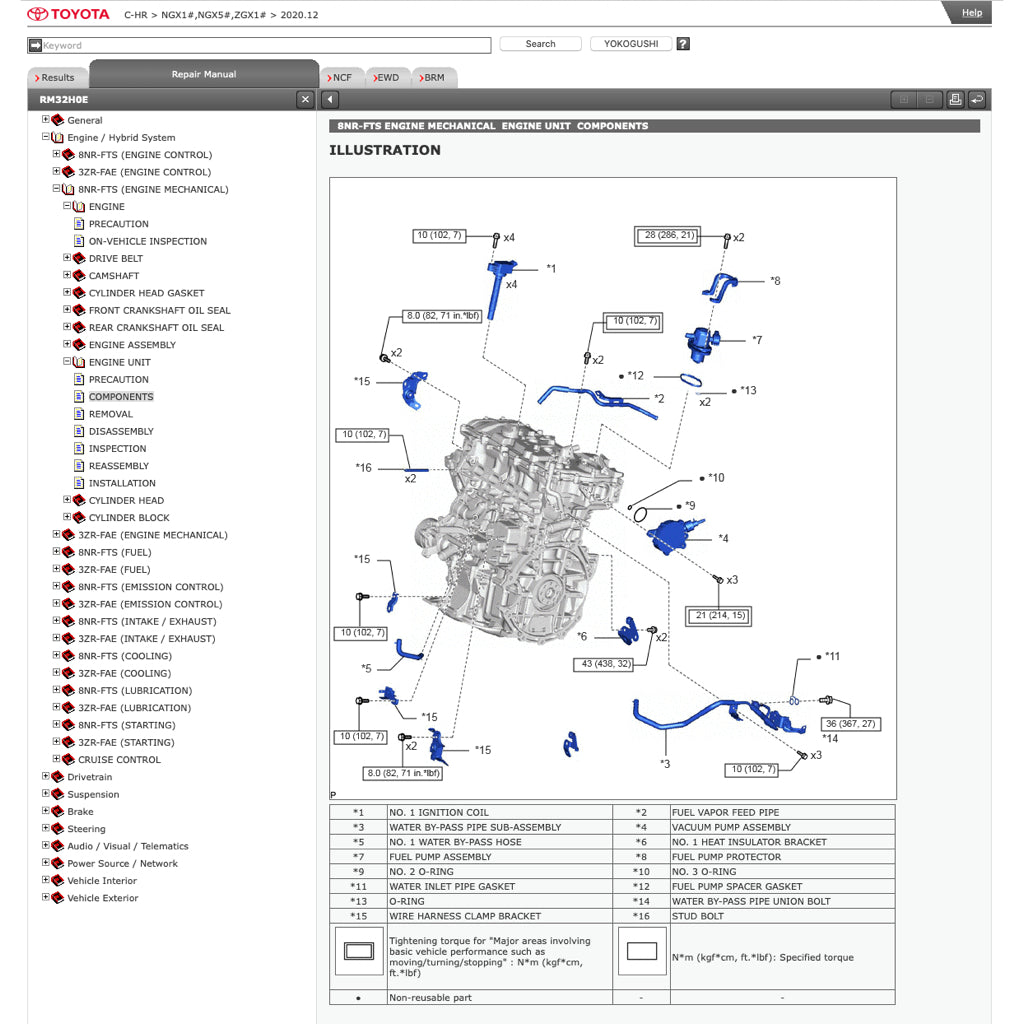

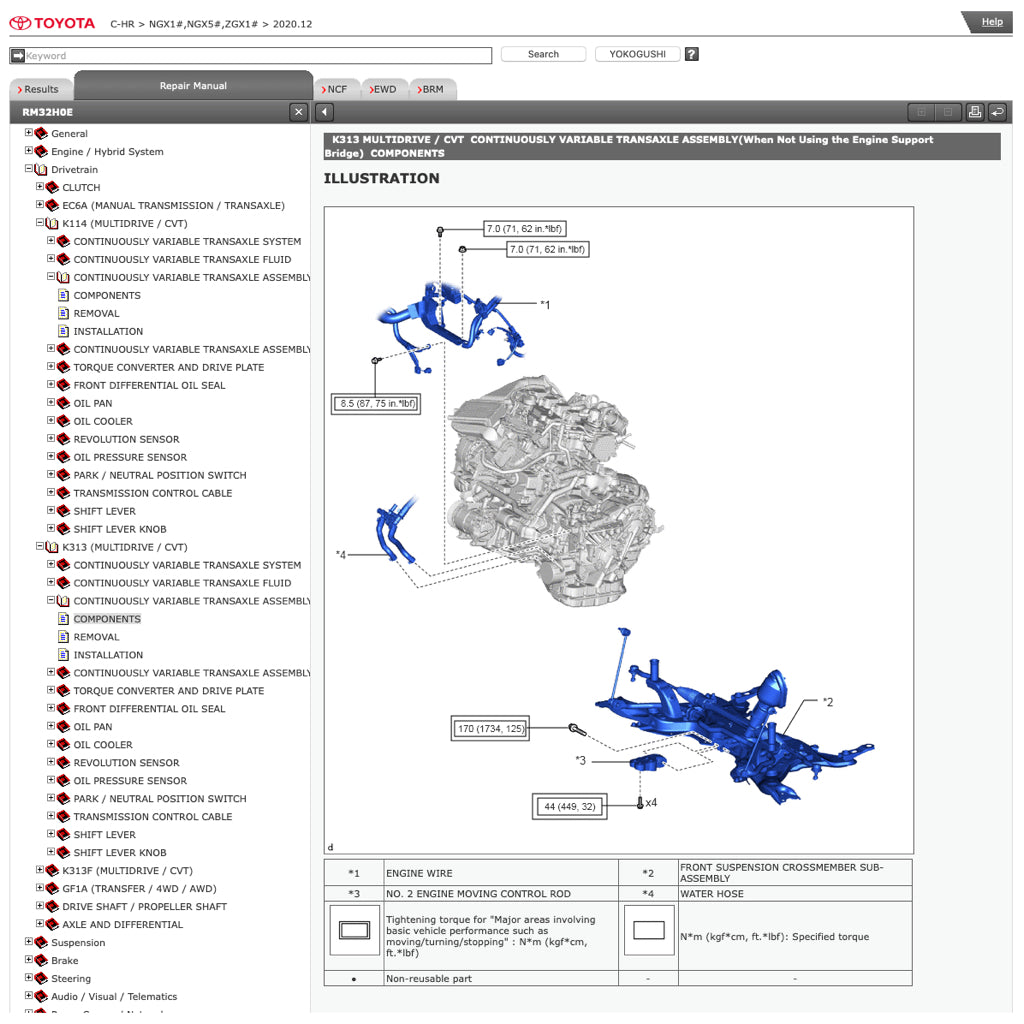

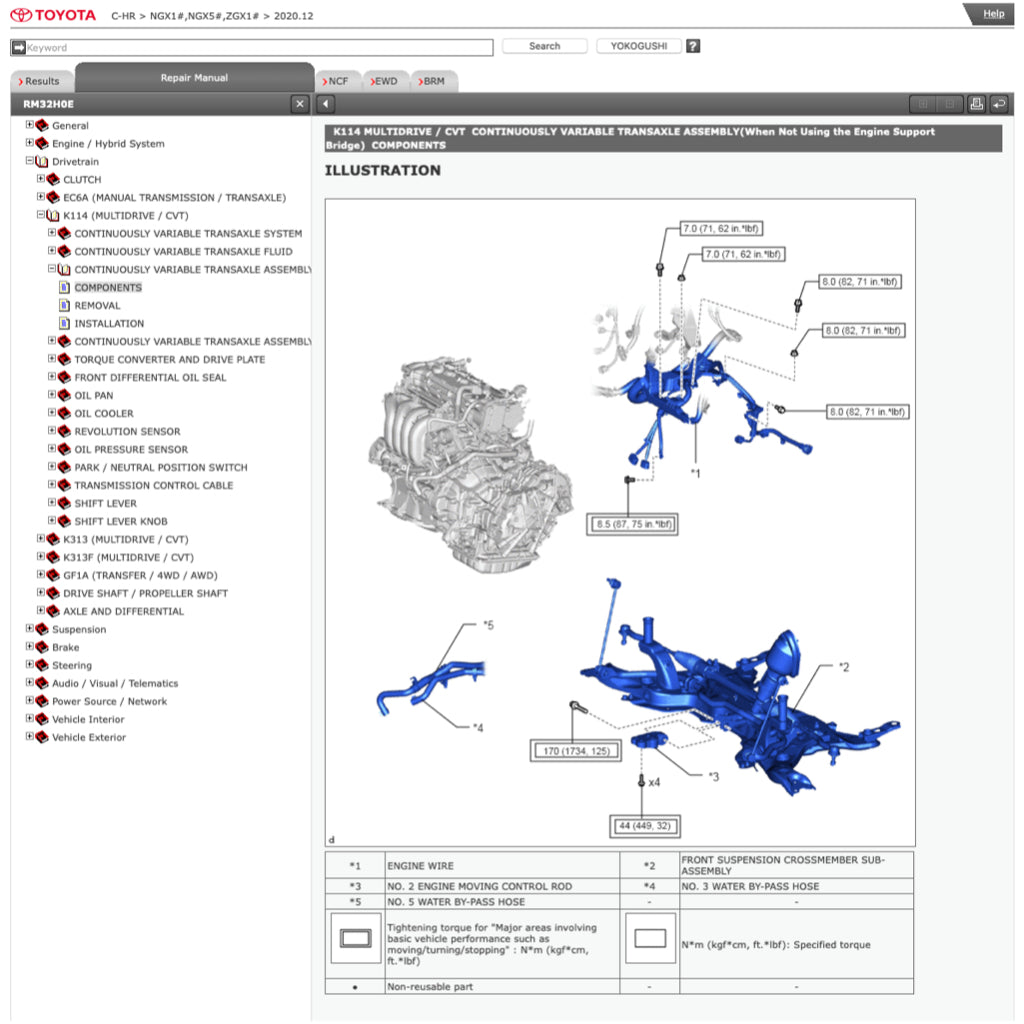

This is the same type of service manual your local TOYOTA dealer will use when doing a repair. This manual has detailed illustrations as well as step by step instructions. Using this repair manual is an inexpensive way to keep your vehicle working properly. Each manual provides step-by-step instructions based on the complete dis-assembly of the machine. It is this level of detail, along with hundreds of photos and illustrations, that guide the reader through each service and repair procedure.
ENGINE COVERED IN THIS MANUAL: 1.2 L 8NR-FTS VVT-iW turbo I4 & 2.0 L 3ZR-FAE I4
POWERTRAIN: Engine 1.2 L 8NR-FTS VVT-iW turbo I4 1.8 L 2ZR-FE I4 1.8 L 2ZR-FBE I4 2.0 L 3ZR-FAE I4 2.0 L M20A-FKS I4 1.8 L 2ZR-FXE I4 (H) 2.0 L M20A-FXS I4 (H) Electric motor 150 kW (201 hp; 204 PS) 4KM synchronous (C-HR/IZOA EV) Transmission 1.2L：6-speed manual (EG60) 1.2L&1.8L7-speed simulated CVT (K313) 1.8L&2.0LeCVT (hybrid) 2.0L：Direct Shift- CVT (K120) Hybrid drivetrain Power-split hybrid (C-HR Hybrid) Battery 1.3 kW·h Nickel–metal hydride (Hybrid) 54.3 kW·h lithium-ion (C-HR/IZOA EV)
