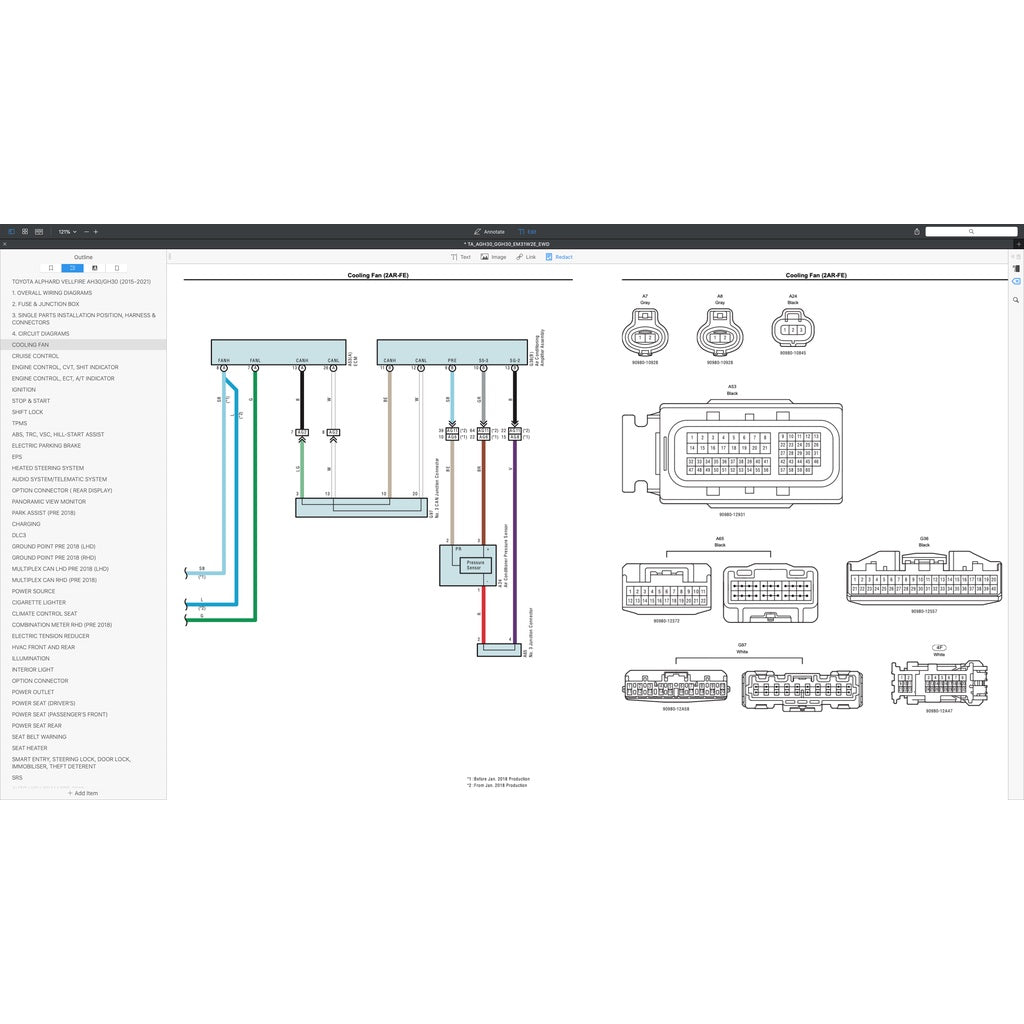

TOYOTA ALPHARD / VELLFIRE AGH30 / GGH30 (2015-2021) SYSTEMS WIRING DIAGRAMS + CONNECTORS + JUNCTION BLOCKS + RELAY LOCATION IN PDF FORMAT (2159 PAGES) SUPPLIED BOTH AS DOWNLOADABLE LINK AND PEN DRIVE SHIPPED.

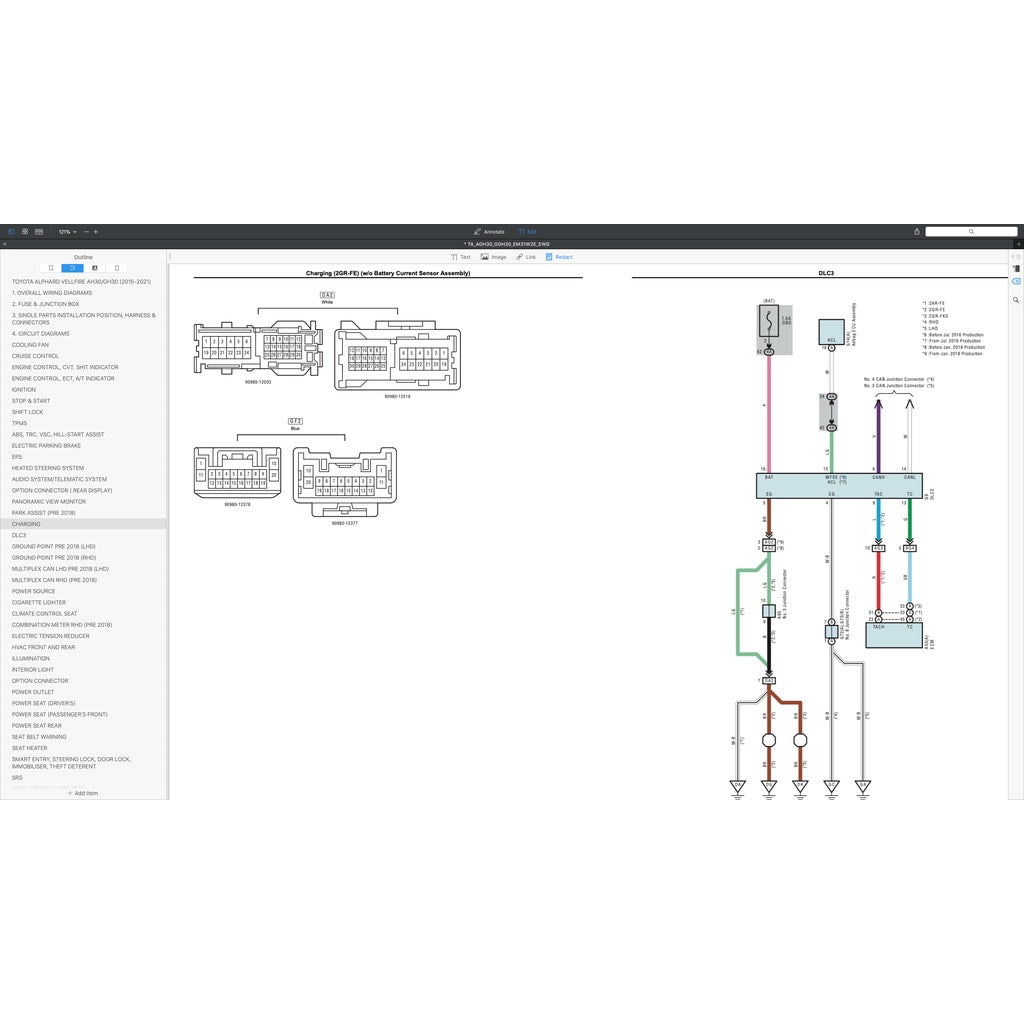

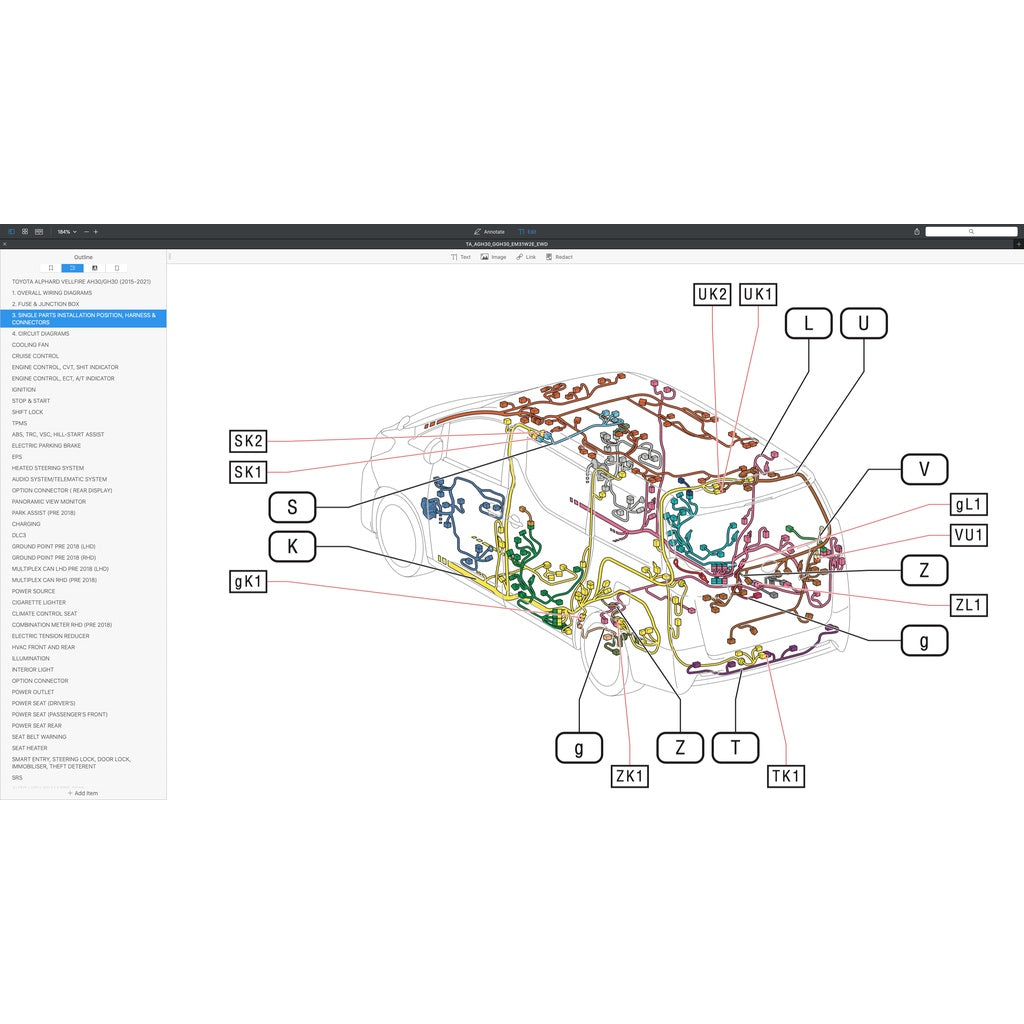

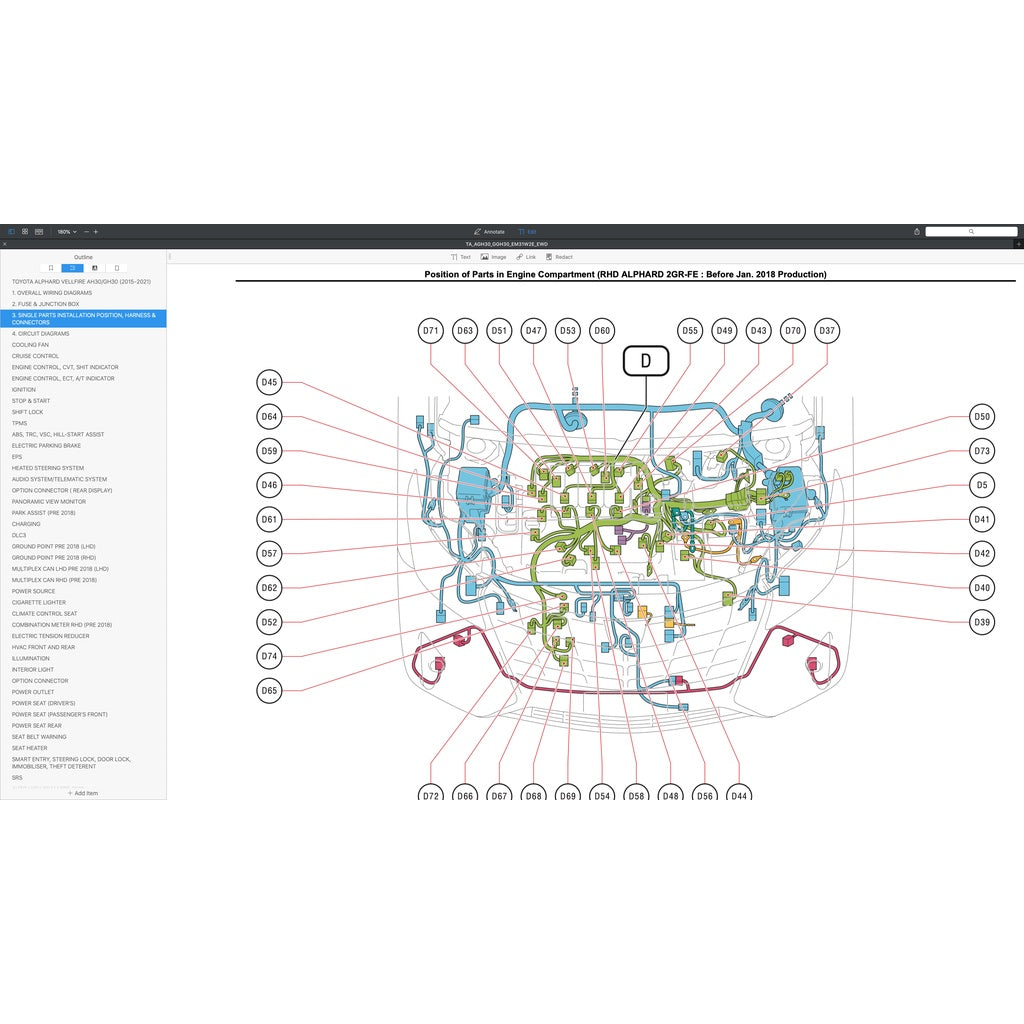

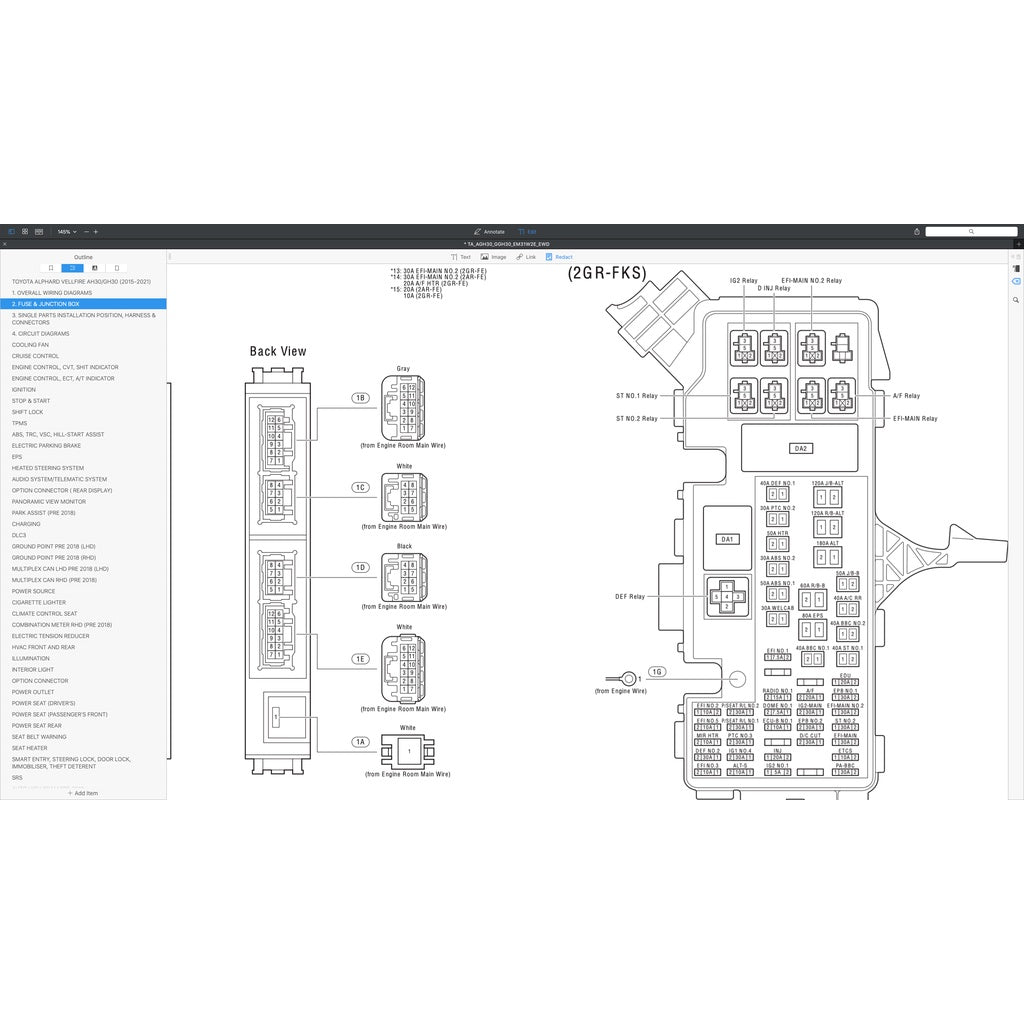

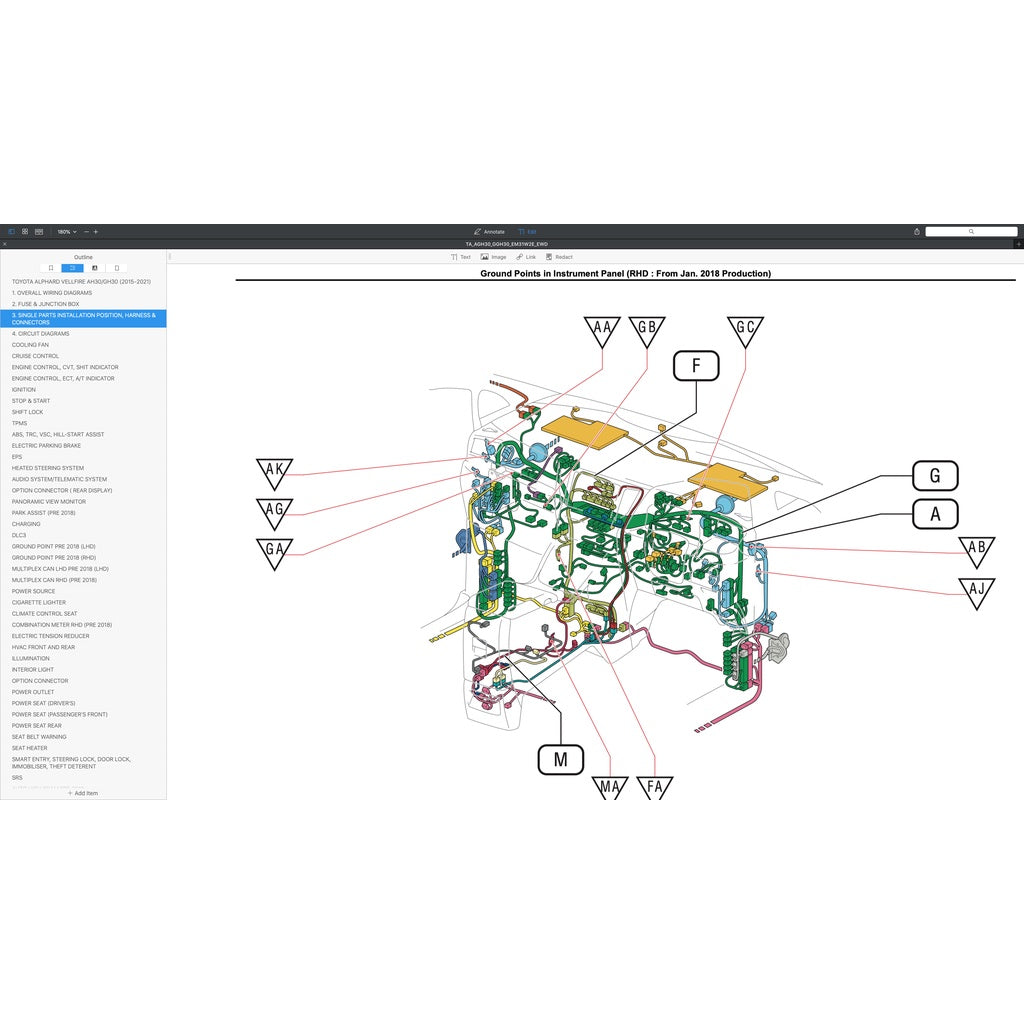

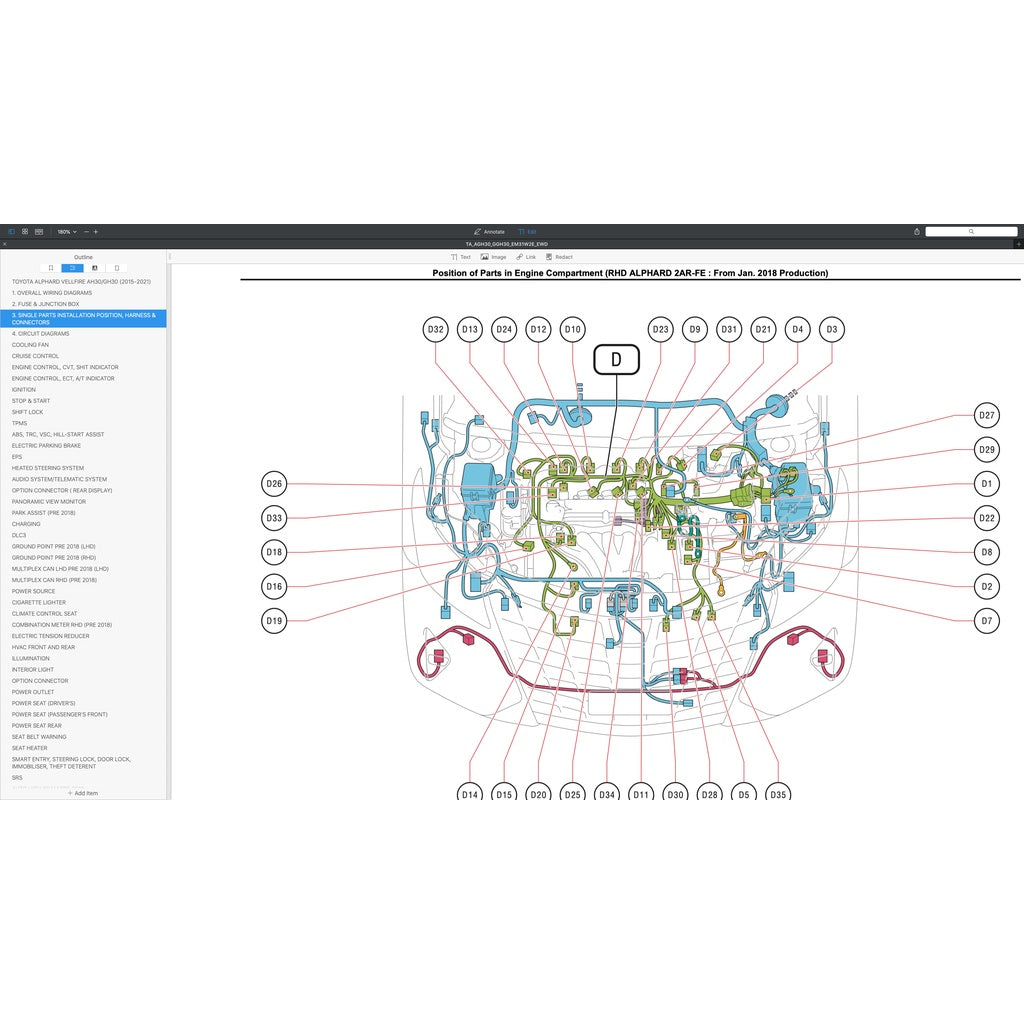

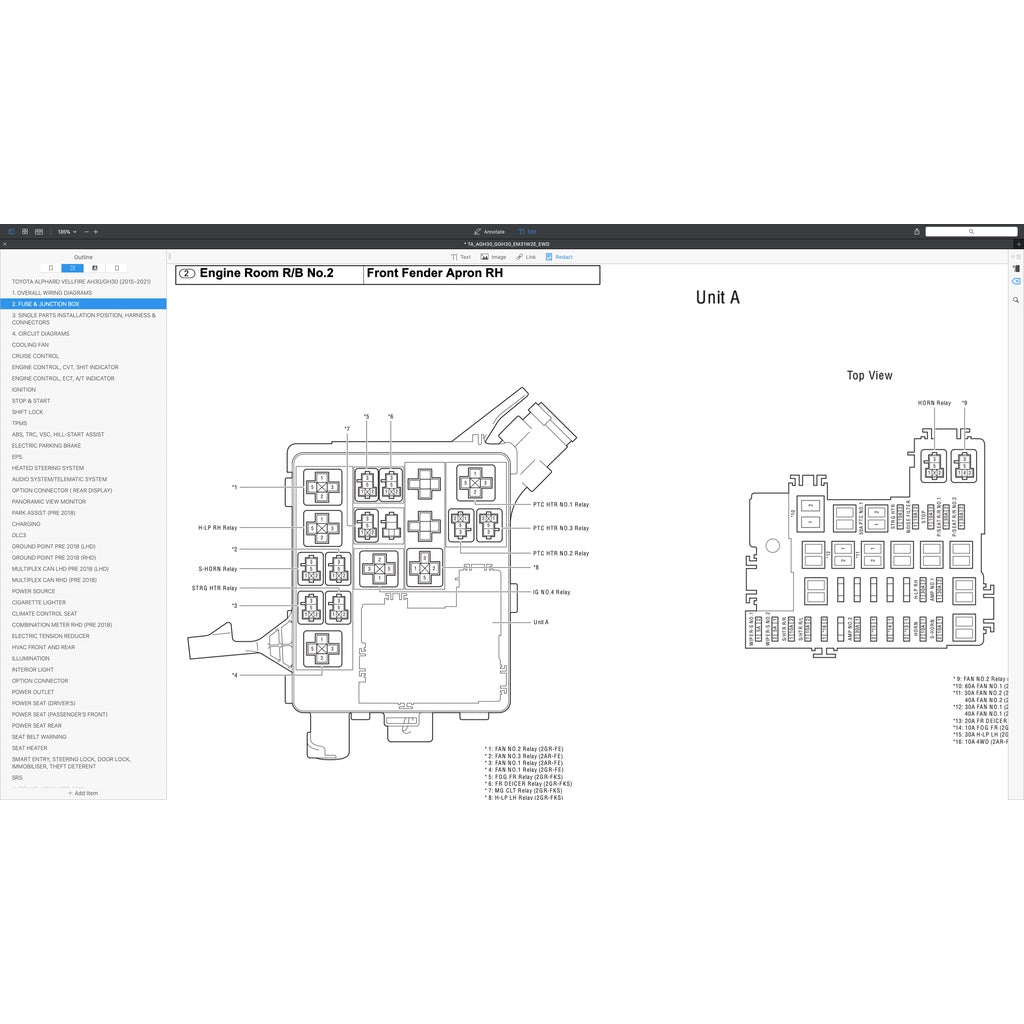

Complete wiring diagram for Toyota Alphard/Vellfire covering engine 2AR-FE/2GR-FE/2GR-FKS. This manuals include: - Wire routing - System wiring diagrams - Connectors - Relay location - Junction blocks - Fuse blocks
CAVEAT: NO ACAS
POWERTRAIN Engine 2.5 L 2AR-FE I4 3.5 L 2GR-FE V6 (2015–2017) 3.5 L 2GR-FKS V6 (2018–2021) Transmission 6-speed ATF U660E automatic (2GR-FE) 7-speed super CVT-i automatic 8-speed ATF UA80E automatic (2GR-FKS)
