SKODA FABIA II 5J (2007-2014) SERVICE WORKSHOP MANUAL

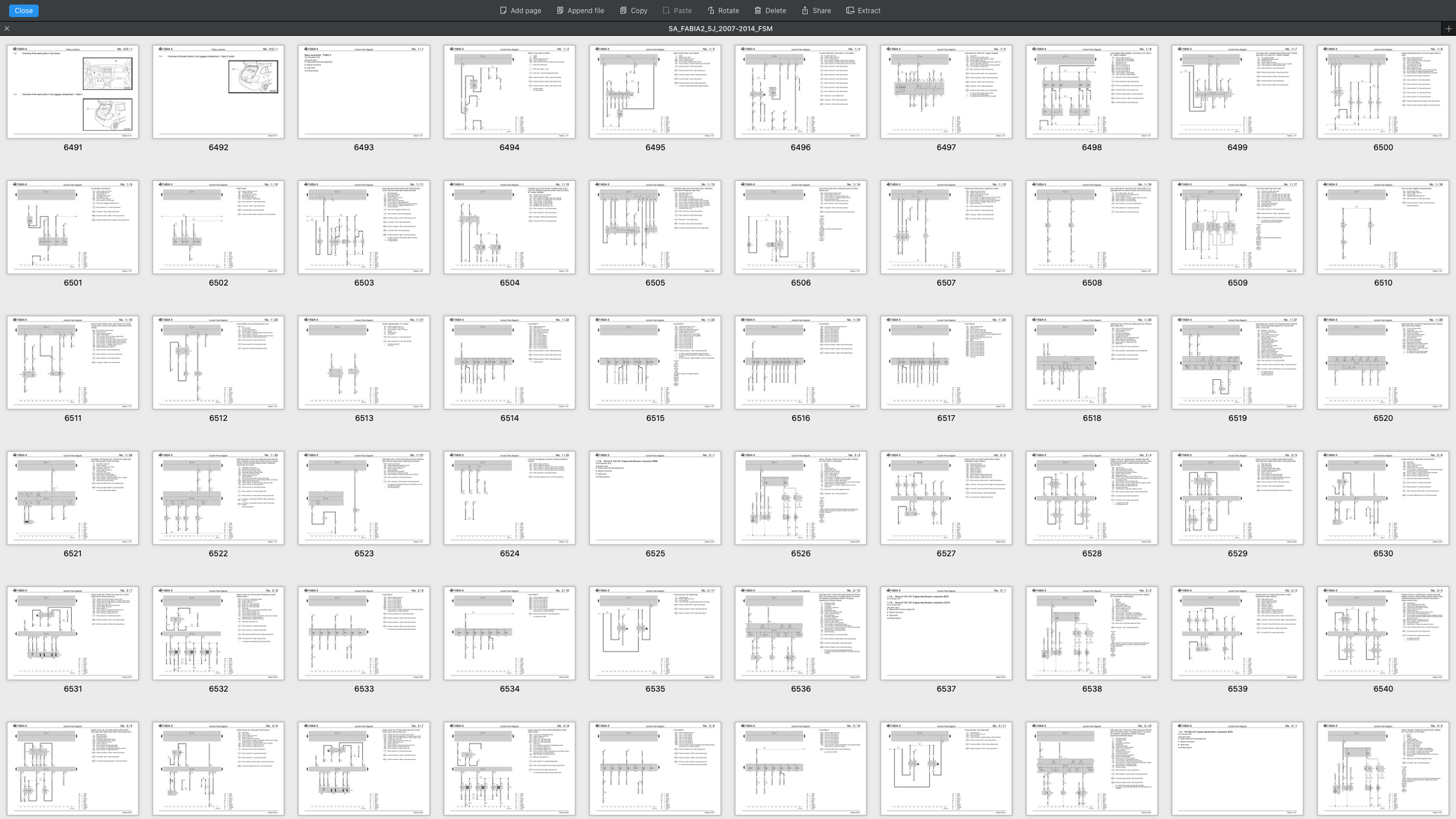

SKODA FABIA II 5J (2007-2014) SERVICE WORKSHOP MANUAL IN PDF FORMAT (14018 PAGES). THIS HIGH RESOLUTION DIGITISED MANUAL IS SUPPLIED AS DOWNLOADABLE LINK.

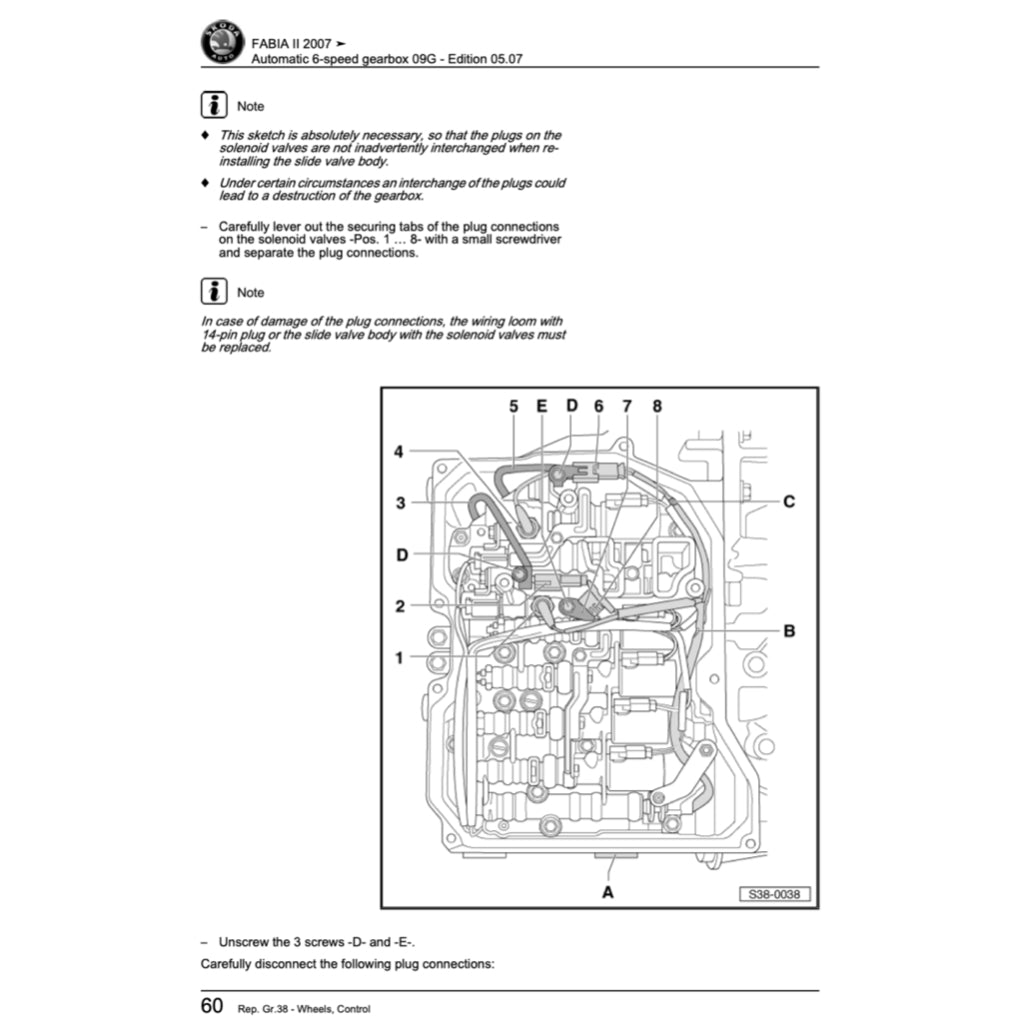

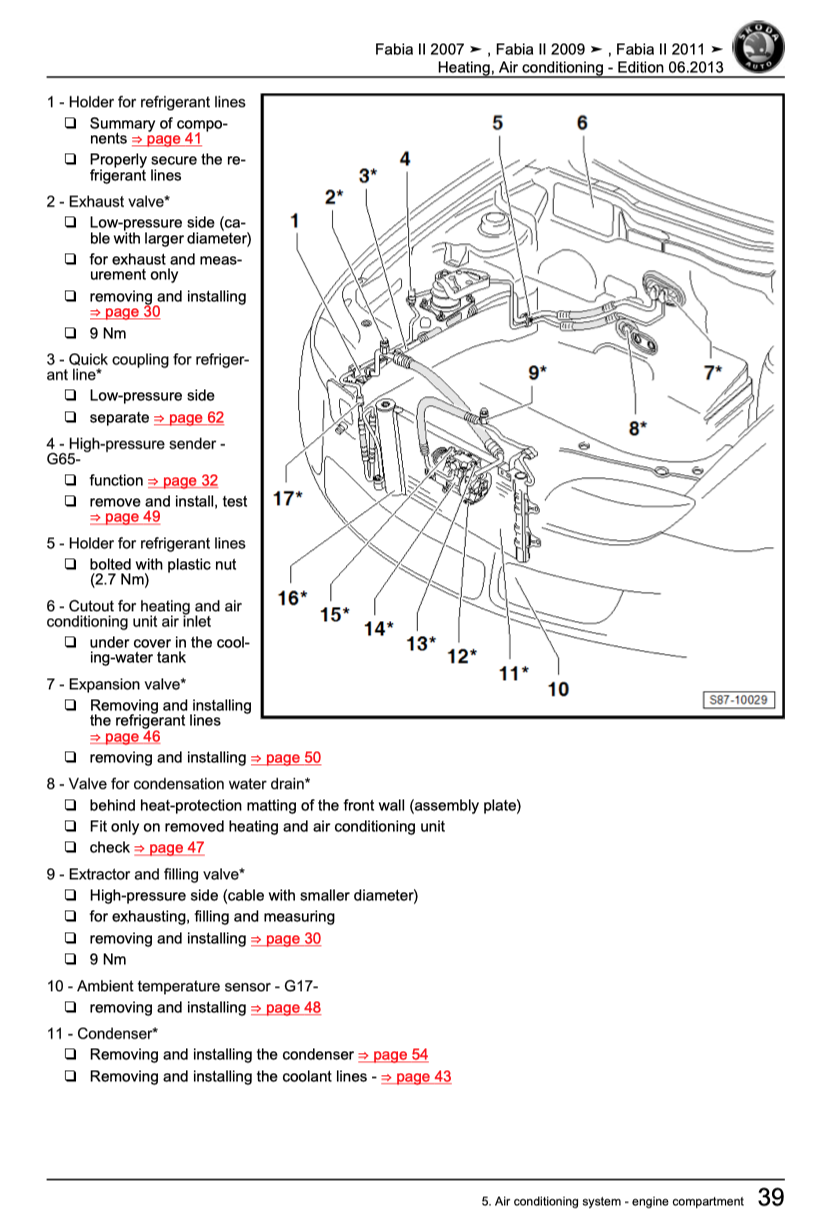

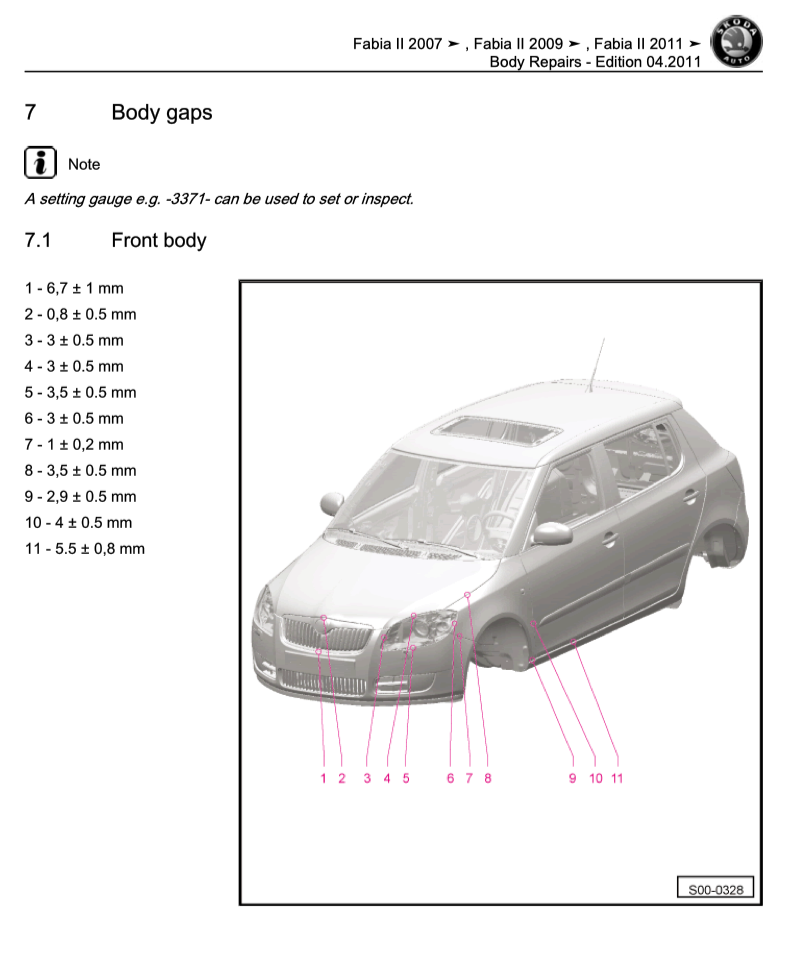

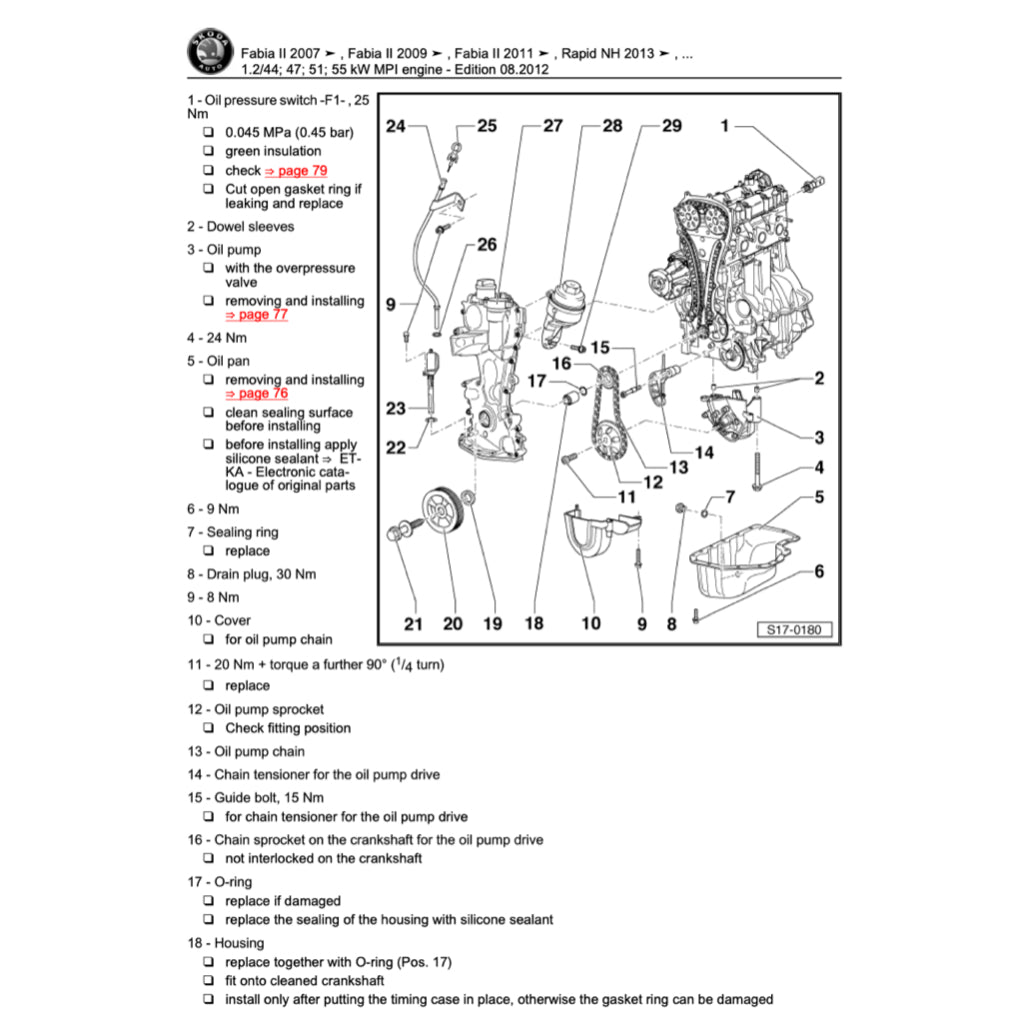

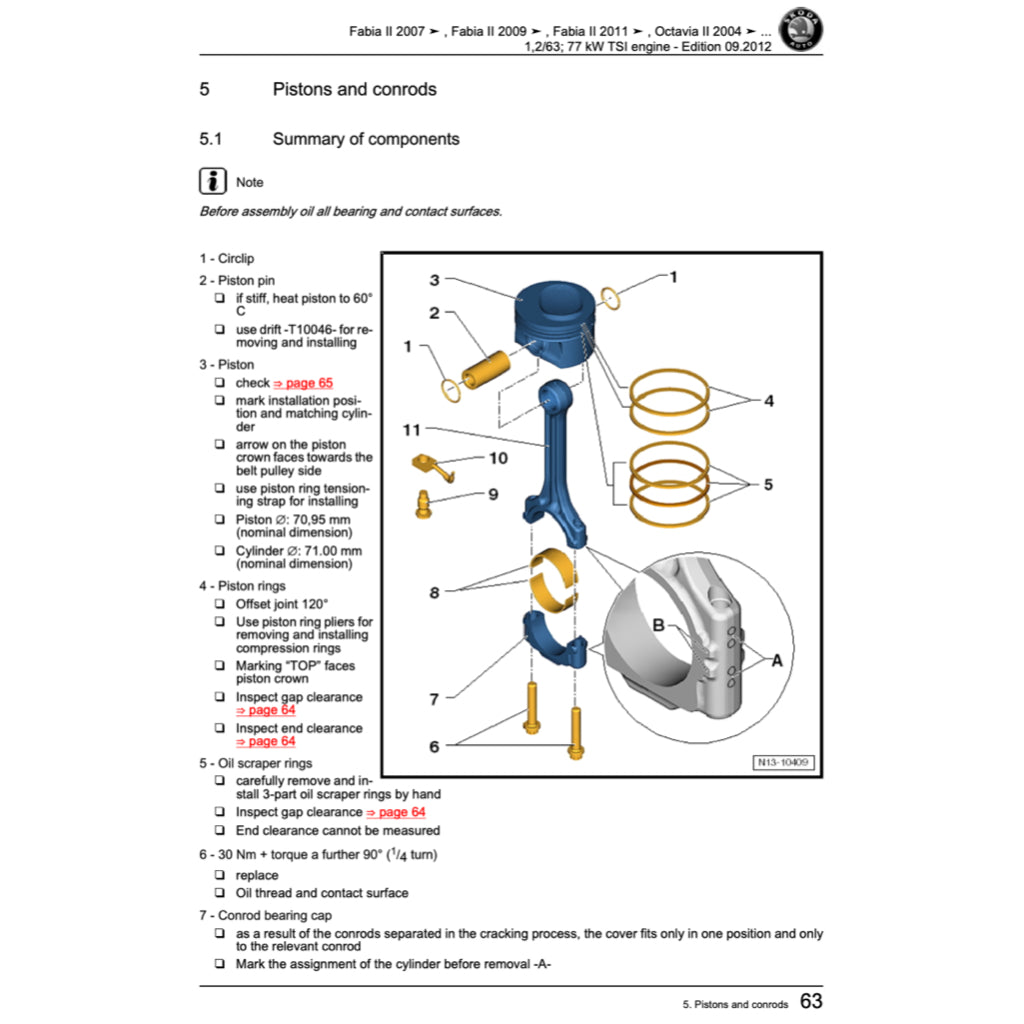

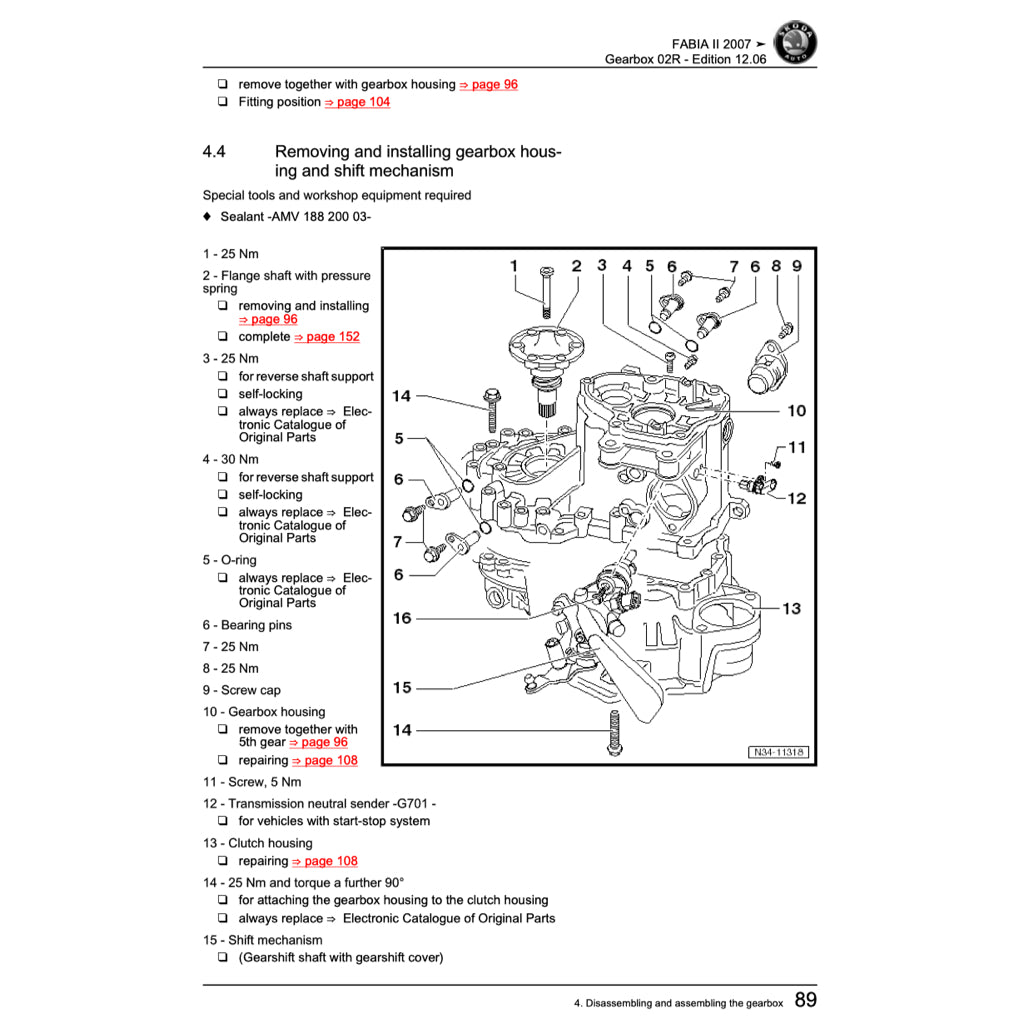

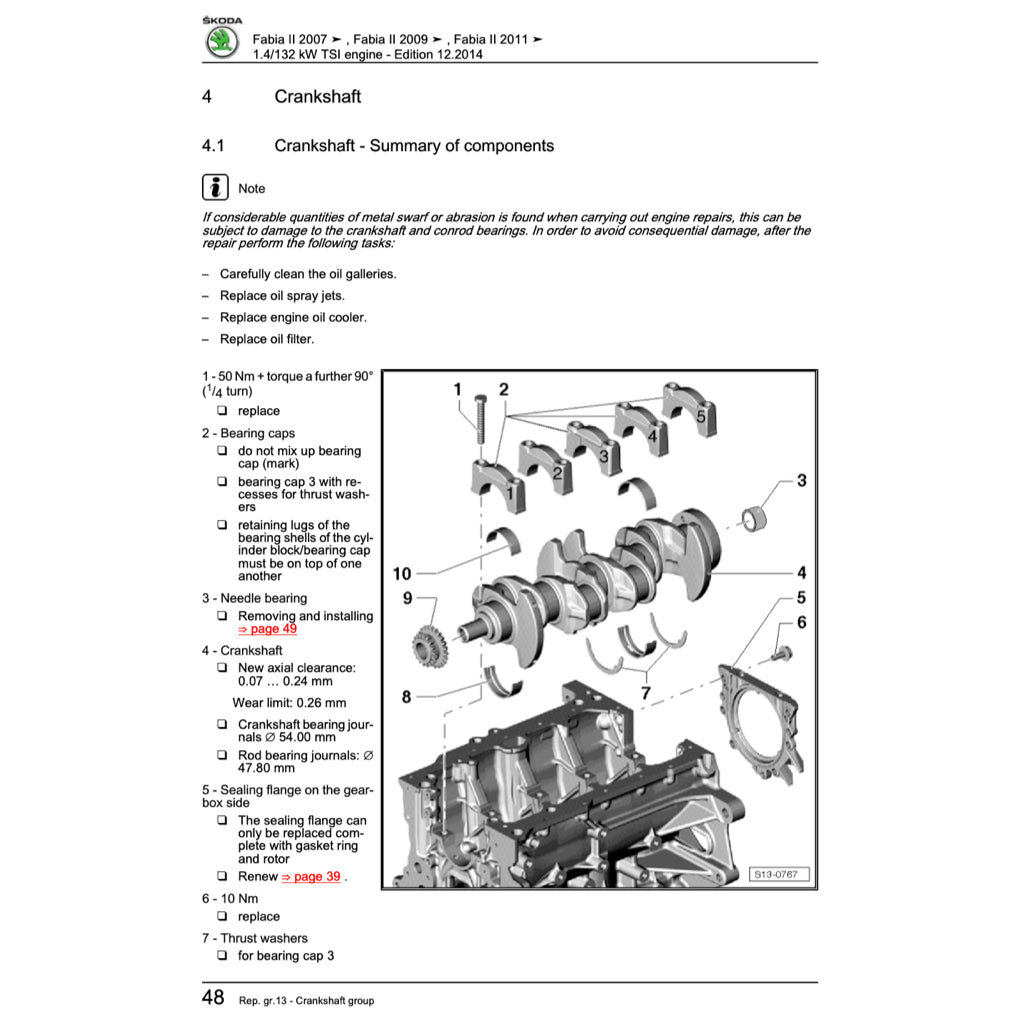

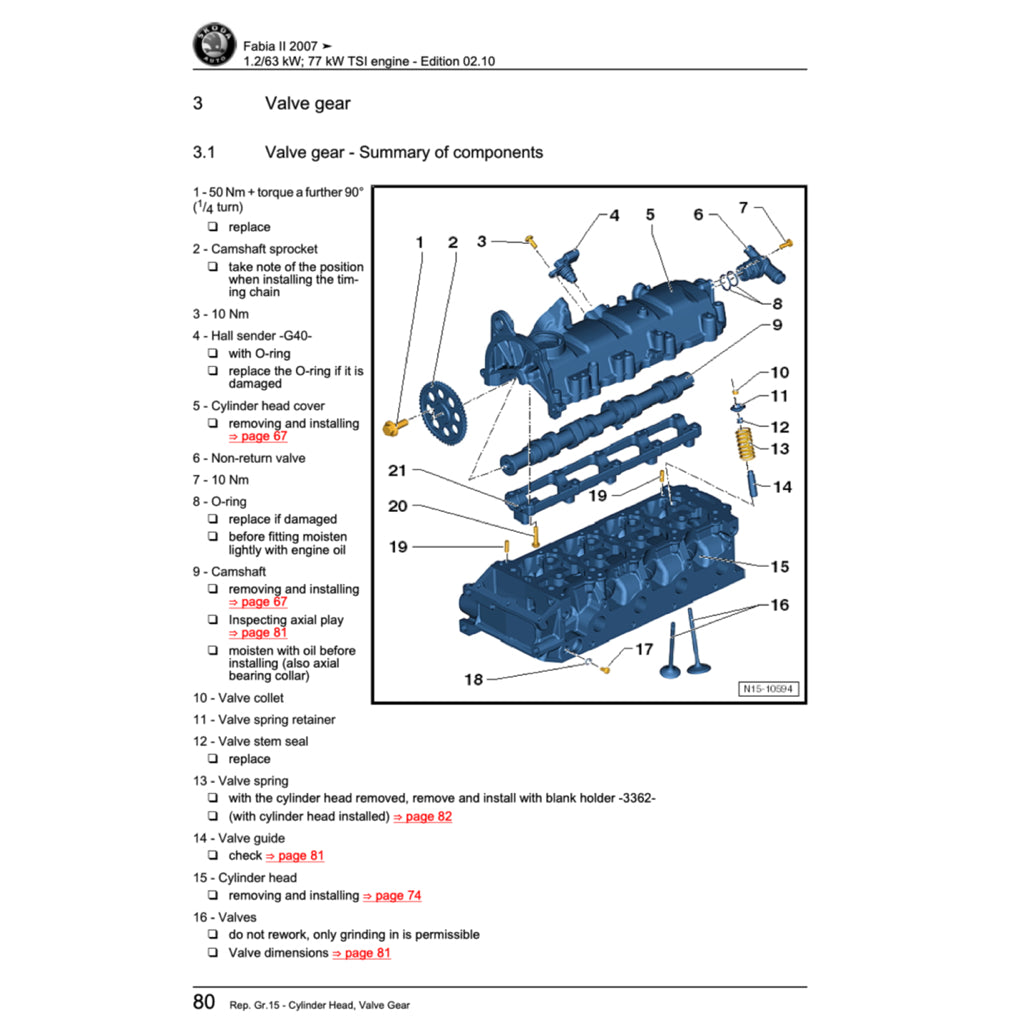

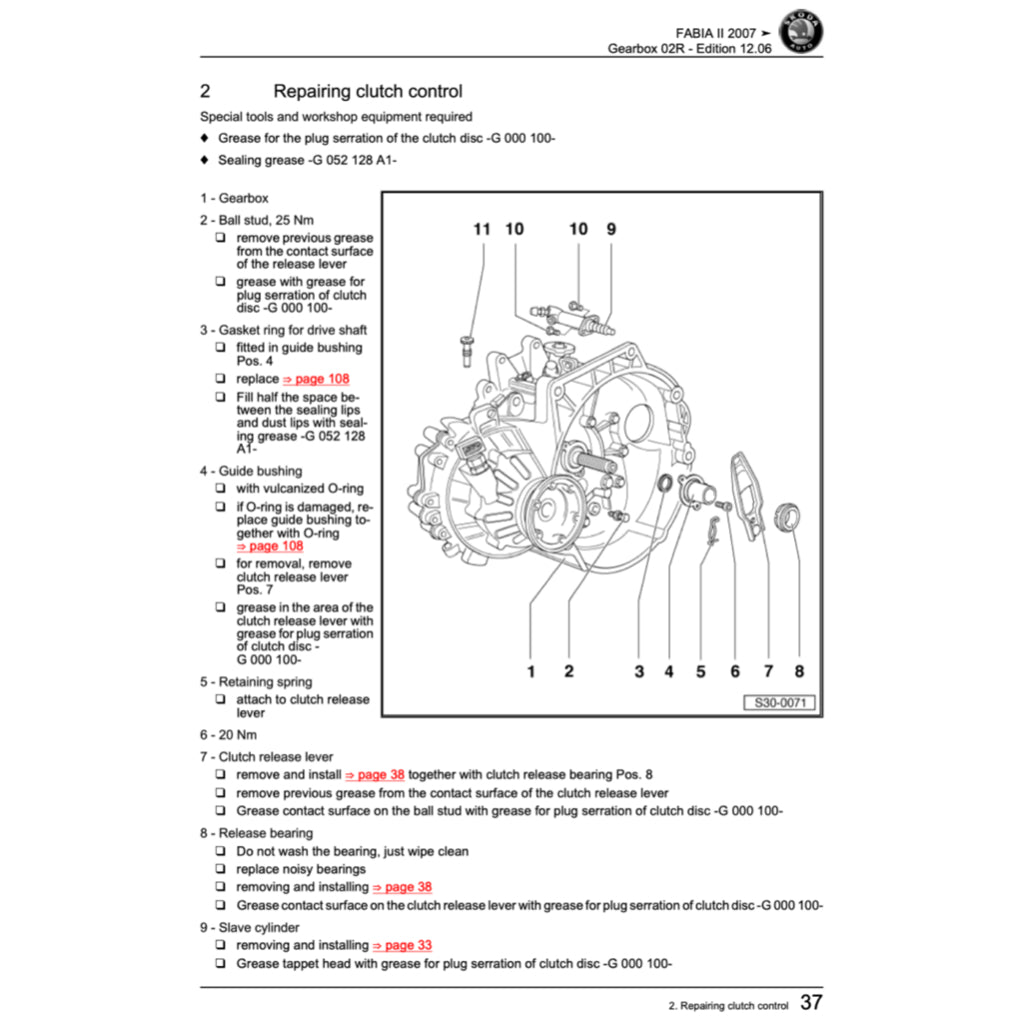

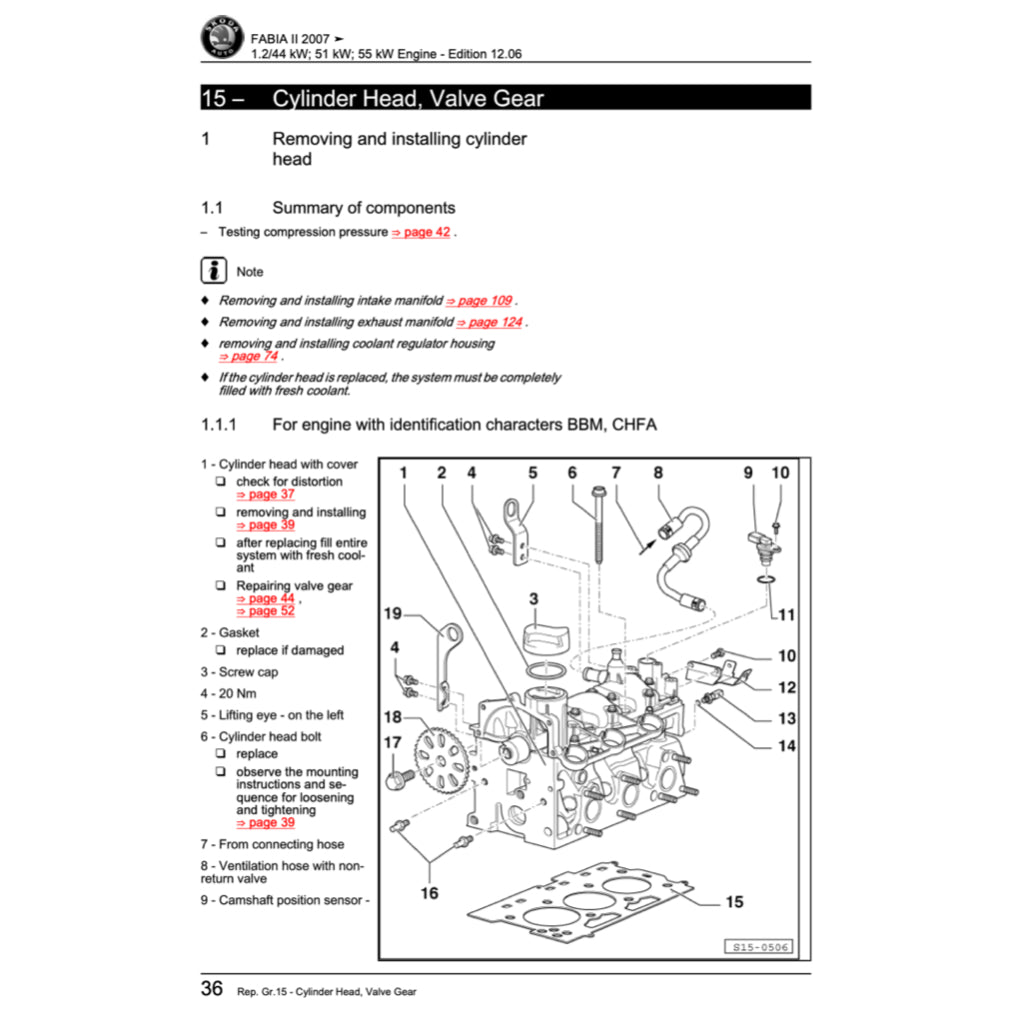

The manual covers Skoda Fabia II with engine Petrol and Diesel engines listed below. It is designed for seasoned mechanics given the high level of details and procedures involved. It goes in the smallest details of the Skoda Fabia II maintenance, servicing, repair, and trouble shooting and fault finding. It is riddled with high resolution graphic pictures and diagrams, charts and tables for easy reference.

REFERENCE POWERTRAIN

Engine

Petrol:

1.2 L EA111 MPI I3 6V

1.2 L EA111 MPI I3 12V

1.2 L EA111 I4 TSI 8V

1.4 L EA111 MPI I4 16V

1.4 L CAVE I4 16V TSI (vRS only)

1.6 L EA111 MPI I4 16V

Diesel:

1.2 L EA189 I3 12V TDI CR

1.4 L BNM I3 6V TDI PD

1.4 L BNV I3 6V TDI PD

1.6 L CAYA I4 TDI CR

1.6 L CAYB I4 TDI CR

1.6 L CAYC I4 TDI CR

1.9 L BSW I4 TDI PD

Transmission

5-speed manual

6-speed manual

6-speed automatic

7-speed automatic DSG
