PRIUS TOYOTA PRIUS ZVW 30 (2009-2015) SERVICE WORKSHOP MANUAL

TOYOTA PRIUS ZVW 30 (2009-2015) FACTORY SERVICE WORKSHOP MANUAL IN PDF FORMAT (8000 PAGES) + TOYOTA GSIC ONLINE MANUAL AVAILABLE AS DOWNLOADABLE LINK.

THIS MANUAL FEATURES THE PRIUS XW30 MODEL EQUIPPED WITH ENGINE 1.8 L 2ZR-FXE I4 VVT-i. INCLUDES THE FULL REPAIR MANUAL (8000 PAGES), THE COMPLETE WIRING DIAGRAM (466 PAGES) AND THE TOYOTA GSIC ONLINE MANUAL

POWERTRAIN
Engine: 1.8 L 2ZR-FXE I4 VVT-i

Electric Motors: 60 kW (80 hp)
Transmission: 1-speed planetary gear
Hybrid drivetrain:Power-split Hybrid
Battery: 1.3 kWh Nickel-metal hydride

WHAT'S INSIDE ?
        Detailed sub-steps expand on repair procedure information
        Notes, cautions and warnings throughout each chapter pinpoint critical information.
        Numbered instructions guide you through every repair procedure step by step.
        Bold figure number help you quickly match illustrations with instructions.

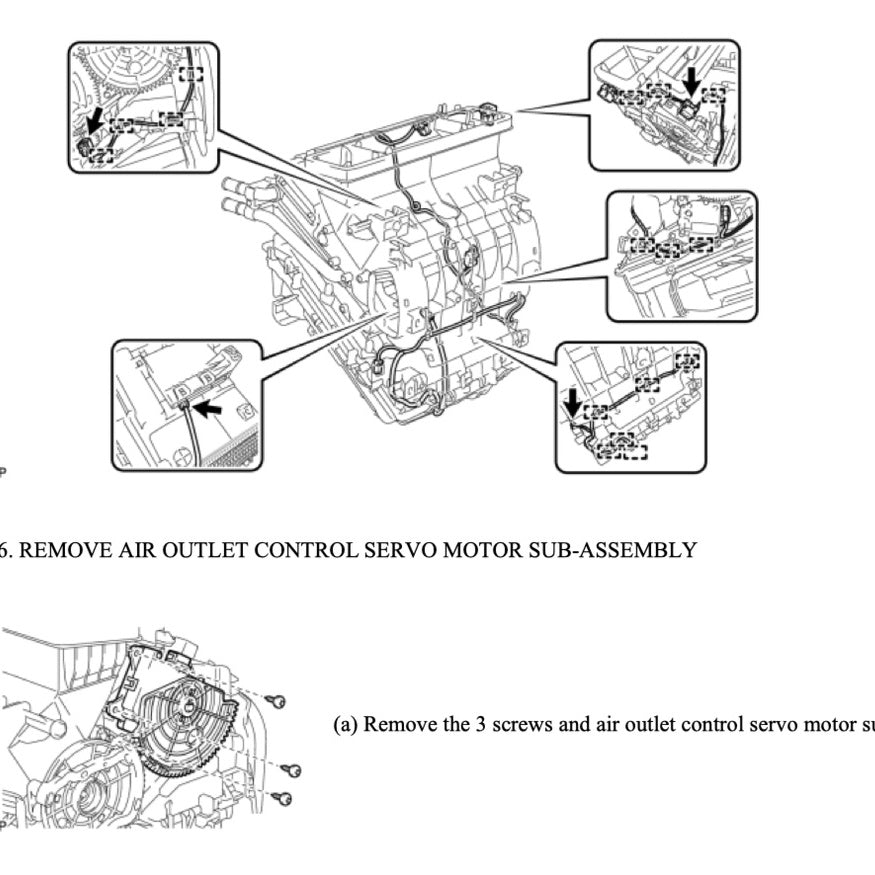

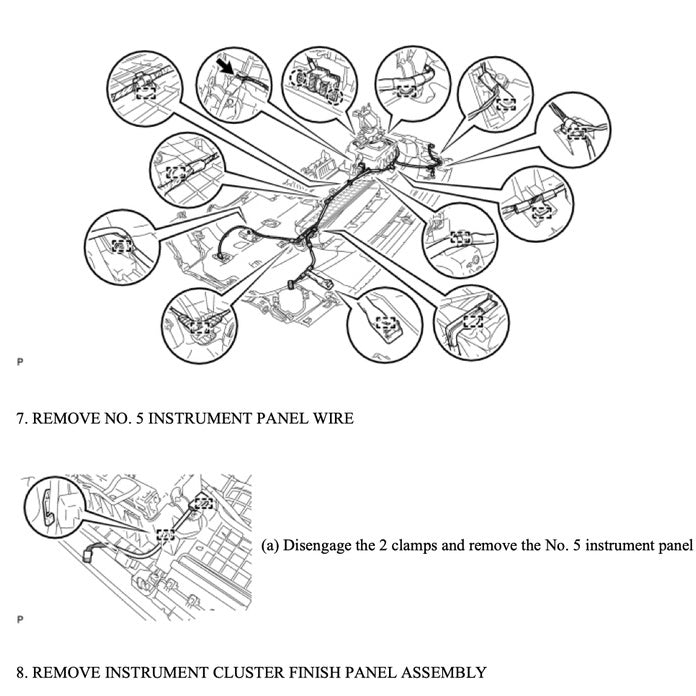

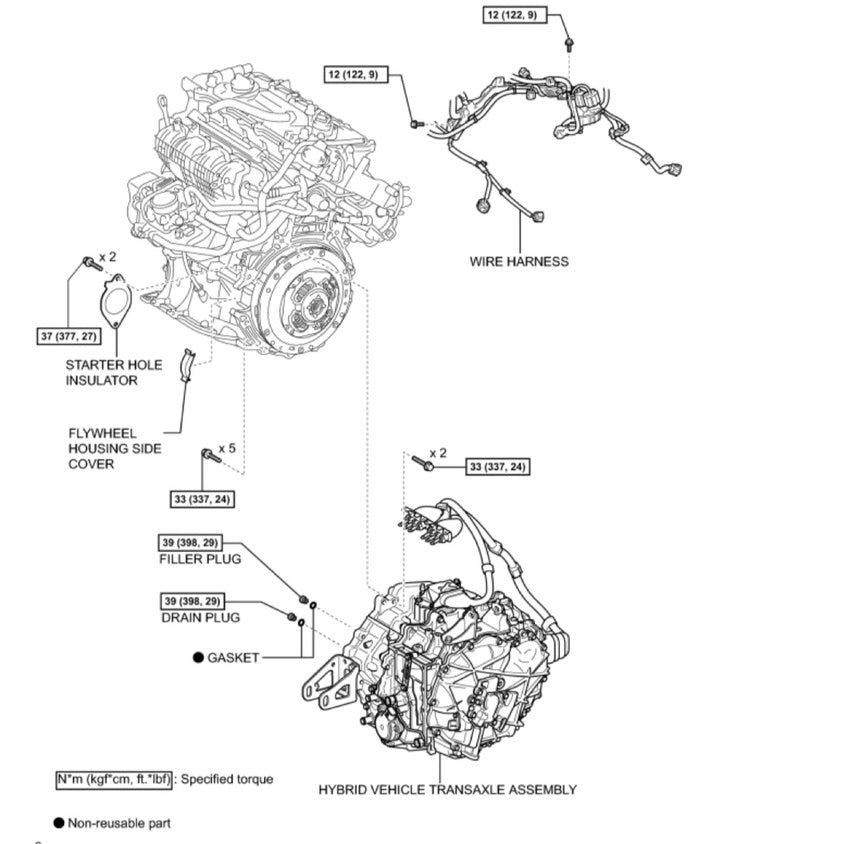

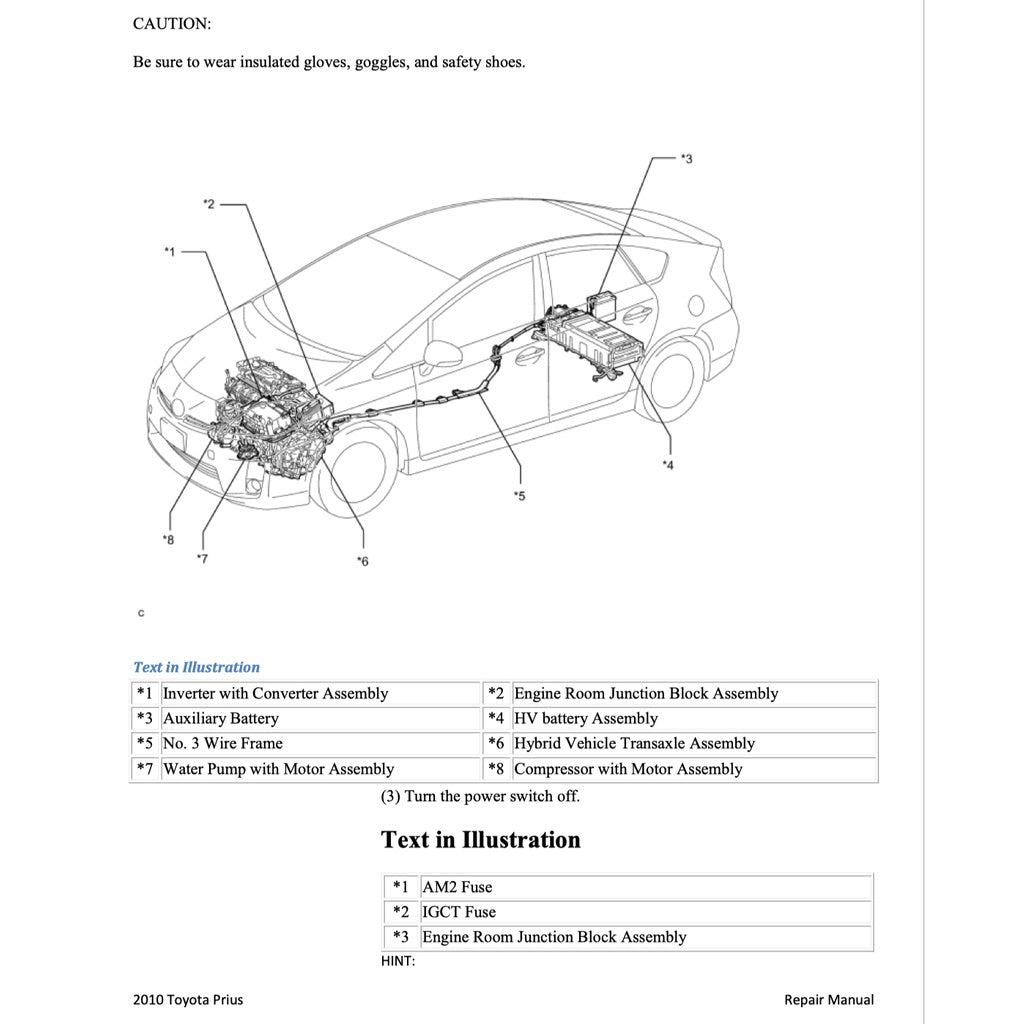

        Detailed illustrations, drawings and photos guide you through every procedure.
        Enlarged inset helps you identify and examine parts in detail.
        Numbered table of contents easy to use so that you can find the information you need fast.
        This manual also makes it easy to diagnose and repair problems with your machines electrical system.

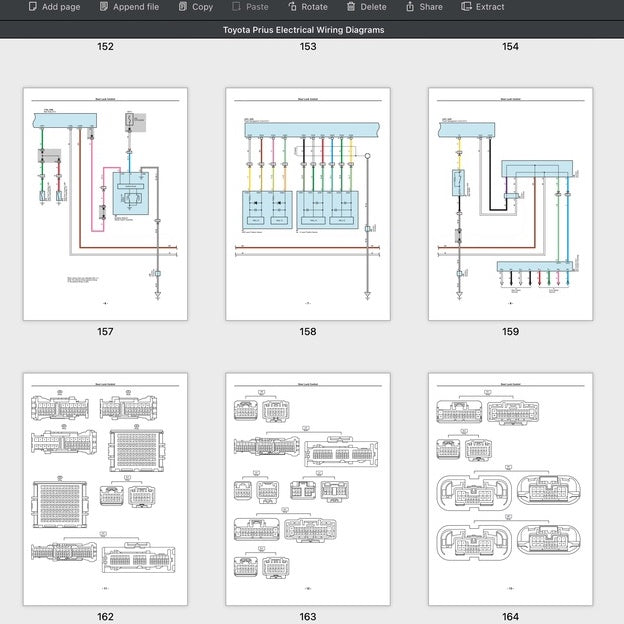

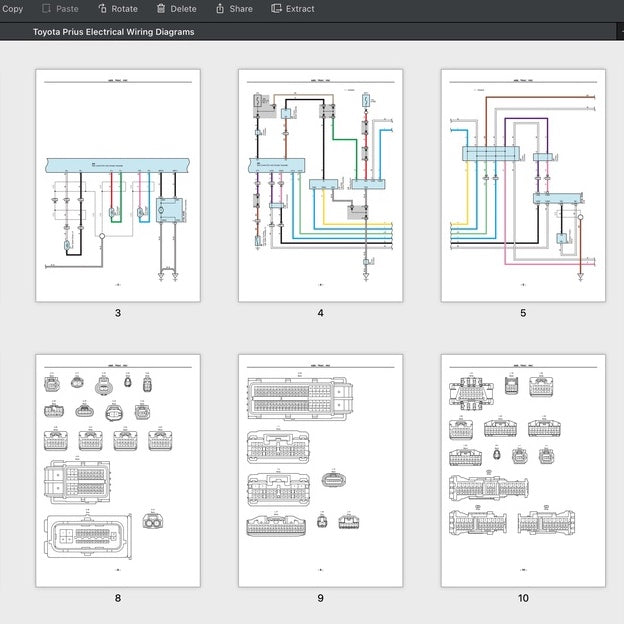

        Troubleshooting and electrical service procedures are combined with detailed wiring diagram for ease of use.
