MINI COOPER S R50 R52 R53 JCW (2001-2006) WORKSHOP SERVICE REPAIR MANUAL

WORKSHOP REPAIR SERVICE MANUAL BOOK FOR MINI R50 R52 R53 (2001-2006) IN PDF FORMAT (1075 PAGES) AVAILABLE BOTH AS DOWNLOADABLE LINK AND ON PEN DRIVE SHIPPED.

This is a comprehensive source of service information and specifications for MINI Cooper/S/JCW models from 2002 to 2006 (Gen1). The aim throughout this manual has been simplicity, clarity and completeness, with practical explanations, step-by-step procedures and accurate specifications. Whether you're a professional or a do-it-yourself MINI owner, this manual will help you understand, care for and repair your car.

ENGINES:
Cooper: 1.6L normally aspirated engine
Cooper S: 1.6L supercharged engine
TRANSMISSION:
Cooper: Manual 5-speed transmission (Midlands, Getrag) & Automatic continuously variable transmission (CVT)
Cooper S: Manual 6-speed transmission (Getrag) & Automatic with Agitronic (Aisin)

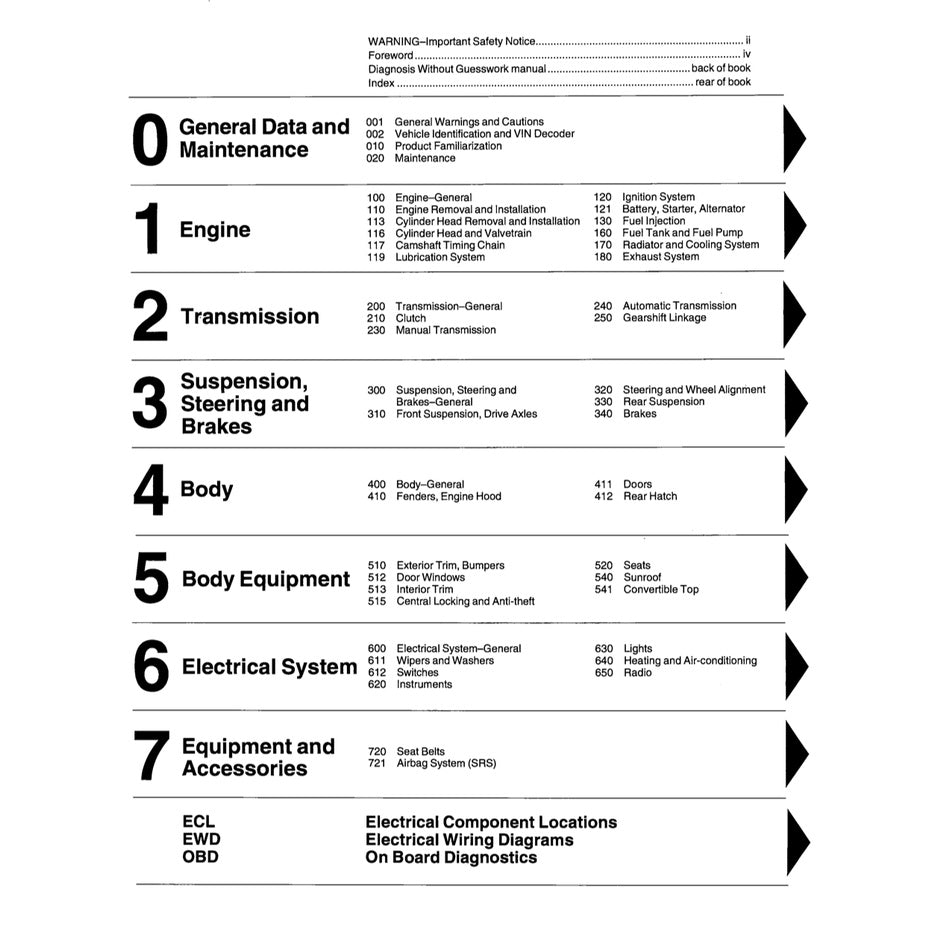

WHAT'S INSIDE?

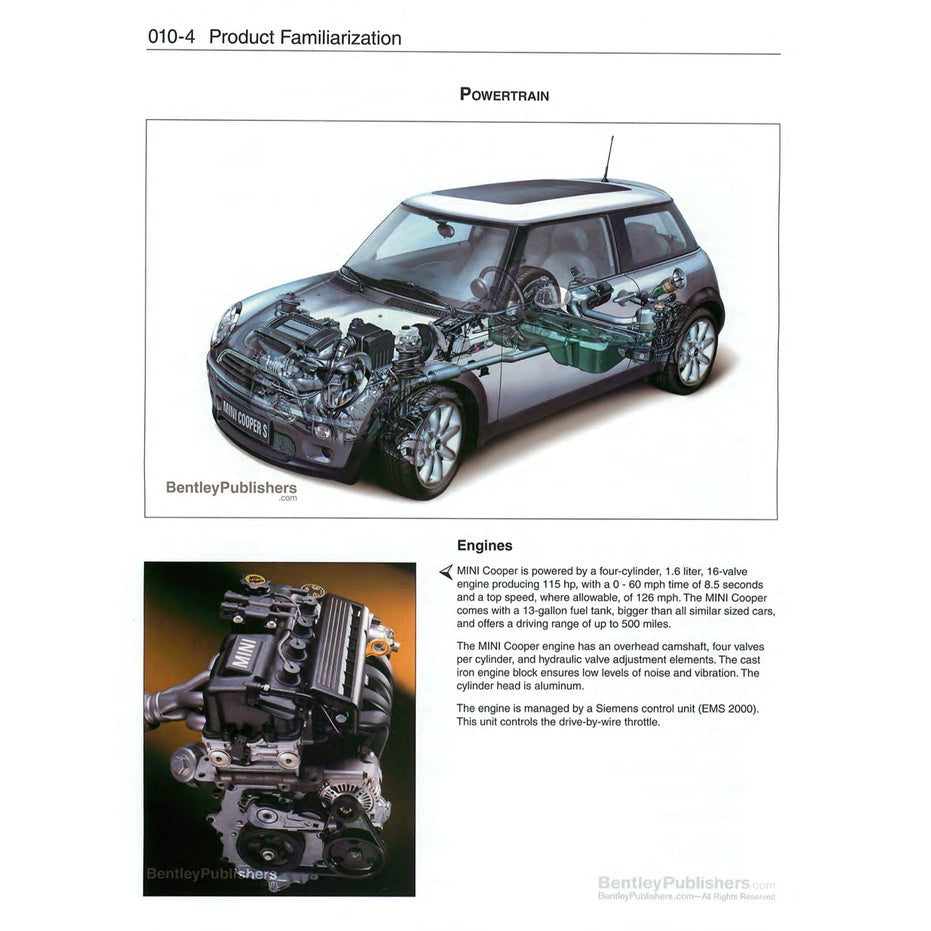

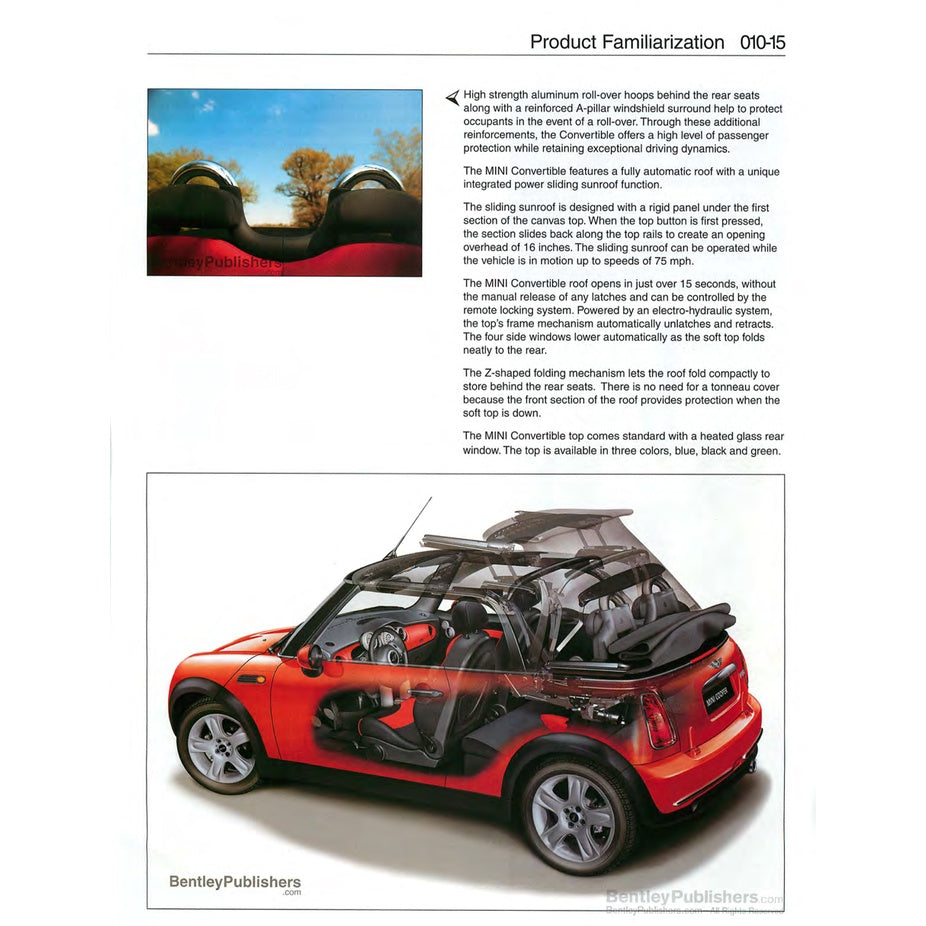

- 16 page full color MINI familiarization section
- Procedures for everything from basic oil change service to interpreting the Malfunction Indicator Light (MIL).

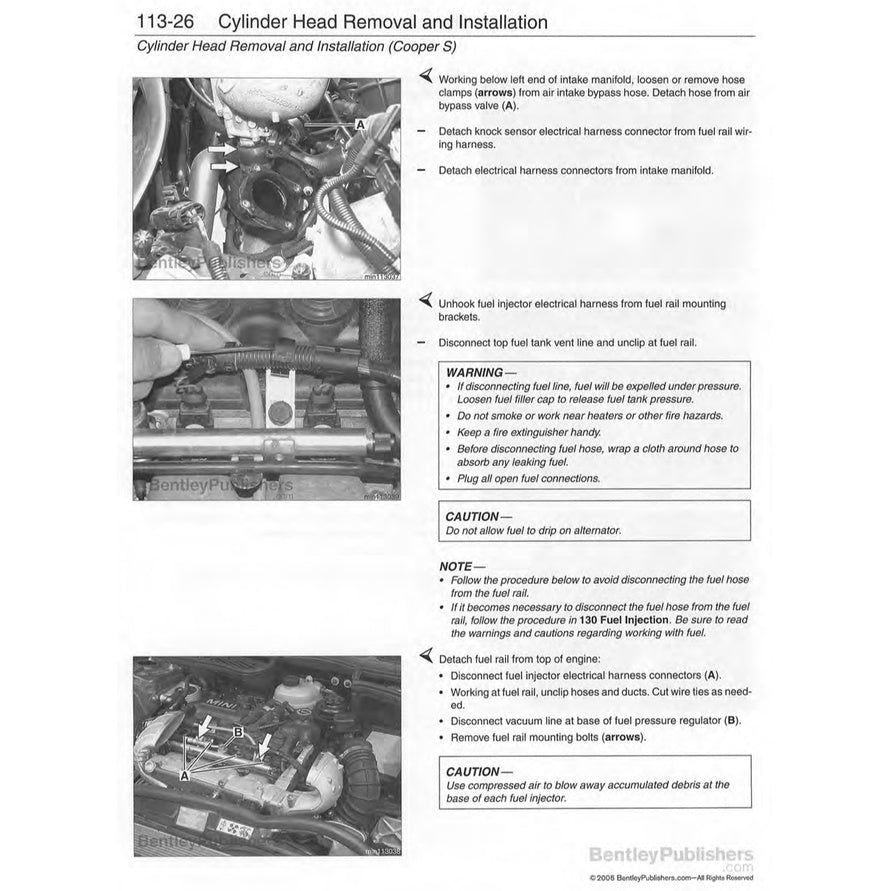

- Engine and cylinder head service, including camshaft timing chain setup and adjustment.

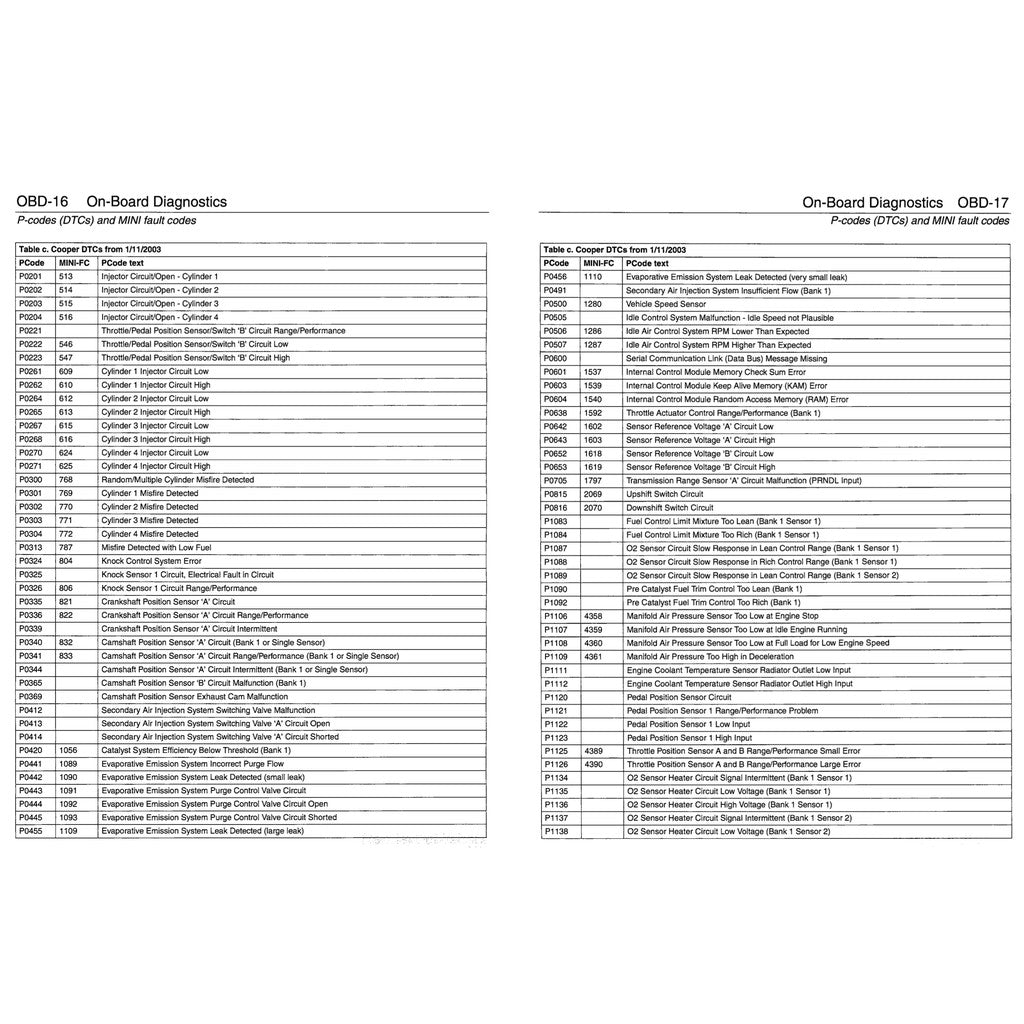

- Information for specific driveability problems, including explanation of the engine management system and OBD II diagnostic trouble codes (DTCs)
- Theory of operation and repair information for the EMS2000 engine management system.
- Supercharger and intercooler information, including component removal and replacement (Cooper S)

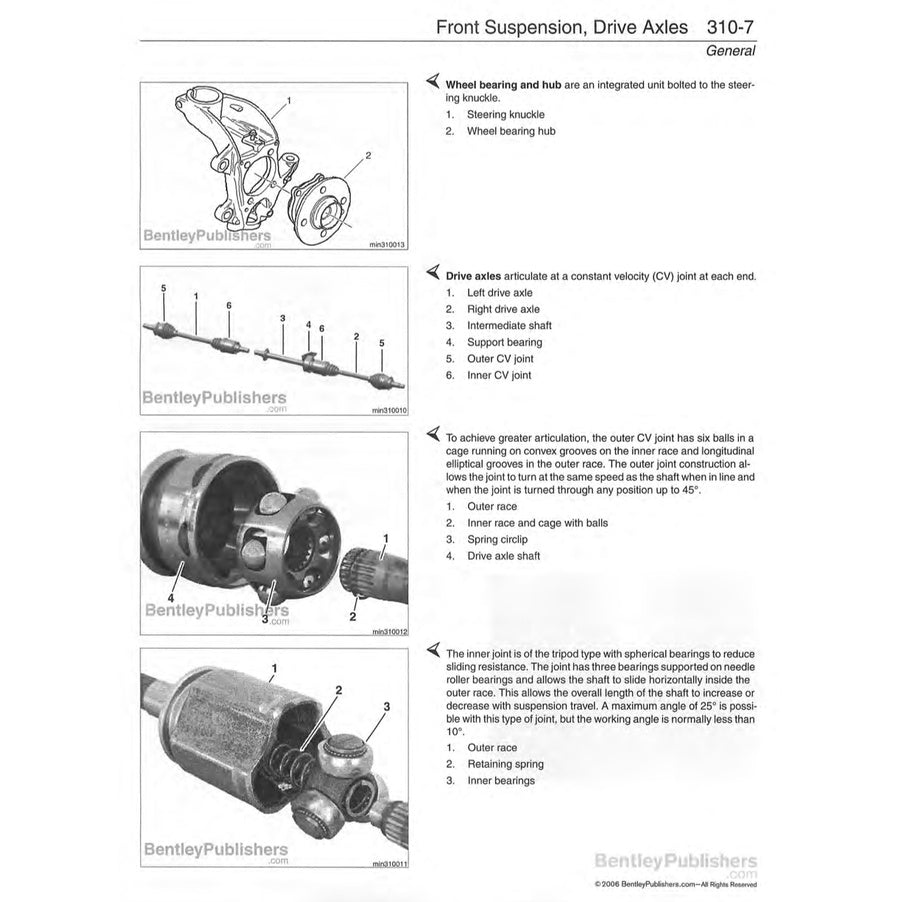

- Drivetrain maintenance, including troubleshooting, adjustment and repair of clutch, gearshift linkage and drive axles.

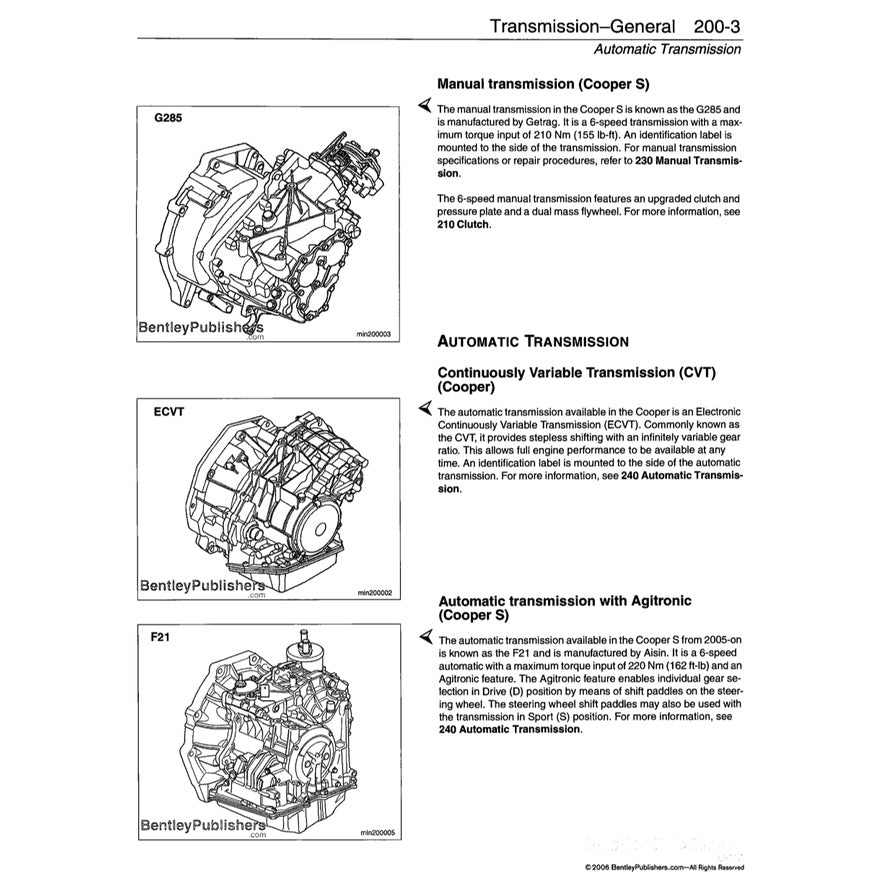

- Manual and automatic transmission removal, installation, seal replacement and external service.
- System description and repair information for Antilock Brakes (ABS), Automatic Stability Control (ASC) and Dynamic Stability Control (DSC).
- Heating and air conditioning repair (IHKS / IHKA), including component replacement.
- Body adjustments and repairs, including sunroof and convertible.
- Wiring schematics and extensive electrical component section specifying relay, control module and ground locations with detailed illustrations and photos.
- Includes bonus Diagnosis Without Guesswork manual. Written for the professional technician as well as the MINI enthusiast, this advanced DTC-based diagnostic troubleshooting manual is your comprehensive source of engine management and on-board system diagnosis.
