MERCEDES-BENZ SLK R170 (1996-2004) VARIO ROOF DIAGNOSTIC GUIDE IN PDF FORMAT (30 PAGES) SUPPLIED AS DOWNLOADABLE LINK.
A must have for MB workshop operatives and R170 owners who know better what headache it could be to track down squeaking seal, water ingress, trouble codes and hydraulic system failure.

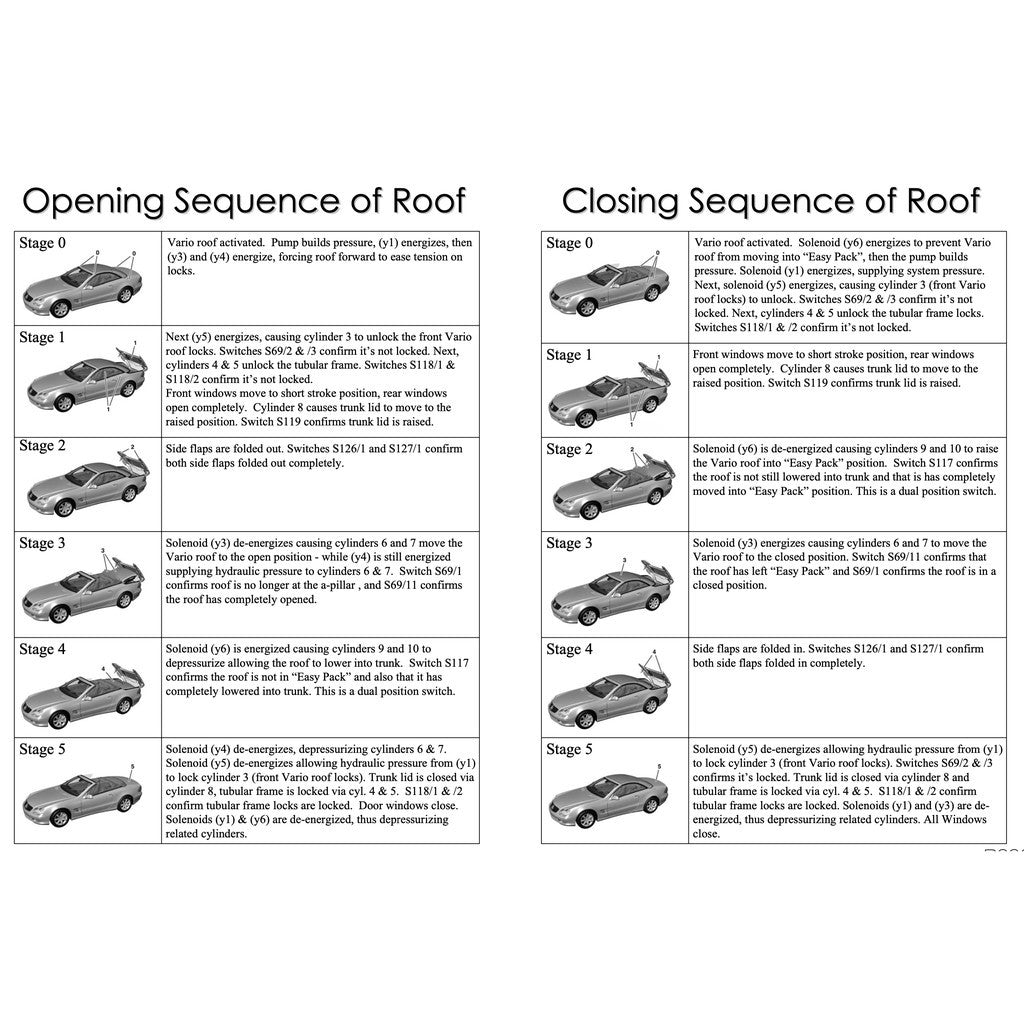

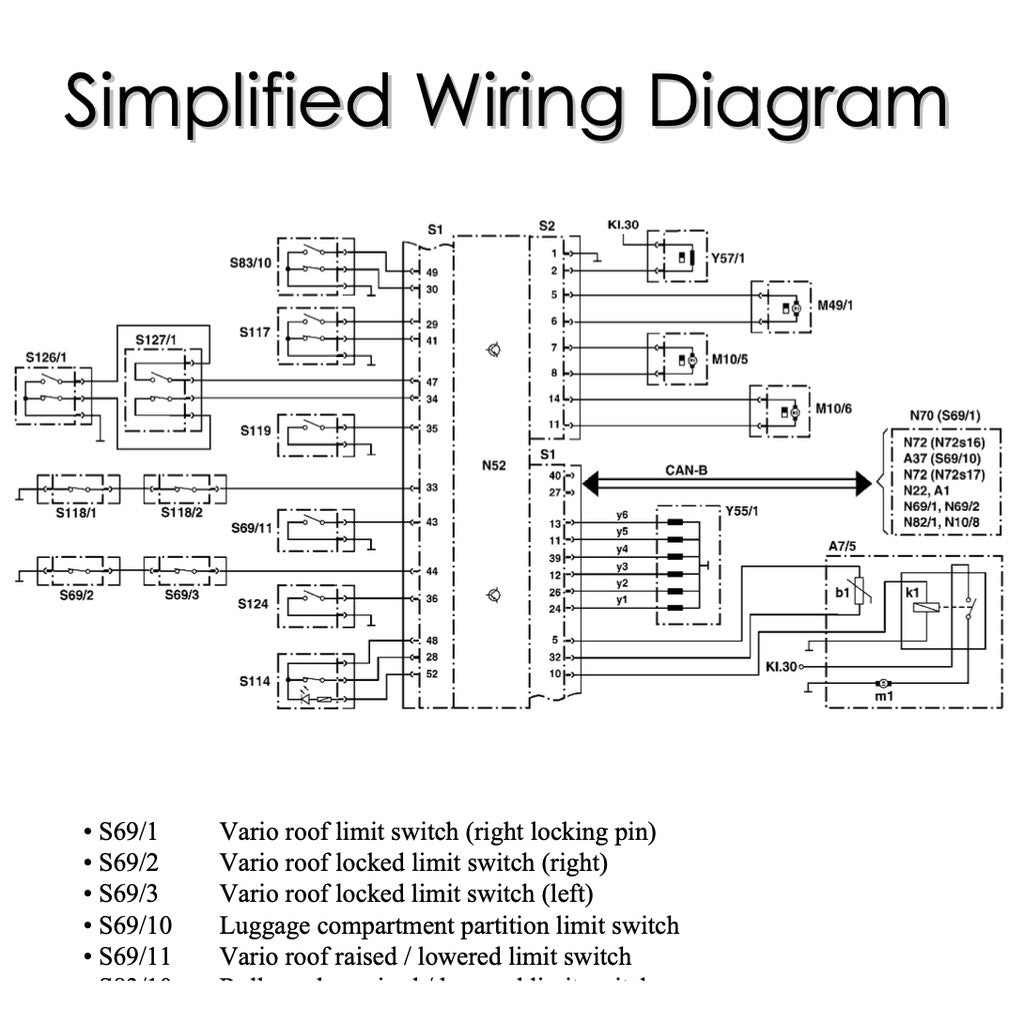

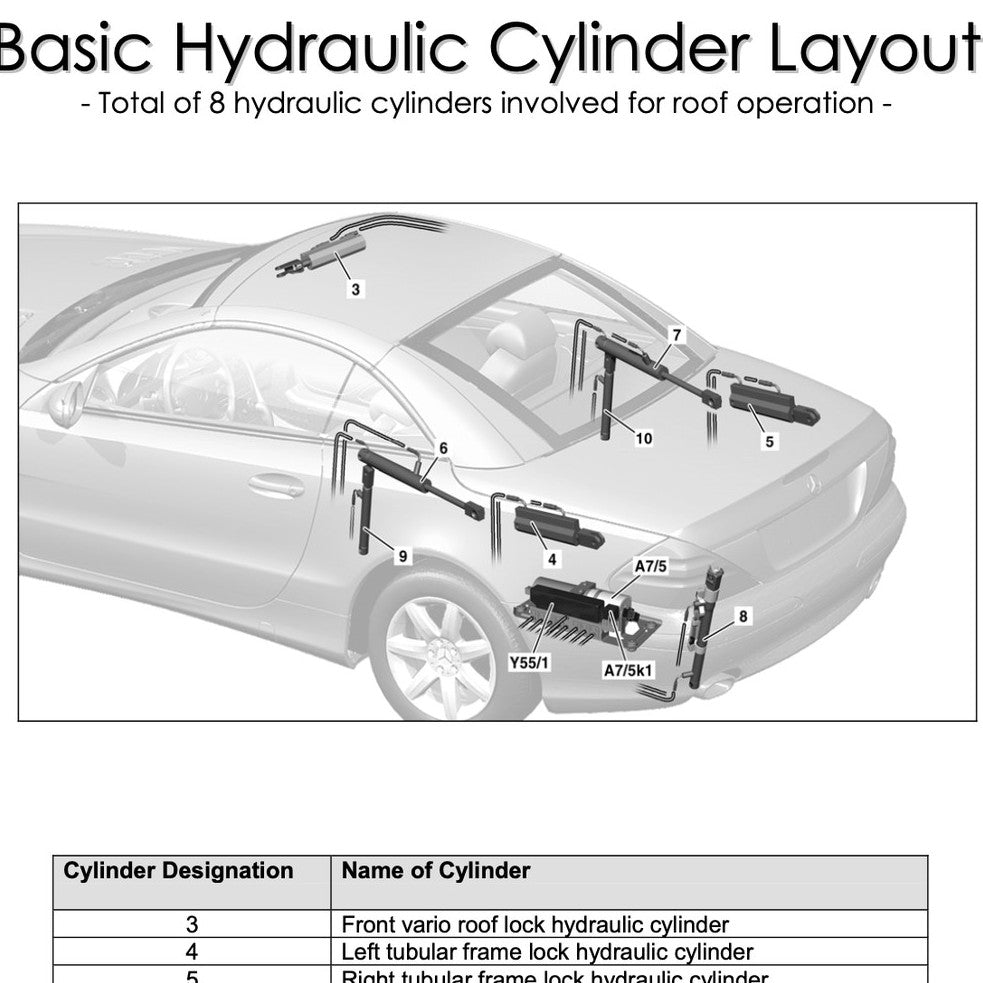

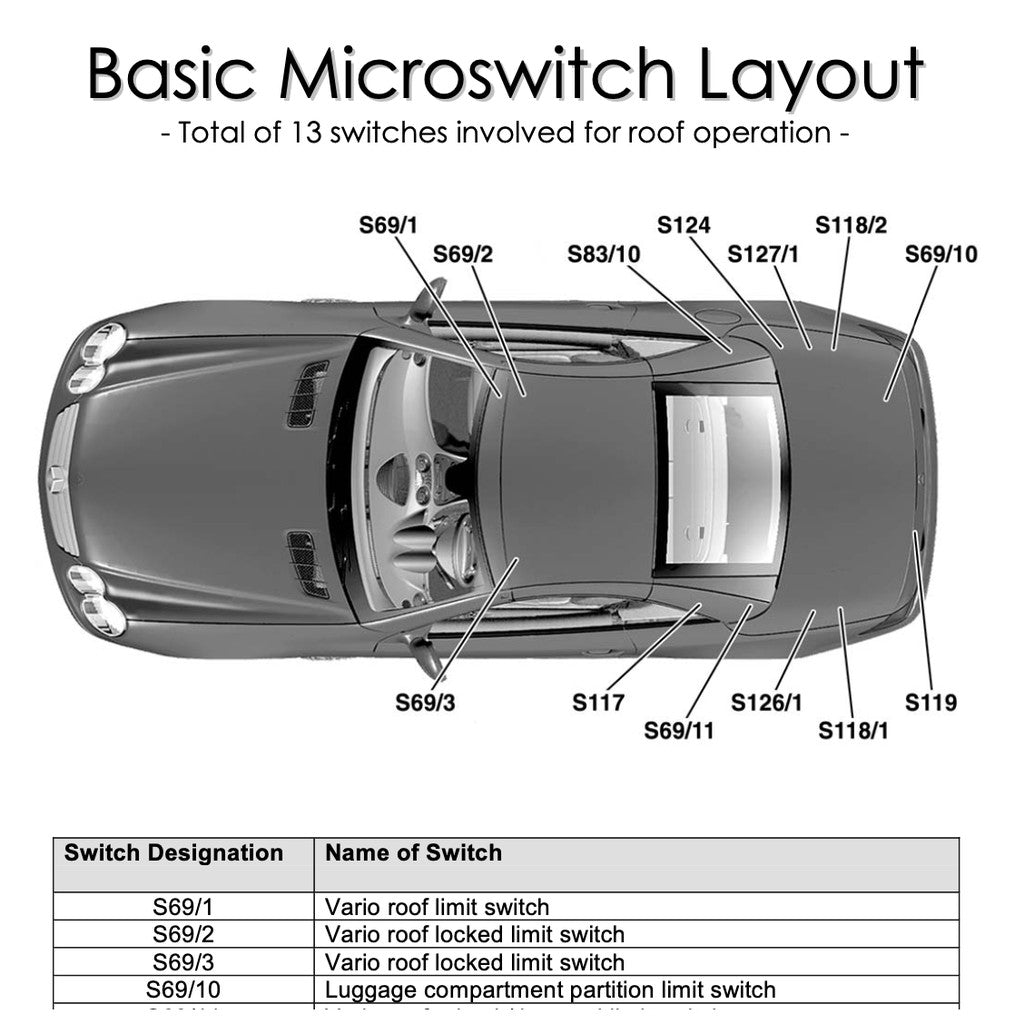

This diagnostic provide concise and pictorial aid for the R170 VARIO ROOF system: Sensors and microswitch test, wiring & current flow and troubles codes diagnostic tree.
The aim throughout is simplicity and clarity, with practical explanations, step-by-step procedures, accurate specifications and loads of visuals.
THIS MANUAL IS FOR THE VARIO ROOF ONLY. WE HAVE THE COMPLETE SLK R170 WORKSHOP MANUAL AS SEPARATE LISTING
