MERCEDES-BENZ ENGINE M117 (1971–1992) SERVICE WORKSHOP MANUAL

MERCEDES BENZ ENGINE M117  (1969–1991) FACTORY ENGINE SERVICE WORKSHOP MANUAL IN PDF (639 PAGES) AVAILABLE AS DOWNLOADABLE LINK.

PLEASE CHECK CAREFULLY YOUR VEHICLE APPLICATION IN THE APPLICATION SURVEY

APPLICATIONS:
3.5L
- 1971-1980 Mercedes-Benz R/C107
- 1970-1972 Mercedes-Benz W108
- 1969-1972 Mercedes-Benz W109
- 1970-1971 Mercedes-Benz W111
- 1973-1980 Mercedes Benz W116

3.8L
- 1980-1985 Mercedes-Benz R/C107
- 1979-1985 Mercedes-Benz W126

4.2L
- 1986-1989 Mercedes-Benz R107
- 1986-1991 Mercedes-Benz W126

CONTENT:

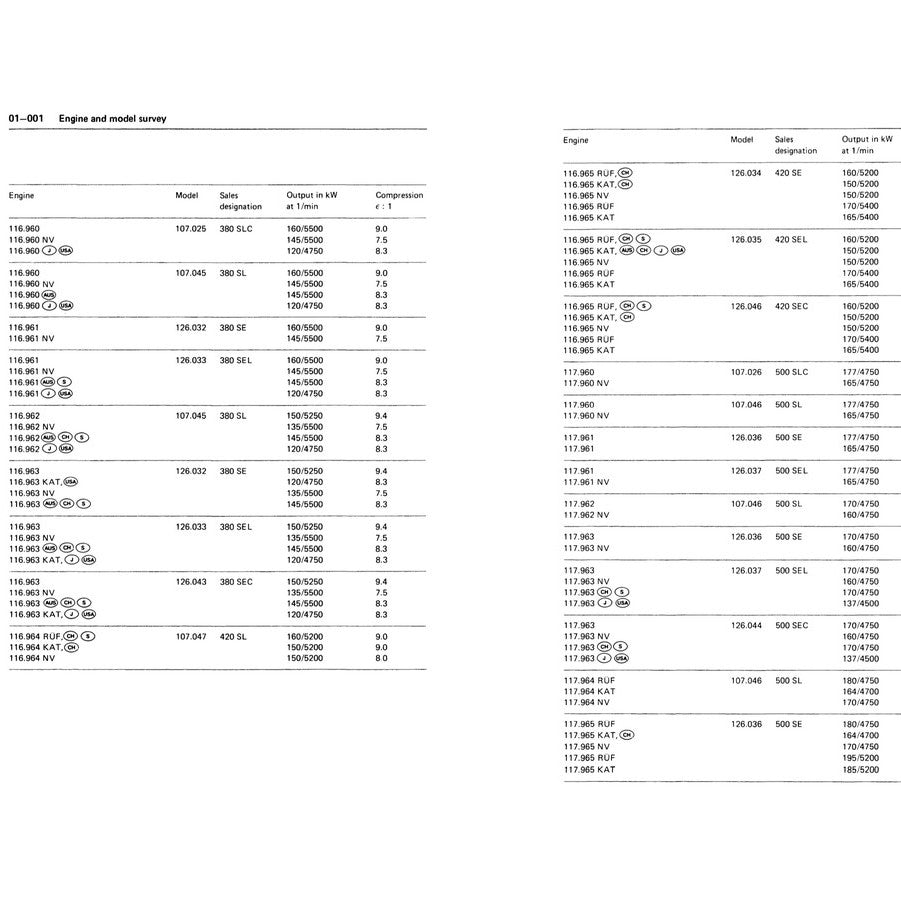

- General, Technical Data
- Crankcase and cylinder head

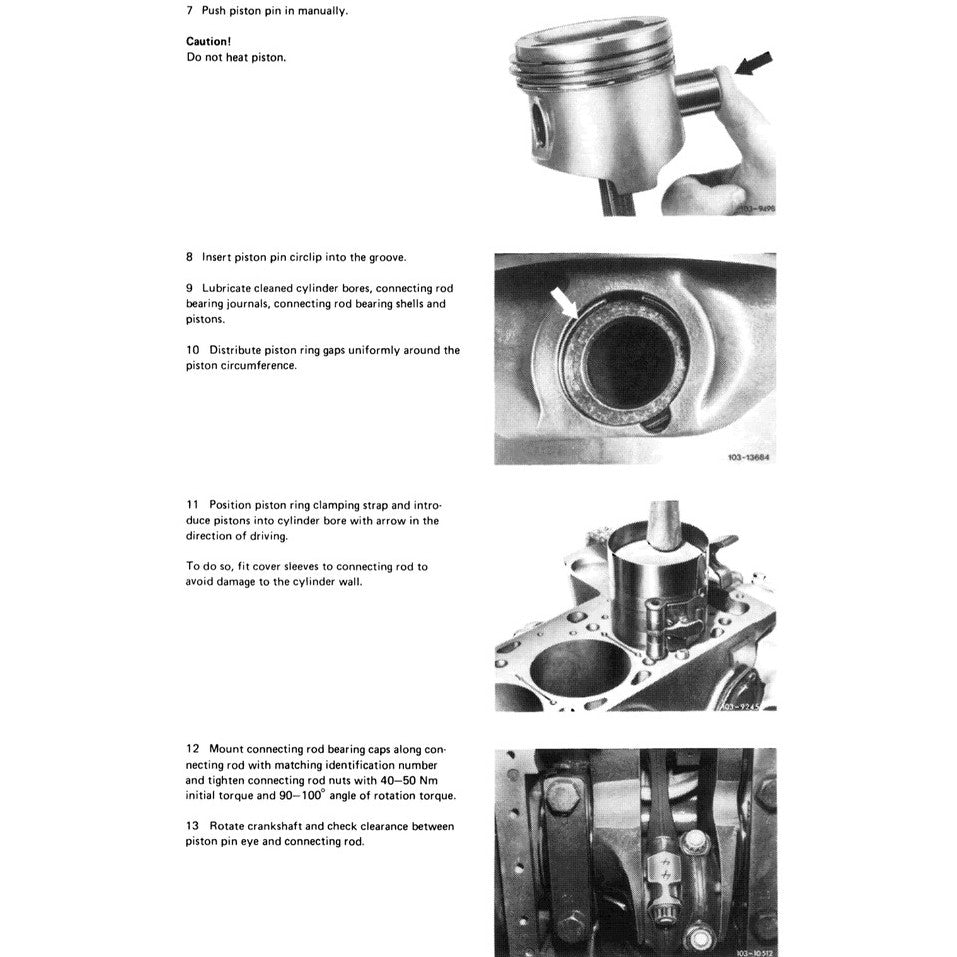

- Crankshaft assembly

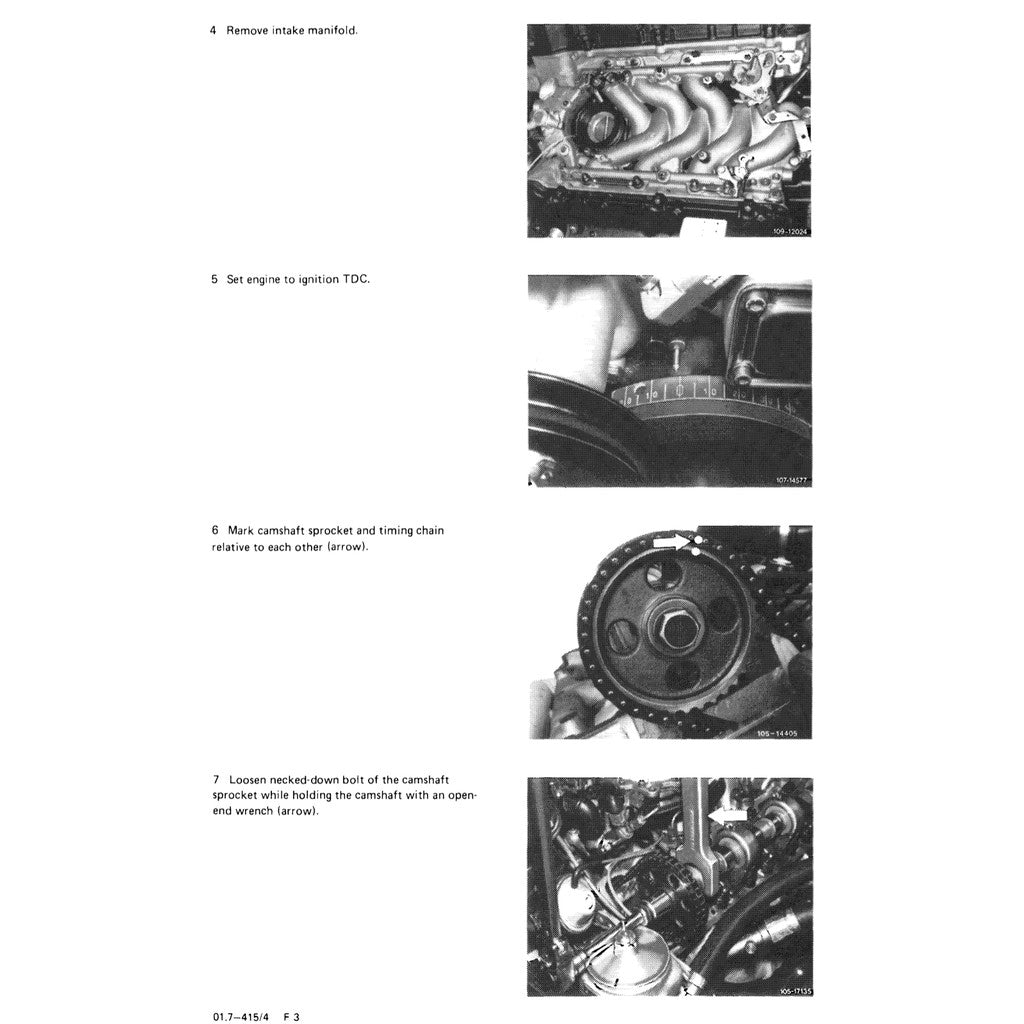

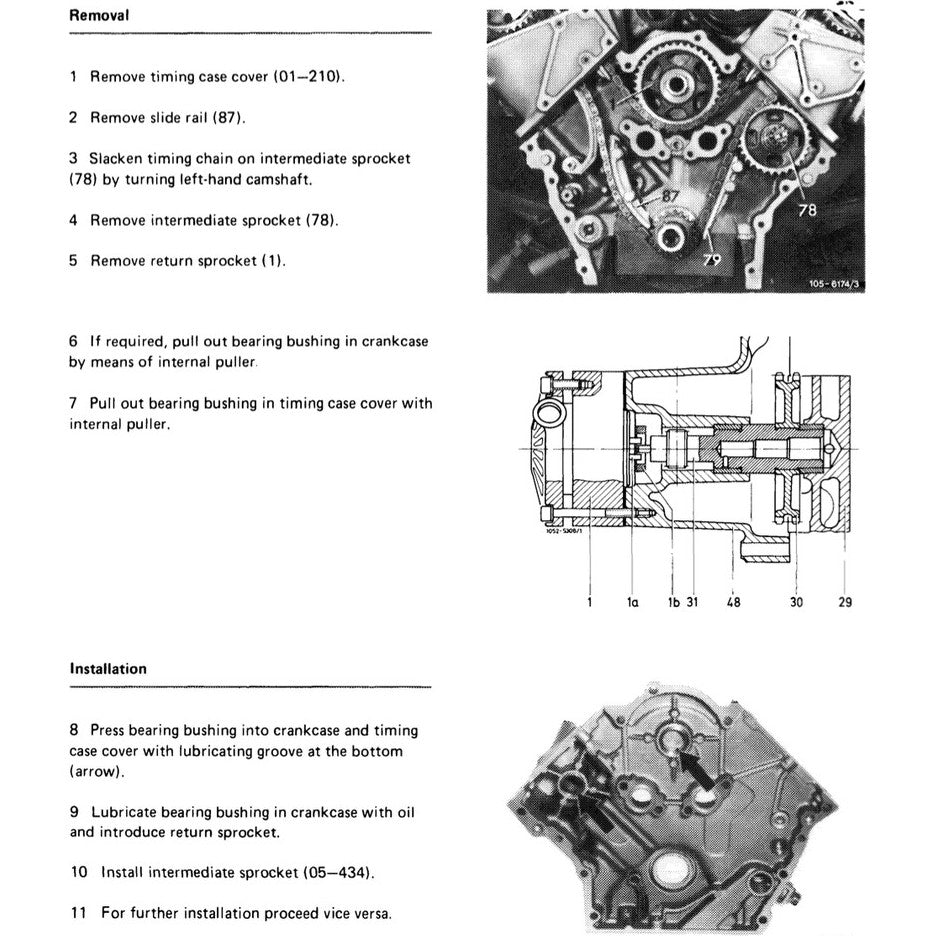

-  Engine timing, valvetrain
- Continuous Fuel Injection System (CFI)
- Air filter
- Belt drive

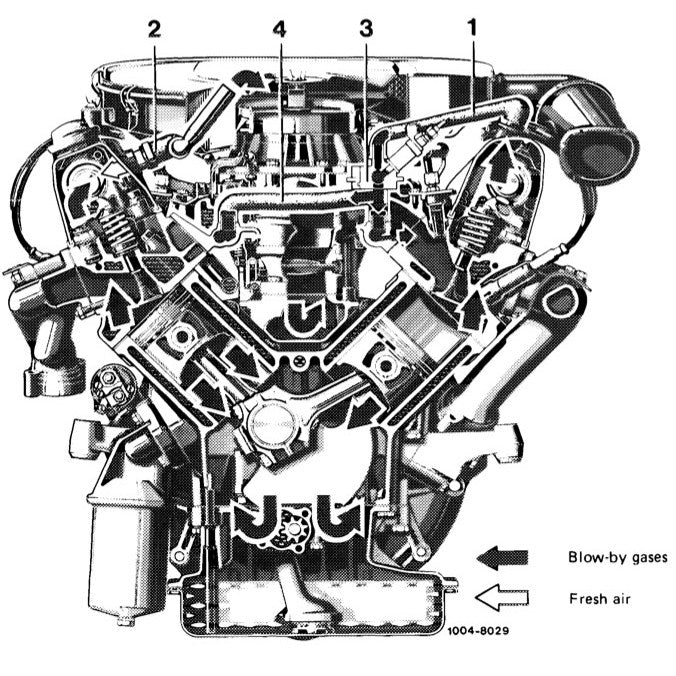

- Intake and exhaust manifolds, emission control system

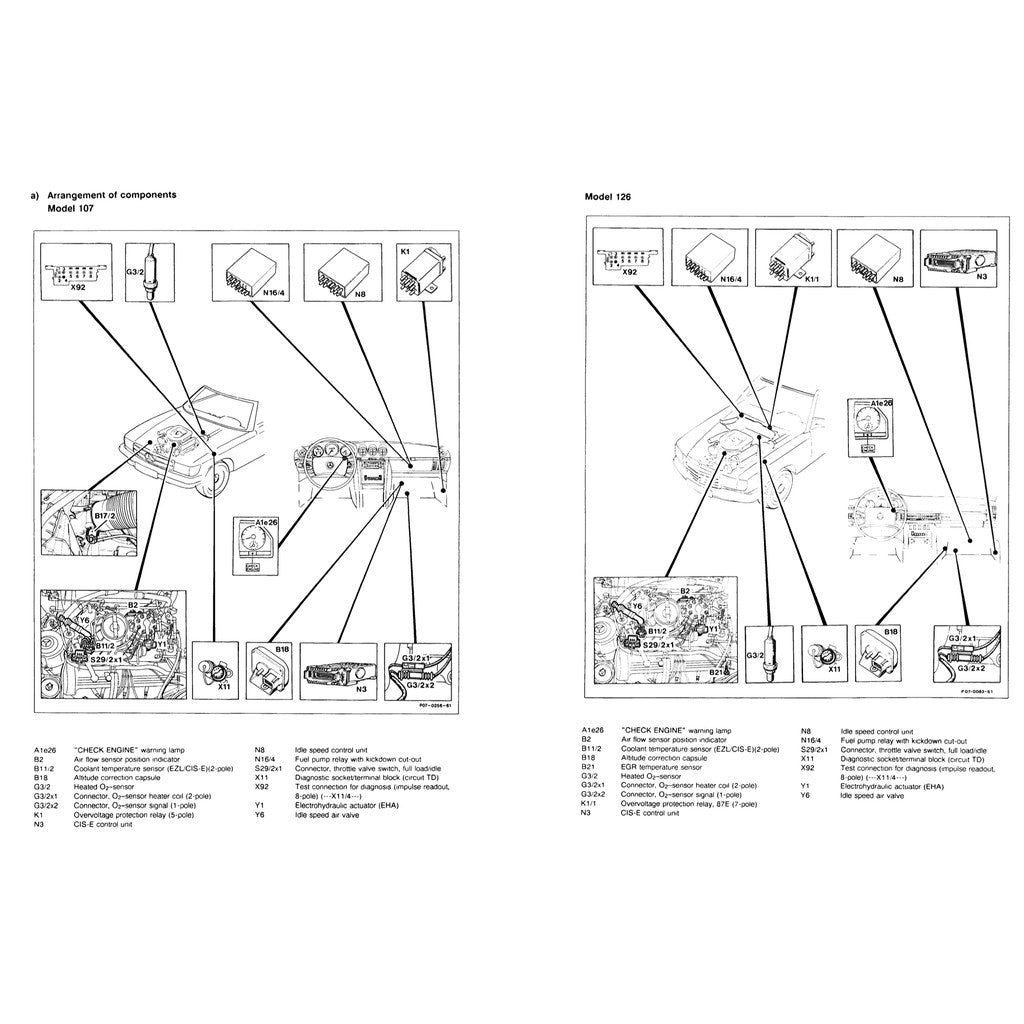

- Electrical system, engine
- Engine lubrication system
- Engine cooling system
- Engine suspension
- Accelerator control, cruise control, electronic accelerator

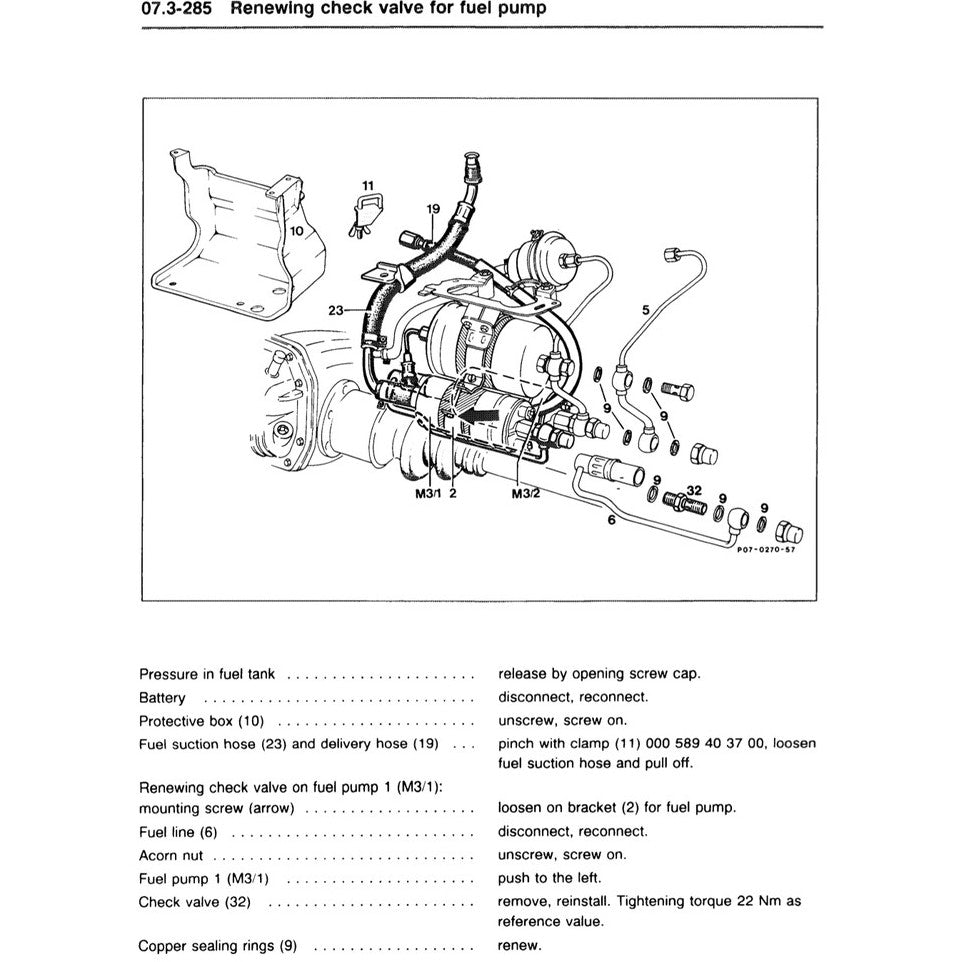

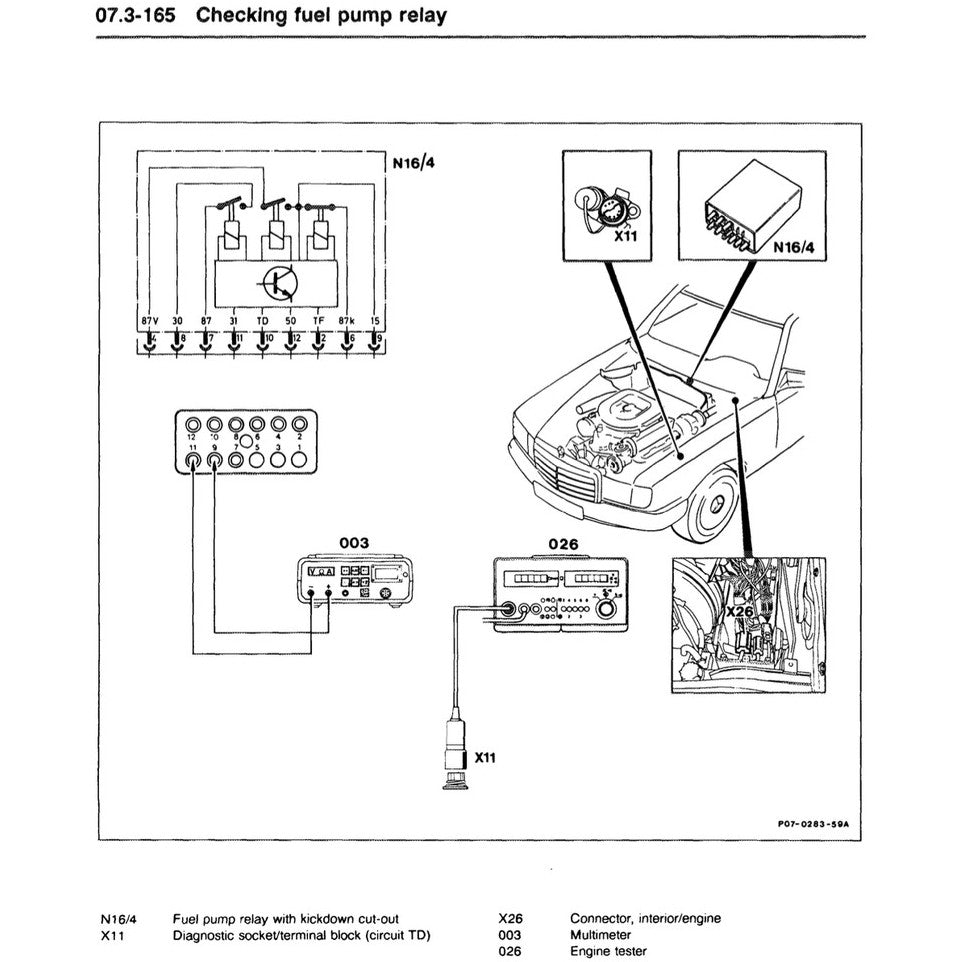

- Fuel system
- Exhaust system
