MAZDA MX-5 MIATA NA SERIES (1990) SERVICE WORKSHOP MANUAL

ACTORY SERVICE REPAIR WORKSHOP MANUAL FOR Mazda MX-5 Miata NA SERIES (1990) IN PDF FORMAT (1400 PAGES) SUPPLIED BOTH AS DOWNLOADABLE LINK AND ON PEN DRIVE SHIPPED

This is the same type of service manual your local MAZDA dealer will use when doing a repair. This manual has detailed illustrations as well as step by step instructions. All pages are printable, so run off what you need and take it with you into the garage or workshop. These manuals are your number one source for repair and service information. They are specifically written for the DIY as well as the experienced mechanic.

This manual is a special one as it includes the ABS Supplement 1990 and....the complete parts list !

ENGINE:
1,598 cc B6ZE(RS) DOHC I4
1,598 cc B6ZE(RS) DOHC supercharged I4 (Mazdaspeed)
1,839 cc BP' DOHC I4
1,839 cc BP DOHC supercharged I4 (Mazdaspeed)
1,995 cc BP DOHC I4 (Mazdaspeed)

TRANSMISSION:
6-speed Aisin AZ6 manual
5-speed M526 manual
4-speed F4A-EL (Jatco) automatic

WHAT'S INSIDE ?

        Detailed sub-steps expand on repair procedure information
        Notes, cautions and warnings throughout each chapter pinpoint critical information.
        Numbered instructions guide you through every repair procedure step by step.
        Bold figure number help you quickly match illustrations with instructions.

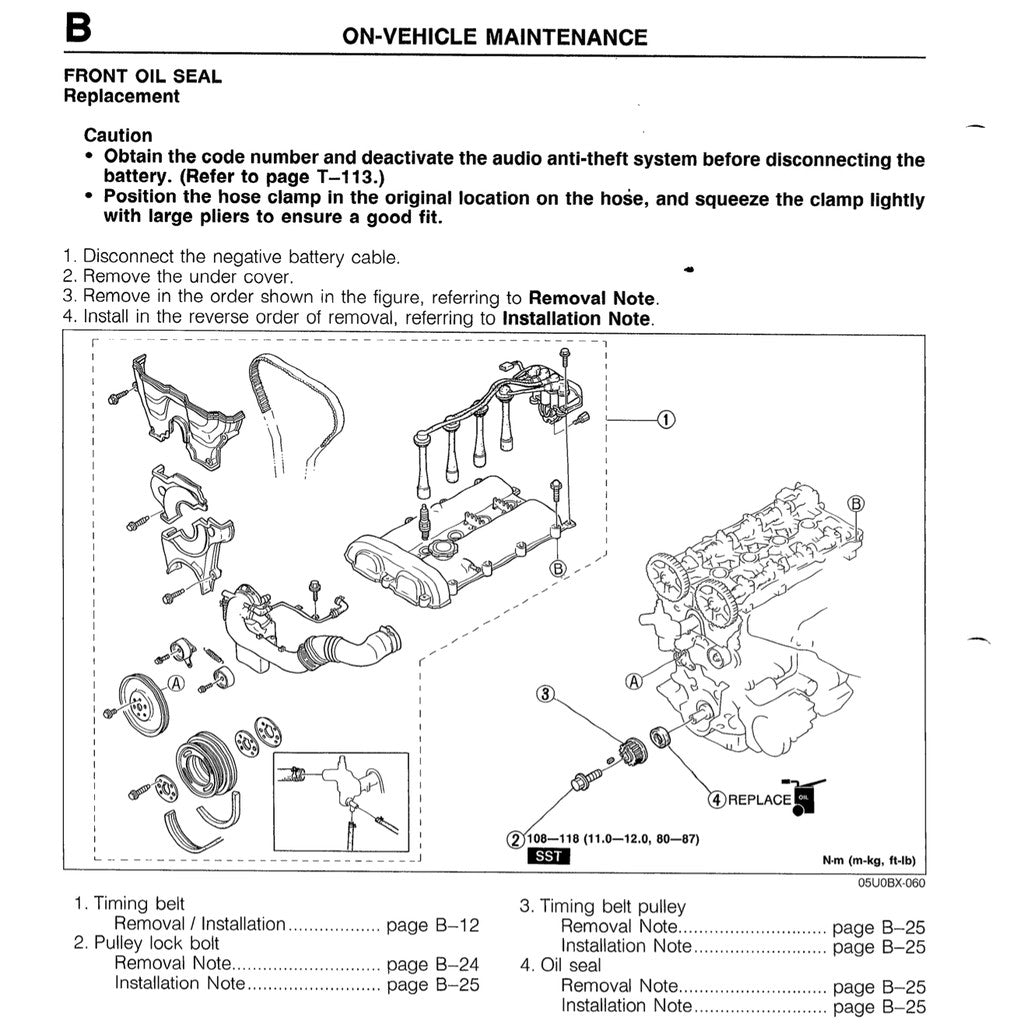

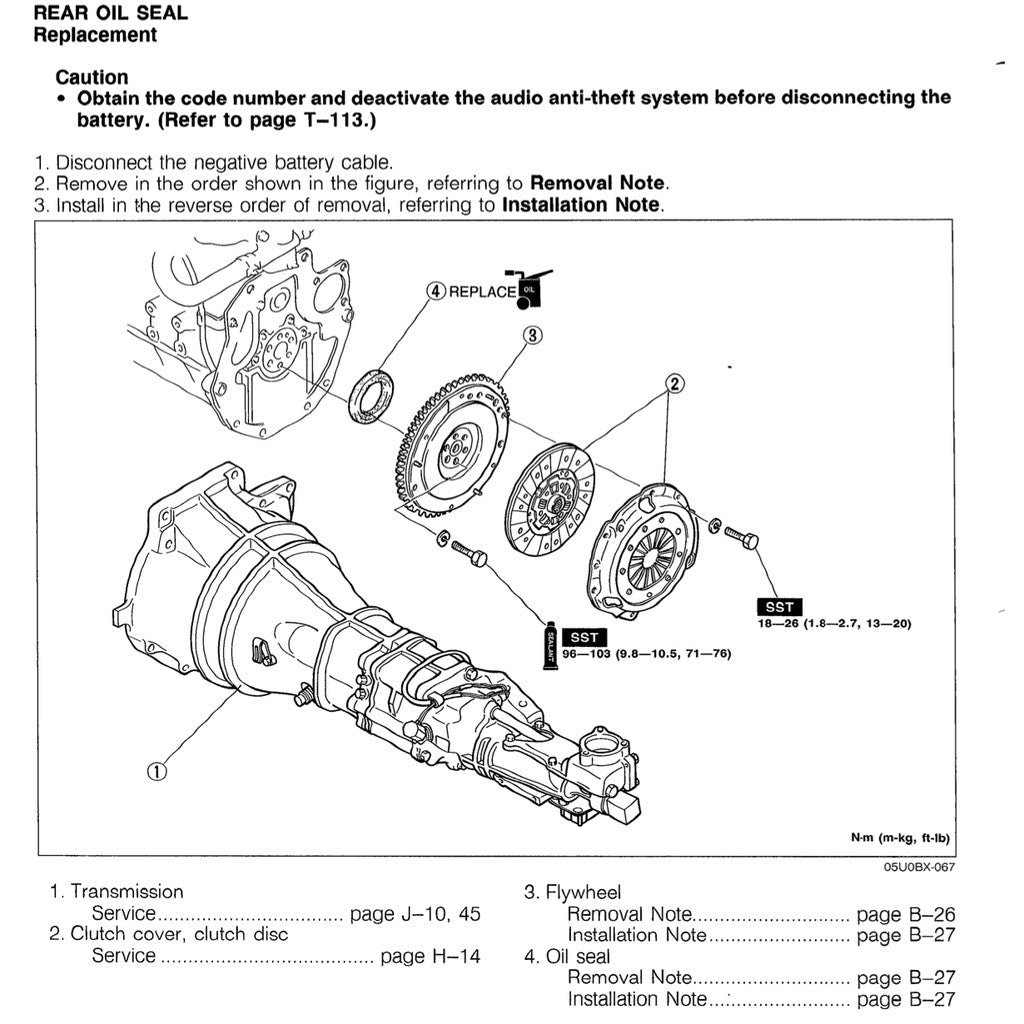

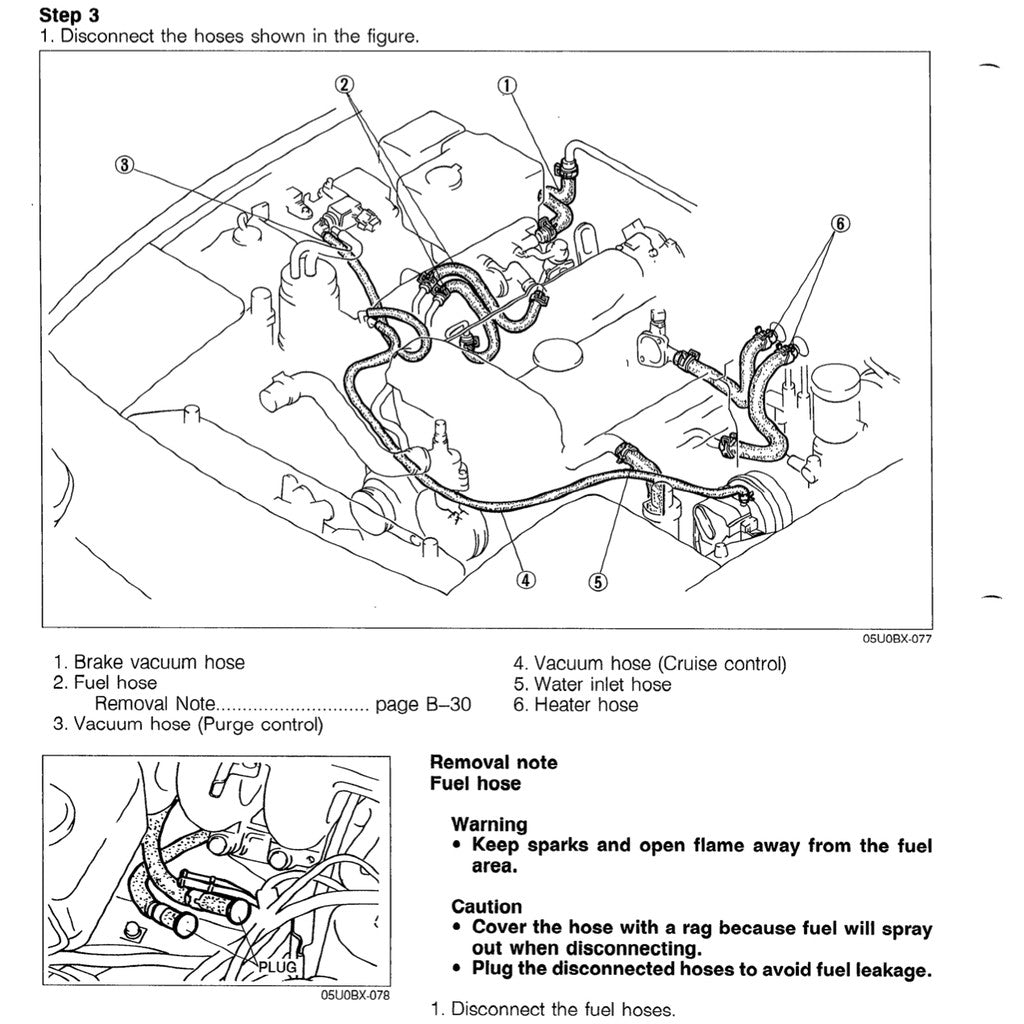

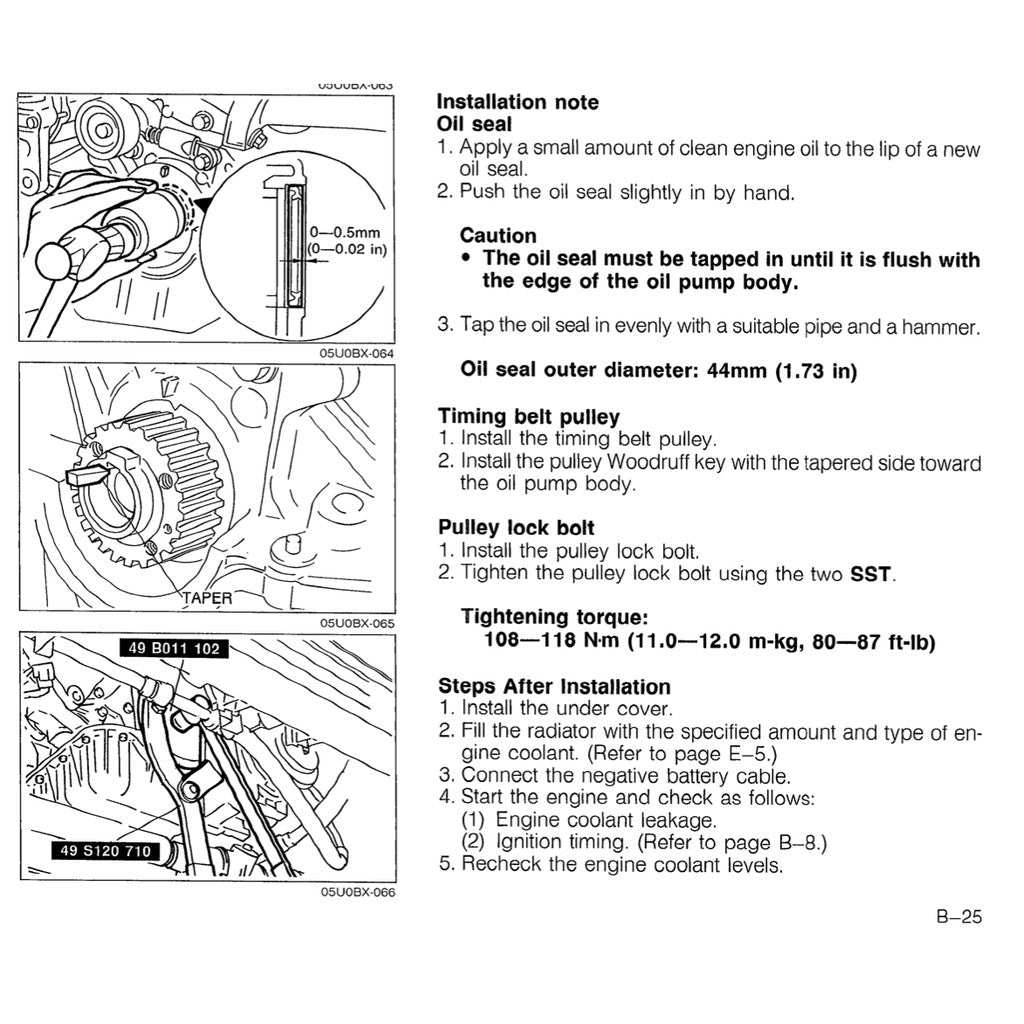

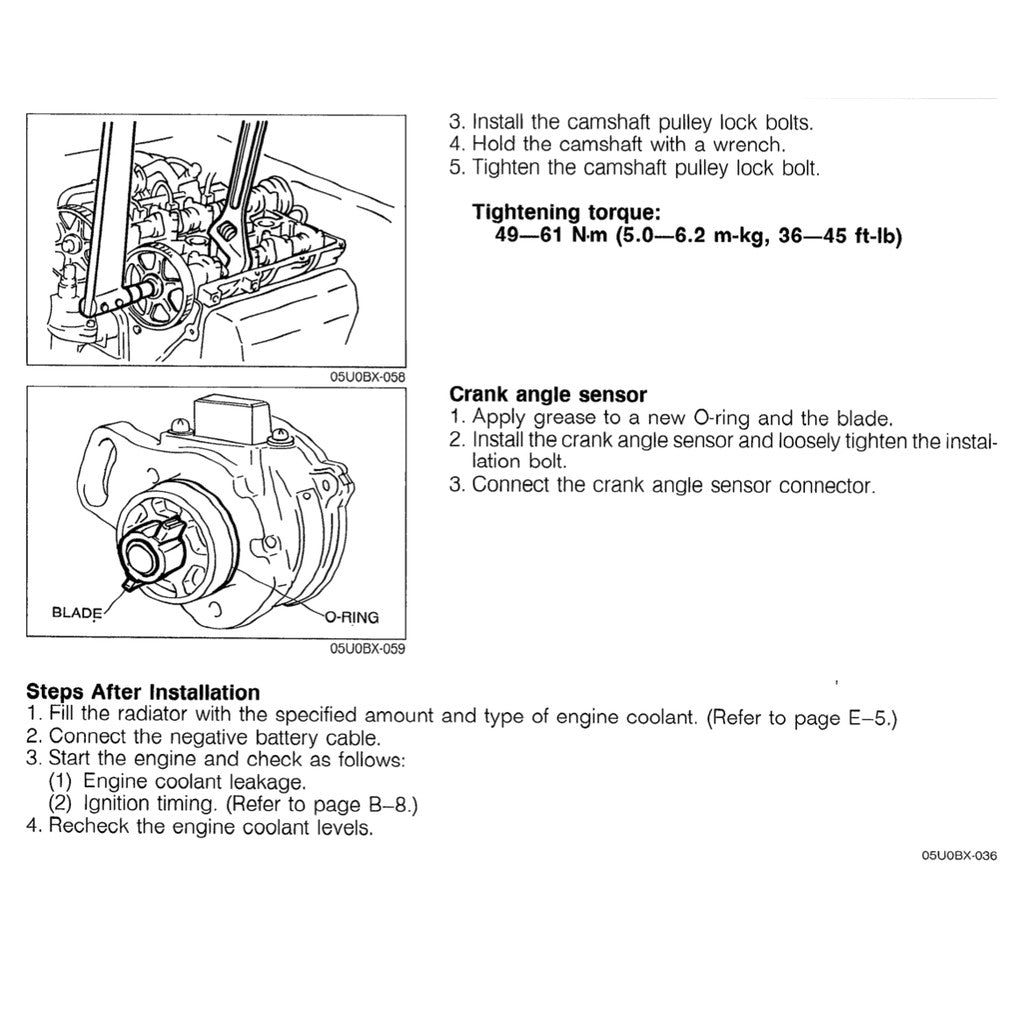

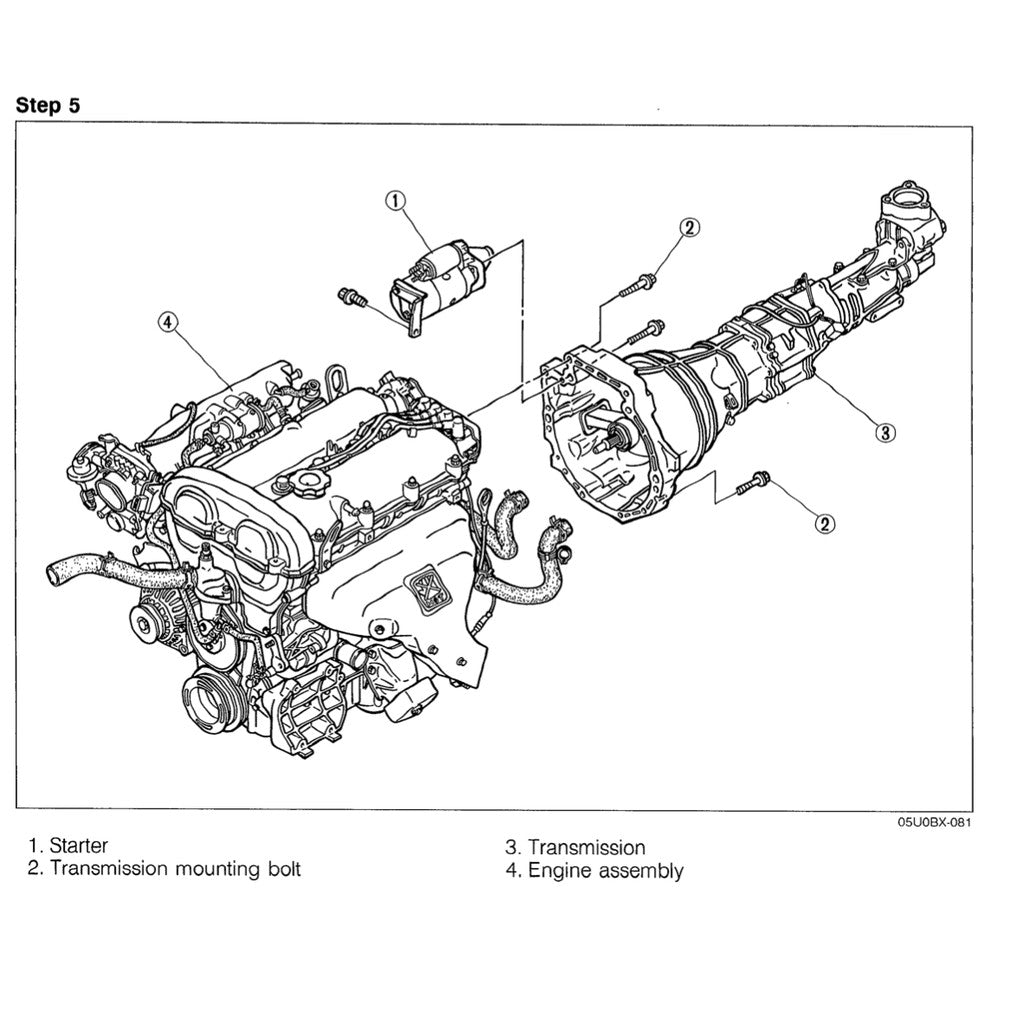

        Detailed illustrations, drawings and photos guide you through every procedure.
        Enlarged inset helps you identify and examine parts in detail.

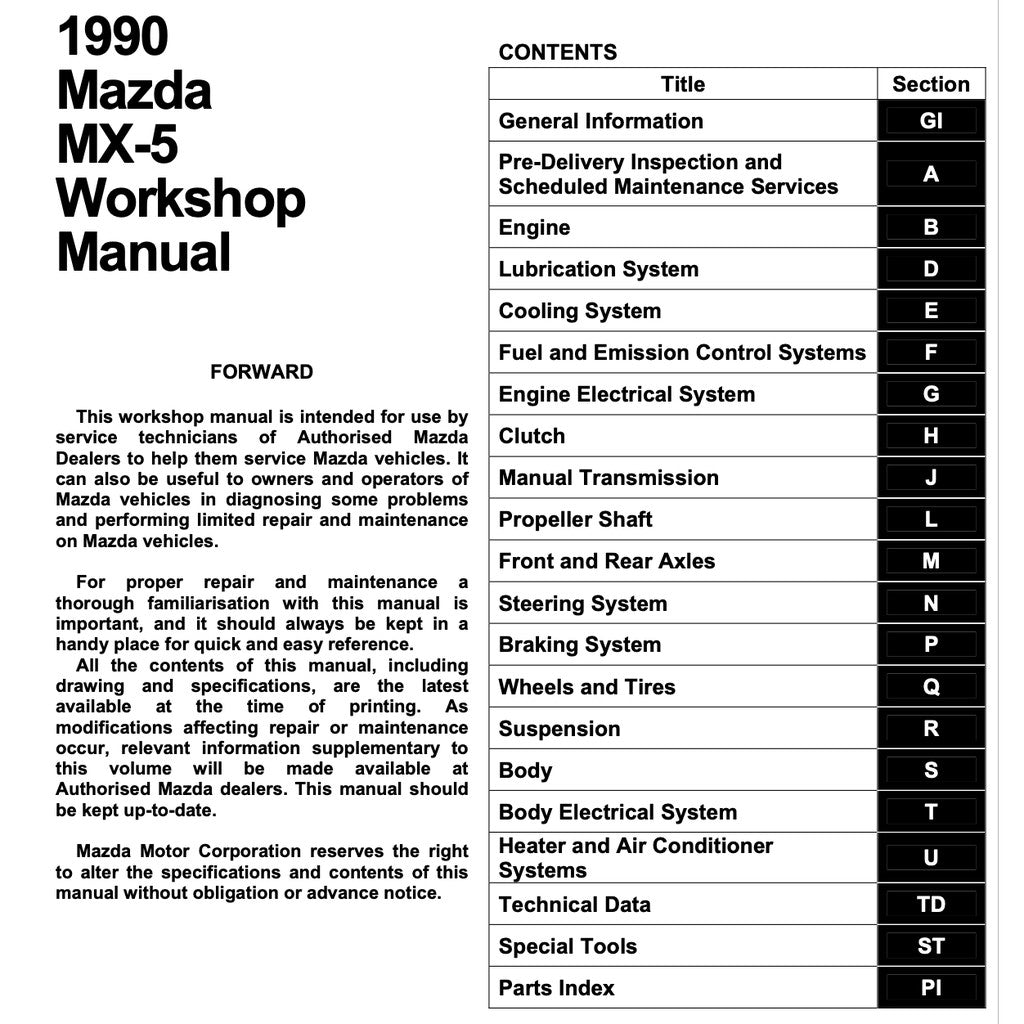

        Numbered table of contents easy to use so that you can find the information you need fast.
        This manual also makes it easy to diagnose and repair problems with your machines electrical system.
        Troubleshooting and electrical service procedures are combined with detailed wiring diagram for ease of use
