LEXUS CT200h (2011-2017) SERVICE WORKSHOP MANUAL

LEXUS CT200h (2011-2017)  FACTORY SERVICE WORKSHOP MANUAL SOFTWARE FOR OFFLINE VIEWING (WEB BROWSER) AVAILABLE AS DOWNLOADABLE LINK

This is the same service manual your local LEXUS dealer will use when doing a repair. This manual has detailed illustrations as well as step by step instructions. Pages are printable, so run off what you need and take it with you into the garage or workshop.

POWERTRAIN
Engine: 1.8 L 2ZR-FXE I4 (hybrid petrol)
Electric motor: 60 kW (80 hp; 82 PS) 3JM AC synchronous
Power output: 73 kW (98 hp; 99 PS) (petrol engine); 100 kW (134 hp; 136 PS) (combined system output)
Transmission: eCVT
Hybrid drivetrain:        Series-parallel (Lexus Hybrid Drive)
Battery:        1.3 kWh nickel-metal hydride[2]

WHAT'S INSIDE ?

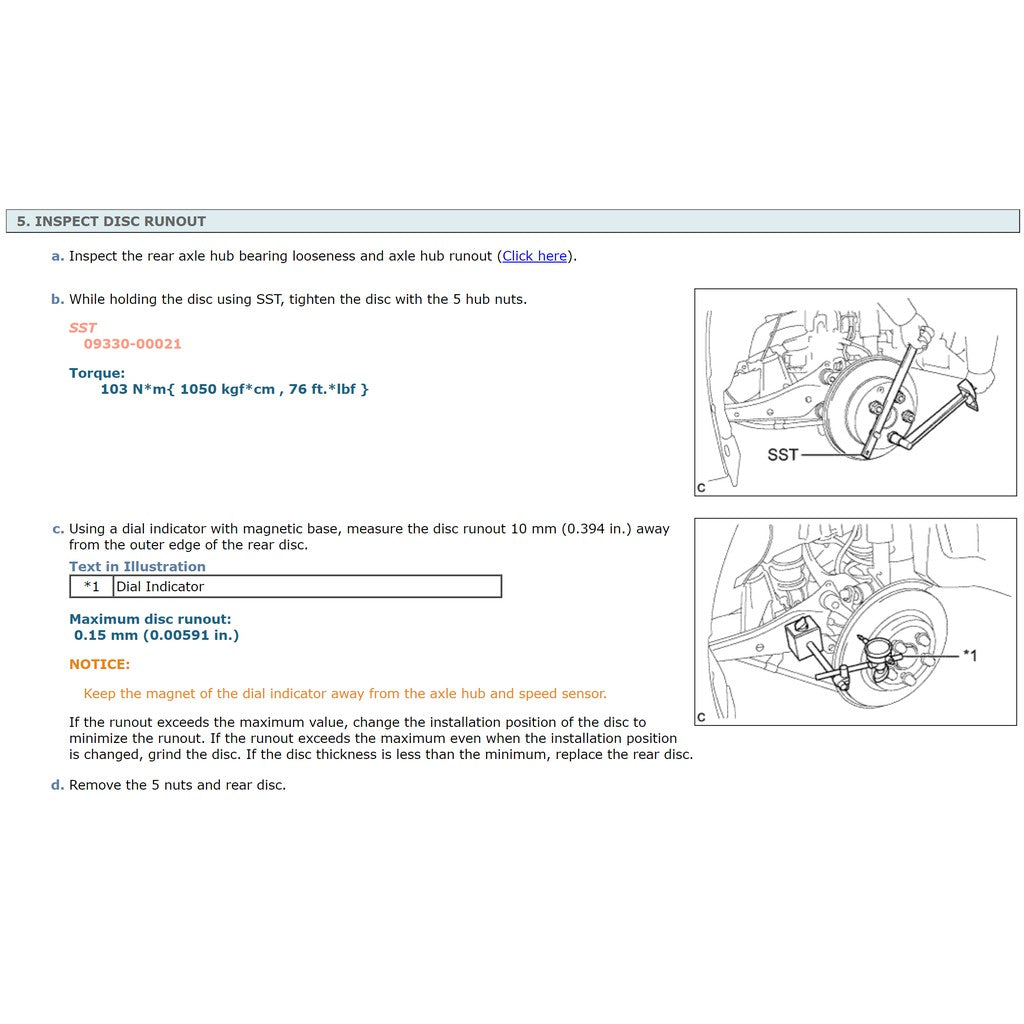

        Detailed sub-steps expand on repair procedure information

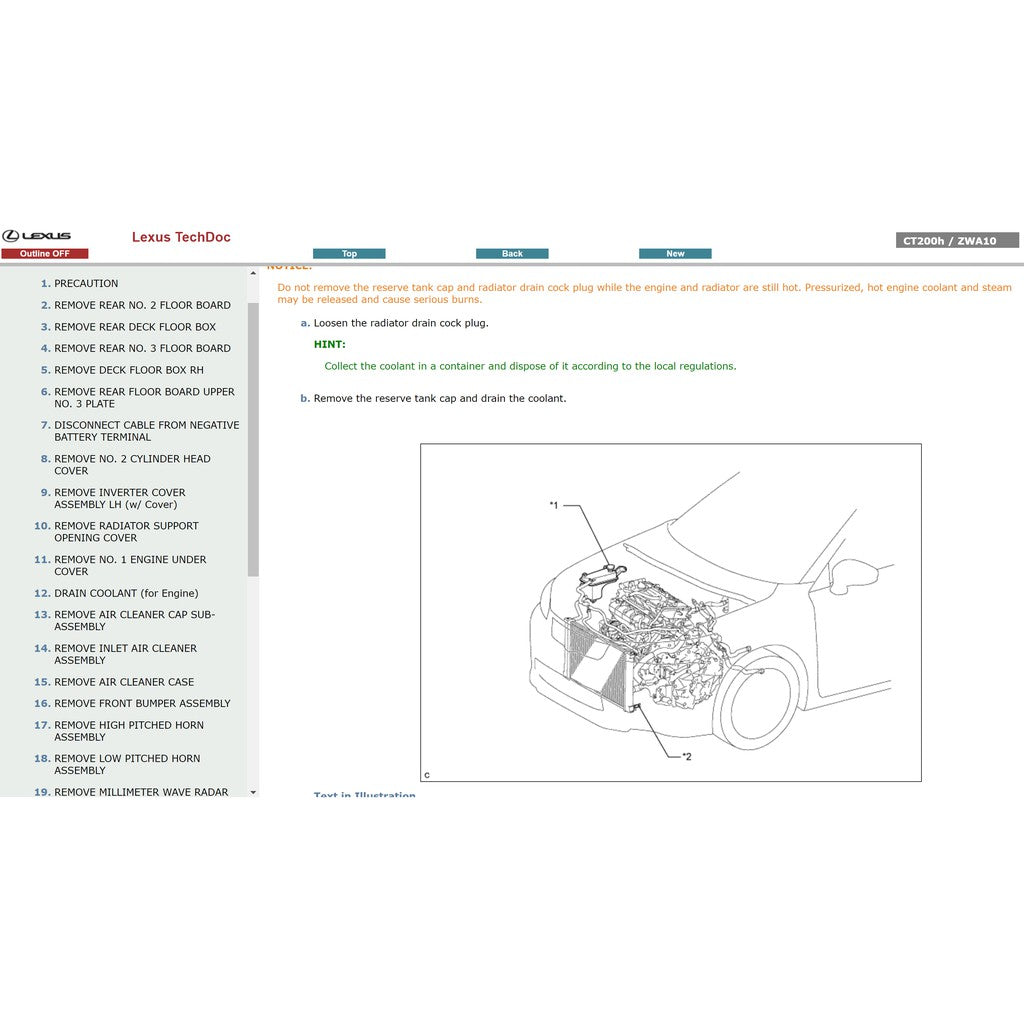

        Notes, cautions and warnings throughout each chapter pinpoint critical information.

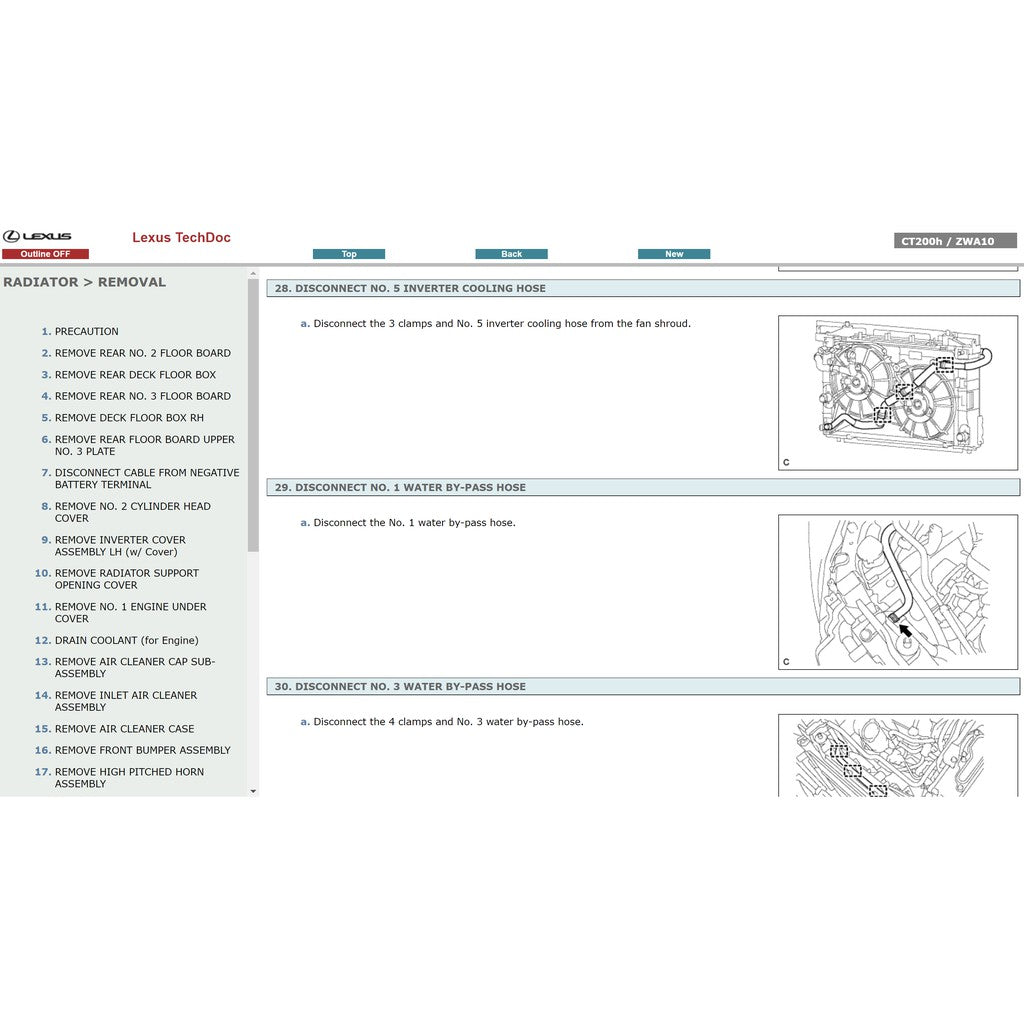

        Numbered instructions guide you through every repair procedure step by step.
        Bold figure number help you quickly match illustrations with instructions.

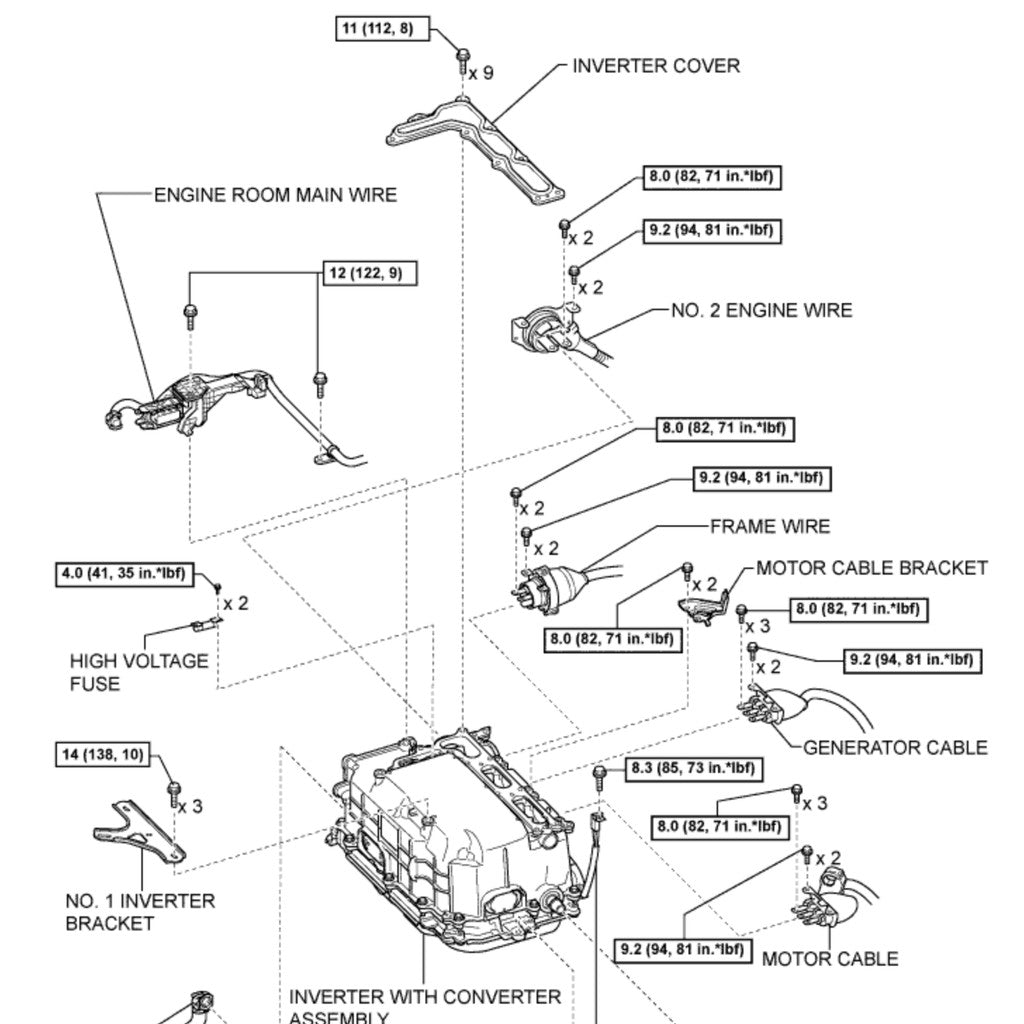

        Detailed illustrations, drawings and photos guide you through every procedure.

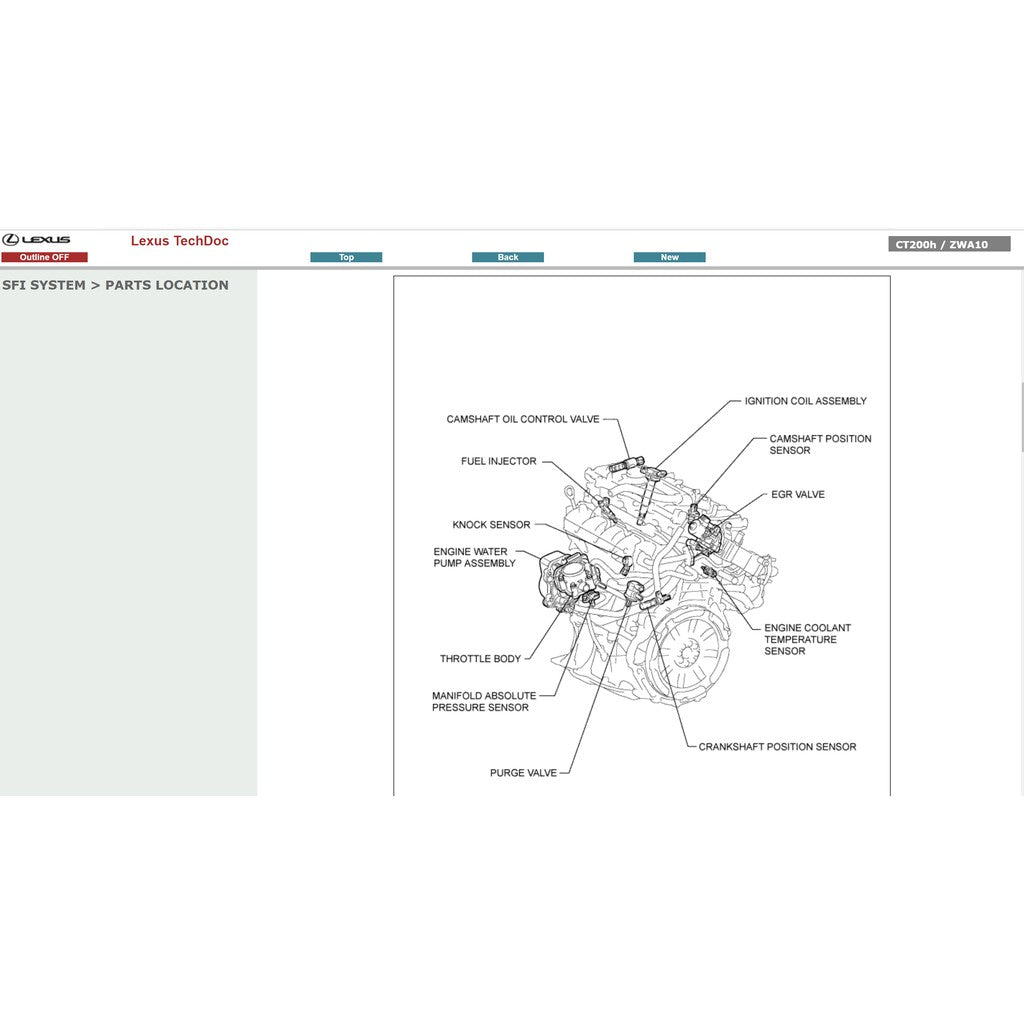

        Enlarged inset helps you identify and examine parts in detail.

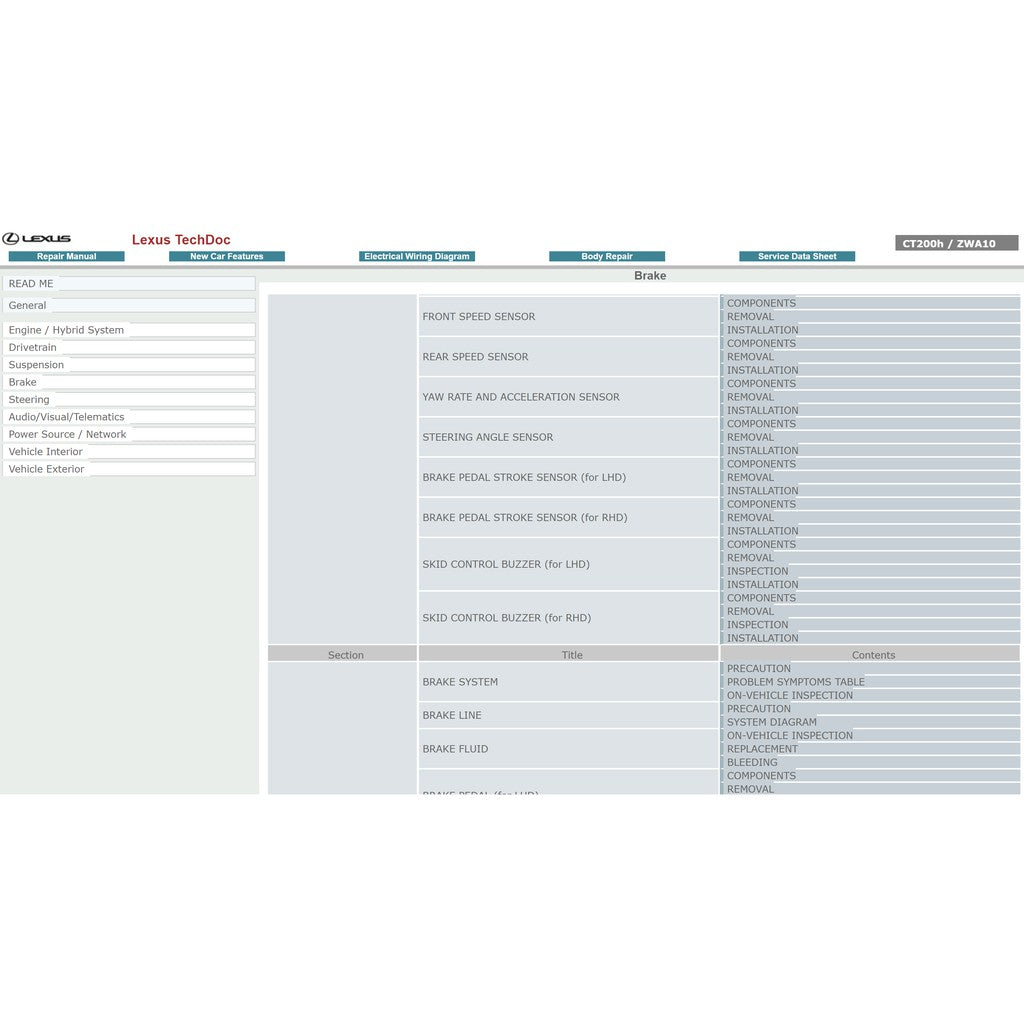

        Numbered table of contents easy to use so that you can find the information you need fast.
        This manual also makes it easy to diagnose and repair problems with your machines electrical system.
        Troubleshooting and electrical service procedures are combined with detailed wiring diagram for ease of use.
