HYUNDAI SANTA FE MX5 (2023+) SERVICE WORKSHOP MANUAL IN PDF FORMAT (2923 PAGES) AVAILABLE AS DOWNLOADABLE LINK.
Comprehensive manual featuring 2.5L gasoline engine. As usual, Koreans do know how to do things the right way even when it comes to designing workshop manuals: Focused, didactic and riddled with high resolution pictures and exploded diagrams, there's a strong focus on repair procedures as as on components description making it perfectly accessible to DIY and professional mechanics alike.

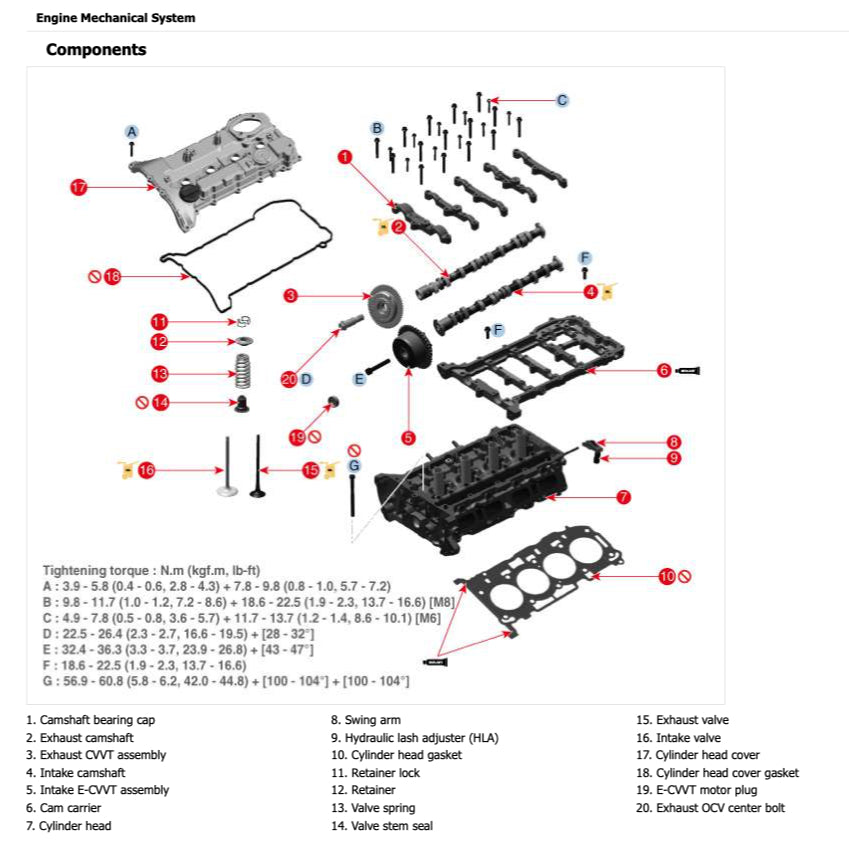

ENGINE FEATURED IN THIS MANUAL: 2.5 L Smartstream G2.5 T-GDi I4
REFERENCE POWERTRAIN
Engine
Petrol:
2.0 L Smartstream G2.0 T-GDi I4
2.5 L Smartstream G2.5 GDi I4
2.5 L Smartstream G2.5 T-GDi I4
Petrol hybrid:
1.6 L Smartstream G1.6 T-GDi I4
Petrol plug-in hybrid:
1.6 L Smartstream G1.6 T-GDi I4
Electric motor
Permanent magnet synchronous (hybrid models)
44.2 kW (60 PS; 59 hp) (HEV)
66.9 kW (91 PS; 90 hp) (PHEV)
Transmission
6-speed A6MF2H automatic
8-speed automatic
8-speed D8LF1 dual-clutch automatic
Hybrid drivetrain
Parallel hybrid
Plug-in hybrid
Battery1.49 kWh lithium-ion polymer (hybrid)
13.8 kWh lithium-ion polymer (PHEV)
