HONDA CITY GN (2020) WIRING DIAGRAMS

HONDA CITY GN (2020) SYSTEMS WIRING DIAGRAMS + GROUND LOCATION LIST + RELAY LIST + COMPONENTS LOCATIONS SUPPLIED AS DOWNLOADABLE LINK.

This manuals include:

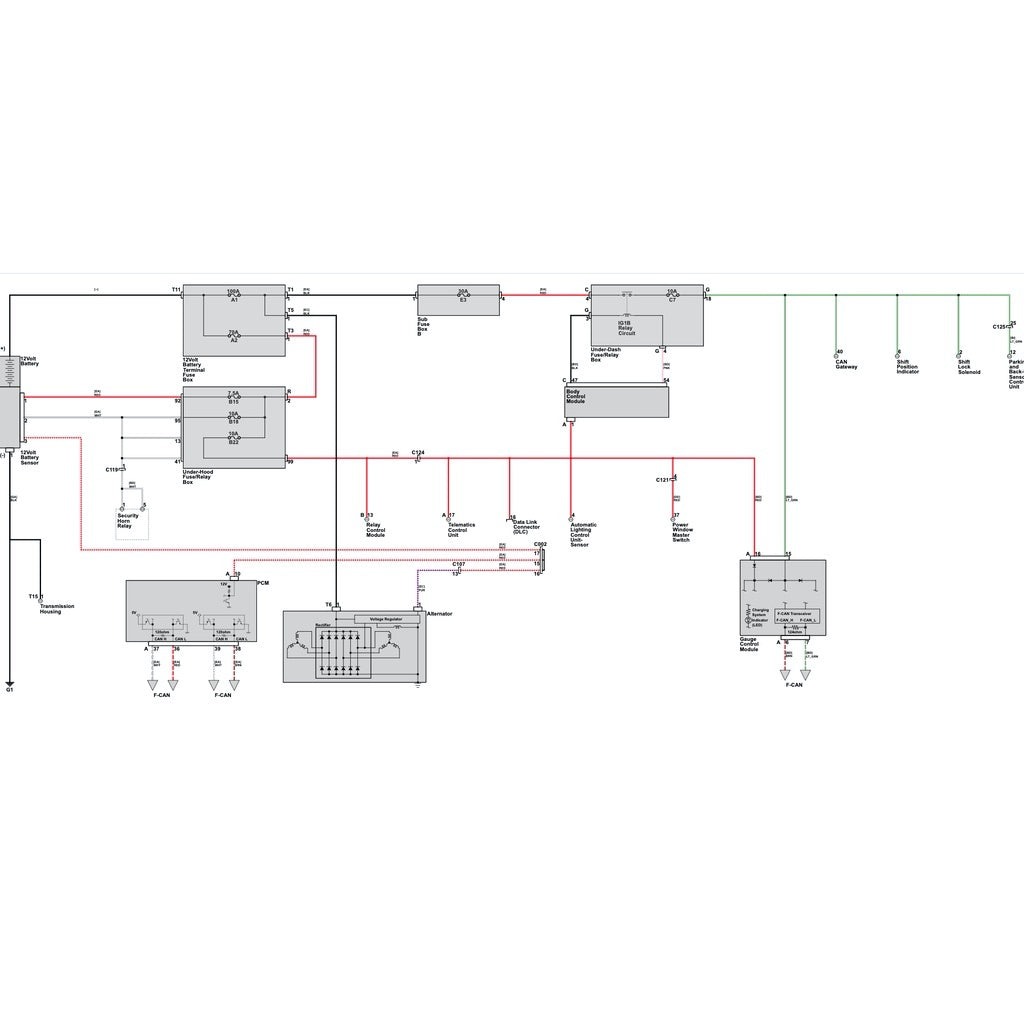

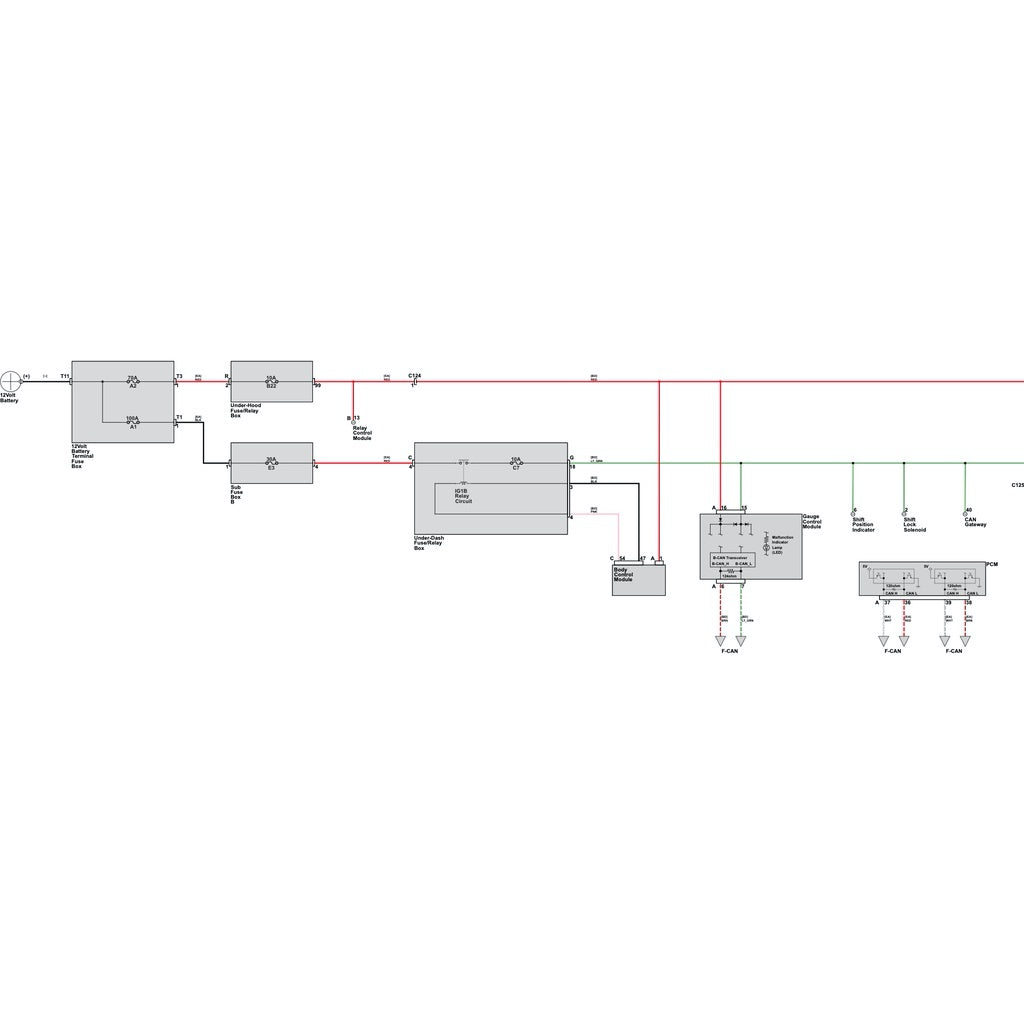

-  System wiring diagrams

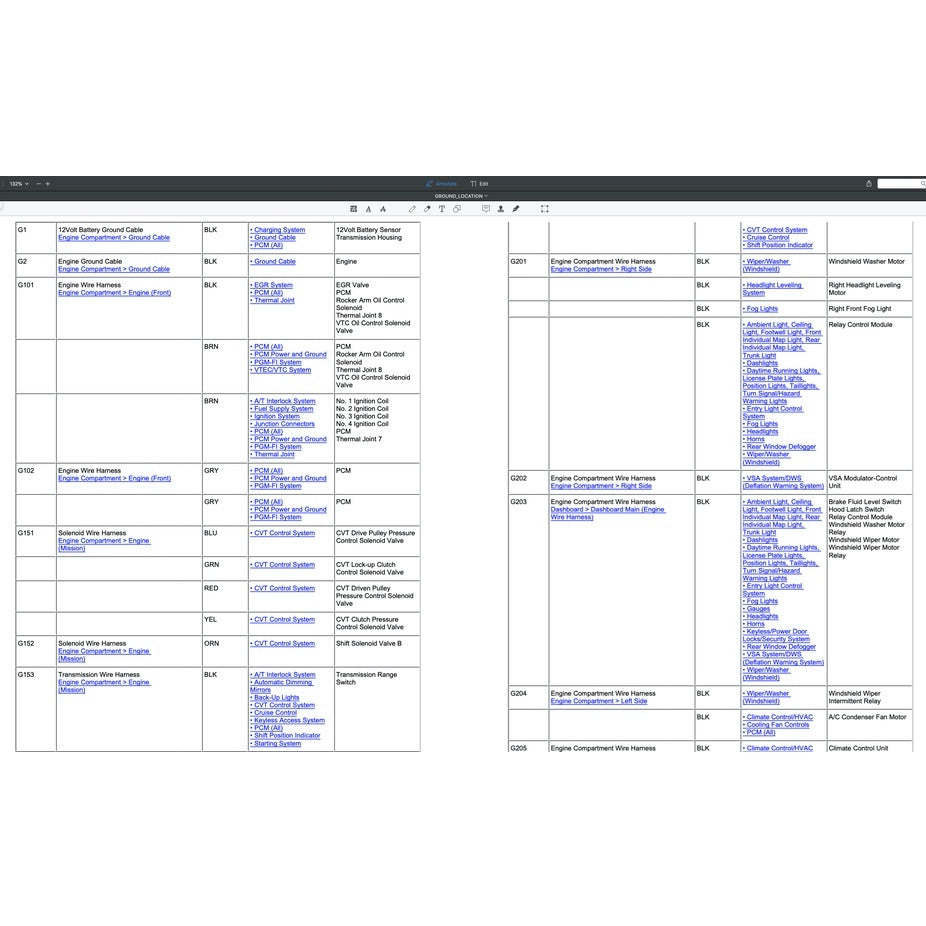

-  Ground location list
-  Relay list

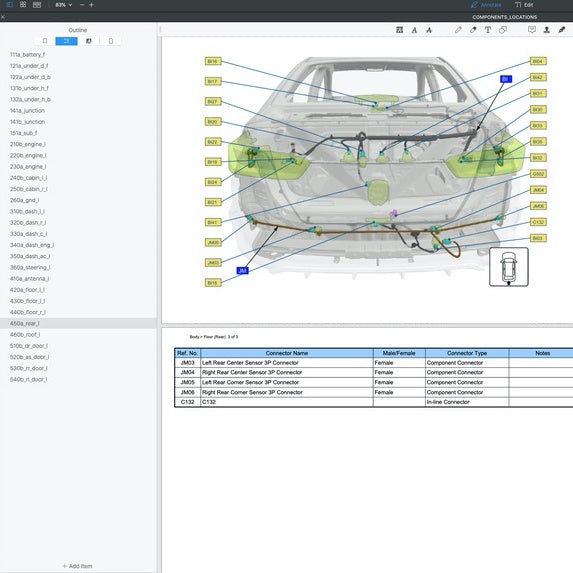

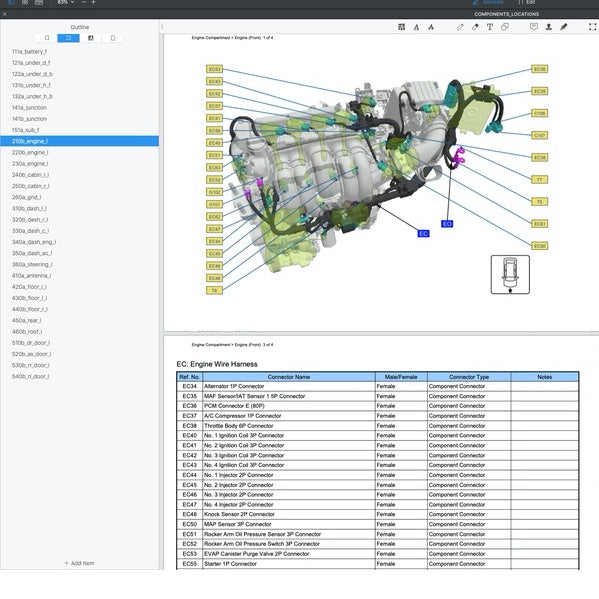

-  Components locations

Powertrain
Engine
Petrol:
1.0 L P10A6 I3 turbo
1.5 L L15Z1C I4
1.5 L L15ZF I4
Petrol HEV:
1.5 L LEB8 Atkinson cycle i-MMD I4
1.5 L LEB-H5 Atkinson cycle i-MMD I4
Diesel:
1.5 L N15 I4 turbo (India)
Electric motor79 kW (107 PS; 106 hp) AC PMSM
Transmission
6-speed manual
CVT
