FACTORY SERVICE REPAIR WORKSHOP MANUAL FOR TOYOTA HILUX VIGO KUN 15/16/25/26/36 (2005-2015) FOR OFFLINE VIEWING (WEB BROWSER). SUPPLIED WITH DOWNLOADABLE LINK.
This is the same type of service manual your local TOYOTA dealer will use when doing a repair. This manual has detailed illustrations as well as step by step instructions. All pages are printable, so run off what you need and take it with you into the garage or workshop.
REFERENCE POWERTRAIN Engine Petrol: 2.0 L 1TR-FE VVT-i I4 2.7 L 2TR-FE VVT-i I4 4.0 L 1GR-FE VVT-i V6 4.0 L 1GR-FE supercharged VVT-i V6 Petrol/CNG: 2.7 L 2TR-FE VVT-i I4[citation needed] Diesel: 2.5 L 2KD-FTV D-4D Turbodiesel I4 (102 hp: non-intercooler, 120 hp: intercooler) 2.5 L 2KD-FTV D-4D VN-Turbo I4 3.0 L 1KD-FTV D-4D turbocharged I4 Transmission 5-speed manual 4-speed automatic 5-speed A750F automatic

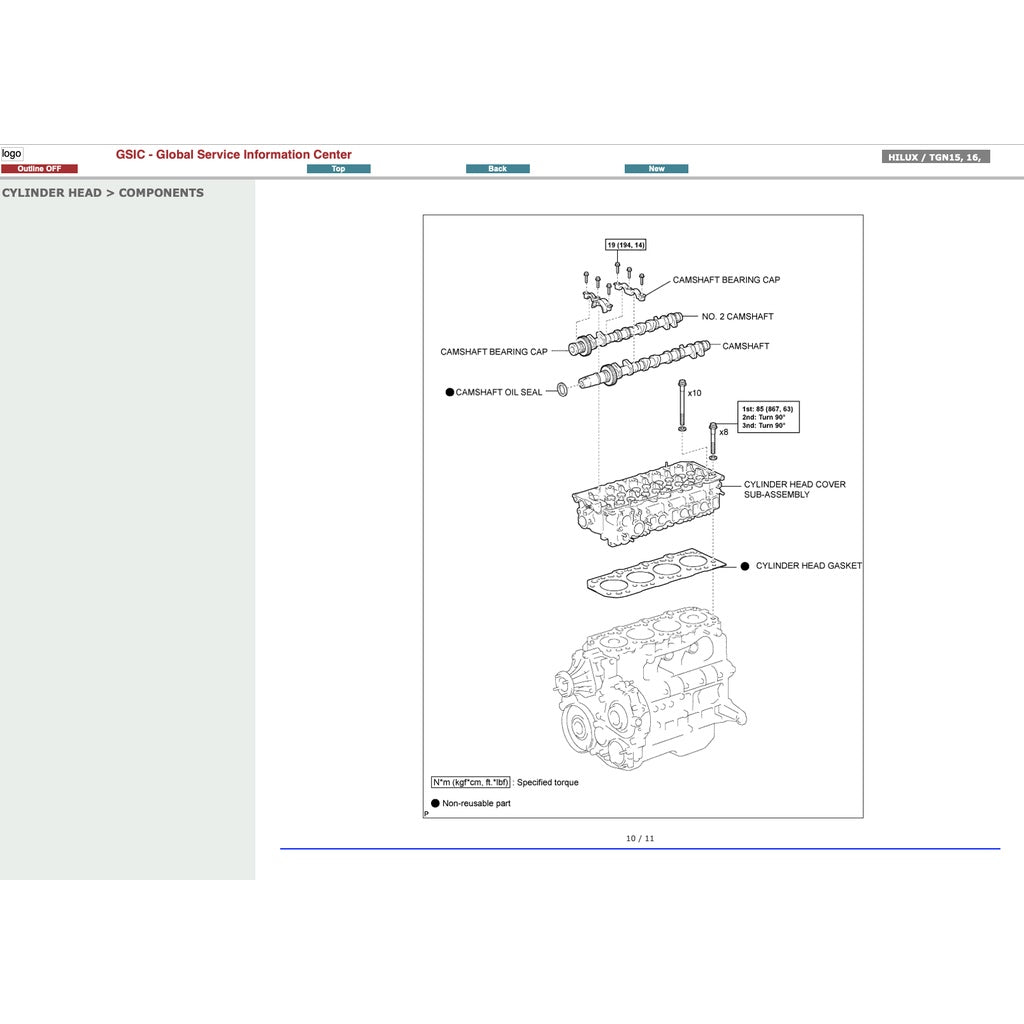

WHAT'S INSIDE ? Detailed sub-steps expand on repair procedure information Notes, cautions and warnings throughout each chapter pinpoint critical information. Numbered instructions guide you through every repair procedure step by step. Bold figure number help you quickly match illustrations with instructions. Detailed illustrations, drawings and photos guide you through every procedure. Enlarged inset helps you identify and examine parts in detail. Numbered table of contents easy to use so that you can find the information you need fast. This manual also makes it easy to diagnose and repair problems with your machines electrical system. Troubleshooting and electrical service procedures are combined with detailed wiring diagram for ease of use.
