FORD TRANSIT CUSTOM (2012-2022) SERVICE WORKSHOP MANUAL

FORD TRANSIT CUSTOM (2012-2022) SERVICE WORKSHOP MANUAL IN PDF FORMAT (2237 PAGES) AVAILABLE AS DOWNLOADABLE LINK.

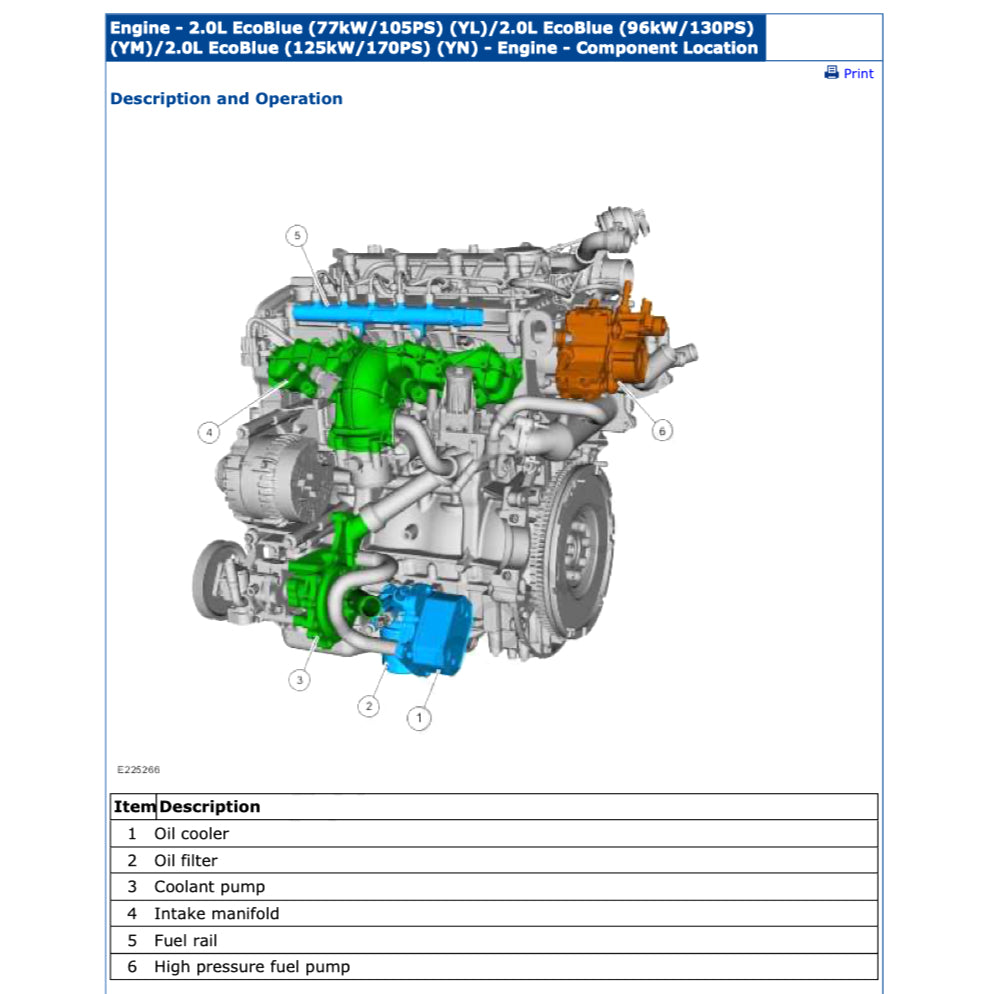

ENGINE FEATURED IN THIS MANUAL: 2.0 L EcoBlue I4 turbodiesel

REFERENCE POWERTRAIN

Engine

Petrol:

2.0 L EcoBoost I4 turbo

Petrol PHEV:

1.0 L EcoBoost I3 turbo(PHEV)

Diesel:

2.2 L Duratorq I4 turbodiesel(2012-2016)

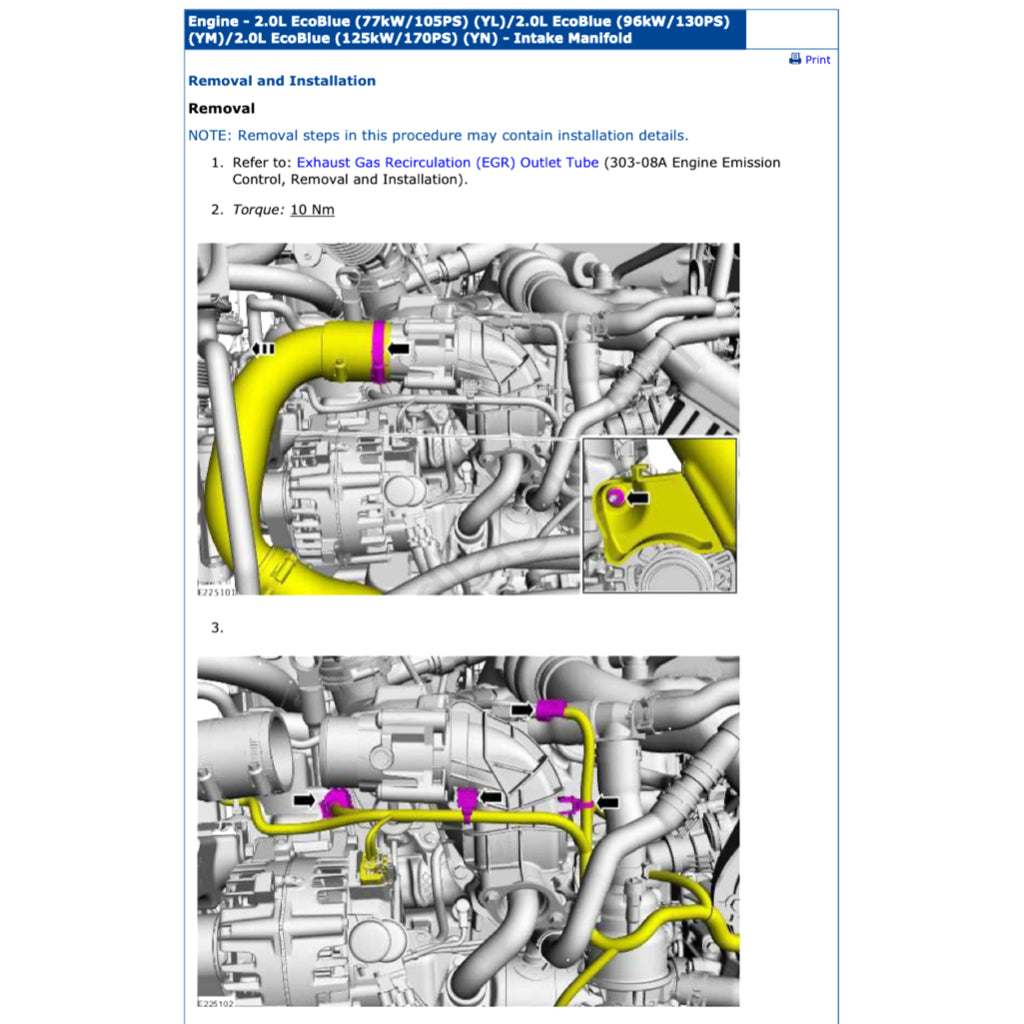

2.0 L EcoBlue I4 turbodiesel

Diesel Mild Hybrid engines

2.0 L EcoBlue Hybrid mHEV I4turbodiesel

Electric motor11.5 kW (15.4 hp) belt-driven integrated starter/generator (BISG) (Transit Custom EcoBlue Hybrid)

Transmission

5 speed manual

6-speed manual

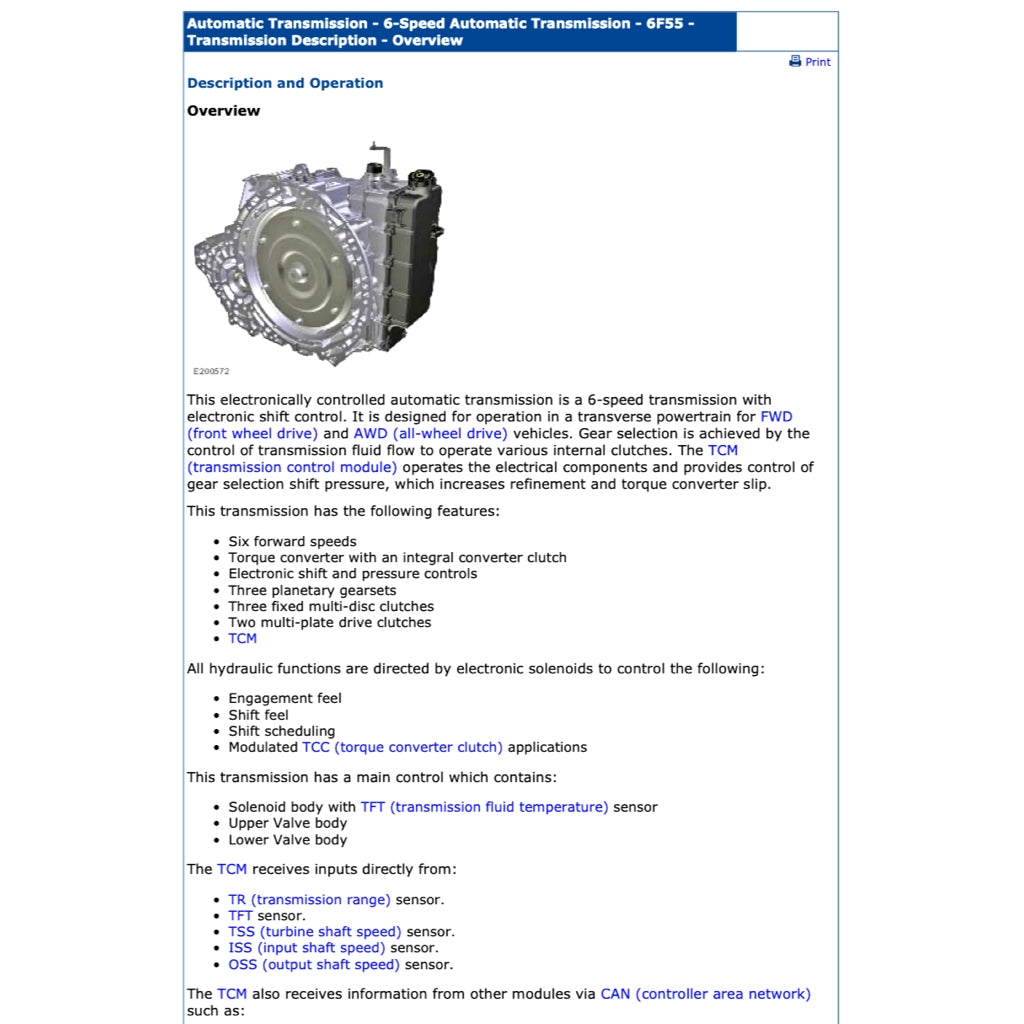

6-speed automatic

9 speed automatic

Hybrid drivetrainEcoBlue Hybrid mHEV (Transit Custom EcoBlue Hybrid)

Battery48-volt battery pack

13.6 kWh (PHEV)Plug-in charging2.4 kW AC or Type 2 7.2 kW AC (PHEV)
