FORD EXPLORER U625 (2020+) SERVICE WORKSHOP MANUAL

FORD EXPLORER U625 (2020+) SERVICE WORKSHOP MANUAL IN PDF FORMAT (11894 PAGES) SUPPLIED AS DOWNLOADABLE LINK

ENGINE FEATURED IN THIS MANUAL: 2.3 L EcoBoost I4; 3.0 L EcoBoost twin turbocharged V6; 3.3 L Cyclone Duratec V63.3 L Cyclone Duratec FFV V6

REFERENCE POWERTRAIN

Engine

Gasoline:

2.3 L EcoBoost turbocharged I4

3.0 L EcoBoost twin turbocharged V6

3.3 L Cyclone FFV V6 (Ford Police Interceptor Utility)

Gasoline hybrid/plug-in hybrid:

3.3 L Cyclone V6

3.0 L EcoBoost twin-turbo V6

Electric motor44 hp (45 PS; 33 kW) Modular electric-motor system

102 PS (75 kW; 101 hp) Permanent-magnet synchronous AC electric motor

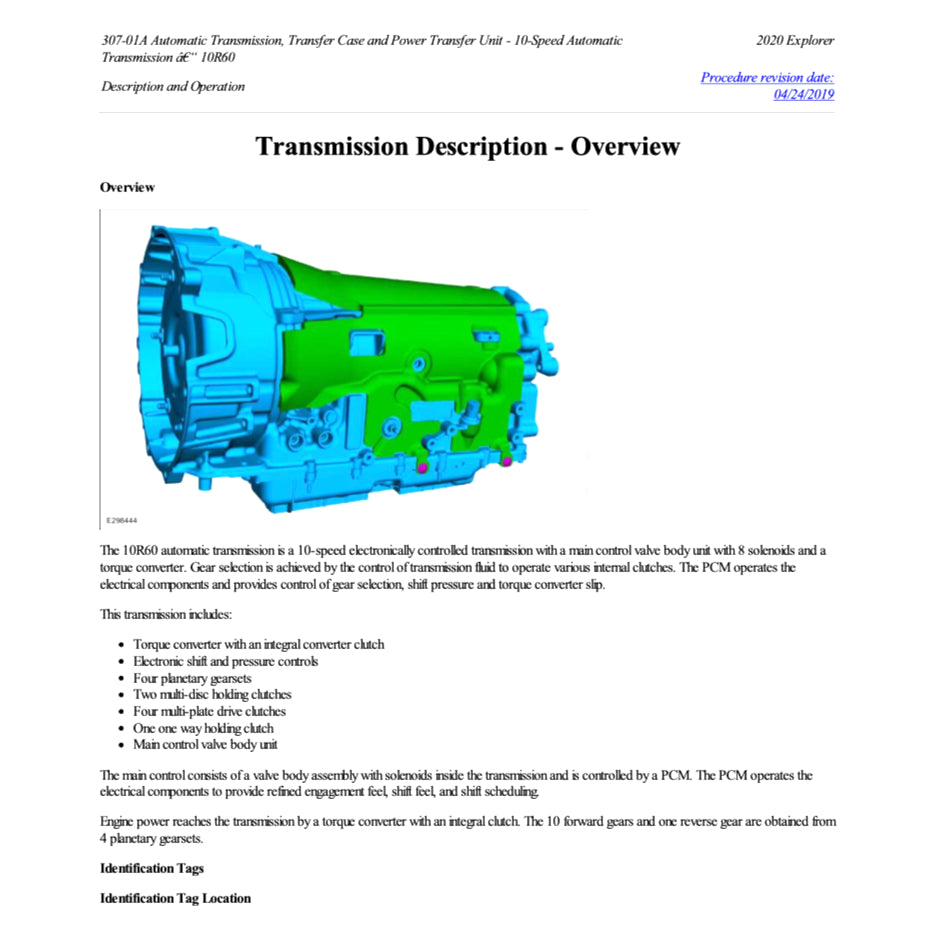

Transmission: Ford 10R60 10-speed Select Shift automatic

Hybrid drivetrain

FHEV (Explorer Hybrid)

EcoBoost PHEV (Explorer PHEV)Battery14.4 kwh Lithium-ion (Li-ion)
