FORD EXPLORER U502 (2011-2019) SERVICE WORKSHOP MANUAL

FORD EXPLORER U502 (2011-2019) SERVICE WORKSHOP MANUAL IN PDF FORMAT (9453 PAGES) SUPPLIED AS DOWNLOADABLE LINK.

ENGINE FEATURED IN THIS MANUAL: 3.5 L Duratec Ti-VCT V6

REFERENCE POWERTRAIN

Engine

Gasoline:

2.0 L EcoBoost turbocharged I4(front-wheel drive only)

2.3 L EcoBoost turbocharged I4

3.5 L Duratec Ti-VCT V6

3.5 L EcoBoost twin-turbocharged V6 (all-wheel drive only)

3.7 L Cyclone Ti-VCT FFV V6 (Police Interceptor Utility, all-wheel drive only)

Transmission

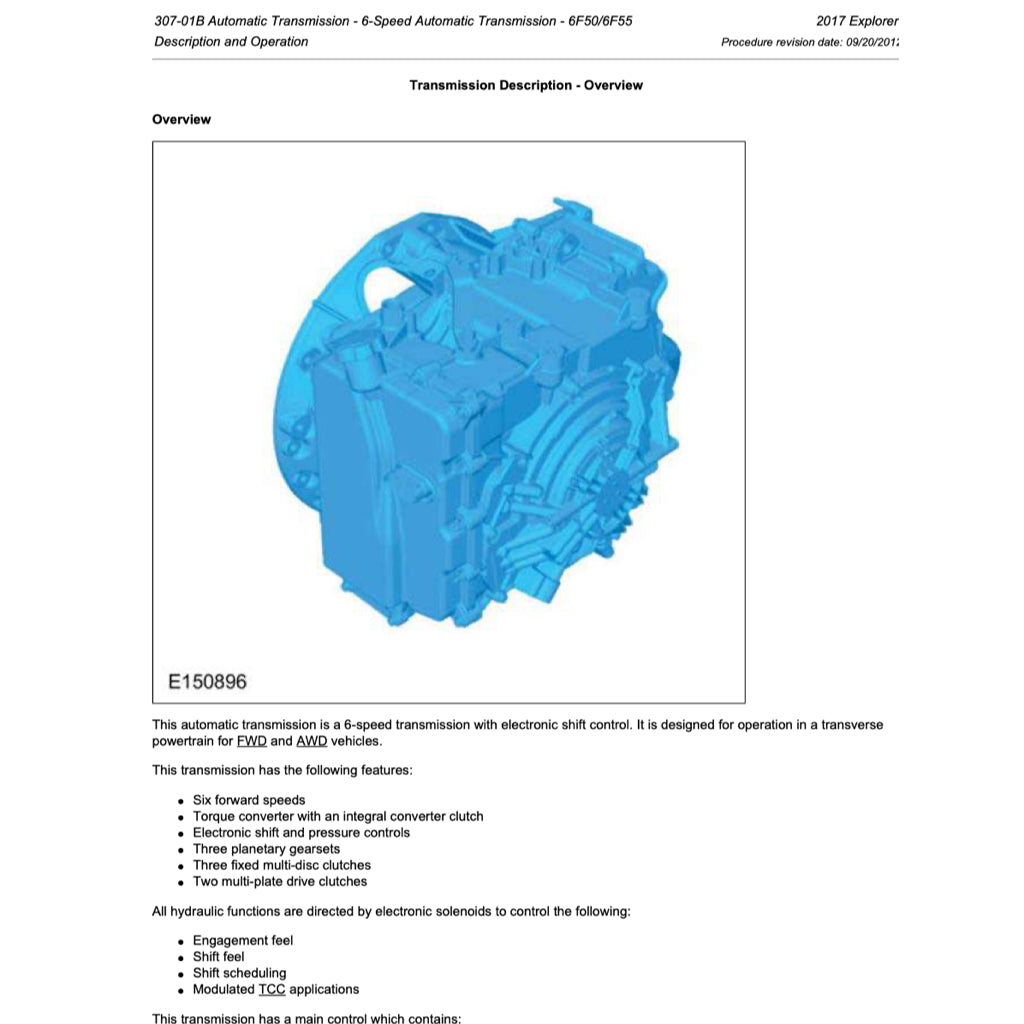

6-speed Ford 6F automatic w/ overdrive (EcoBoost I4 model)

6-speed 6F SelectShiftautomatic (3.5L/3.7L)

6-speed 6F SelectShiftautomatic with paddle shifters (Sport model)
