DAIHATSU TERIOS F800/F850 (2017+) SERVICE WORKSHOP MANUAL

DAIHATSU TERIOS F800/F850 (2017+) SERVICE WORKSHOP MANUAL IN PDF FORMAT (2300 PAGES) SUPPLIED AS DOWNLOADABLE LINK.

THIS IS THE COMPLETE WORKSHOP MANUAL WHICH INCLUDES 1.5L ENGINE 2NR-VE; AUTOMATIC TRANSMISSION, BODY/CHASSIS AND WIRING DIAGRAM. THE MANUAL FEATURES HUNDREDS OF TUTORIAL PICTURES, EXPLODED DIAGRAMS. TORQUE SETTING, ETC...

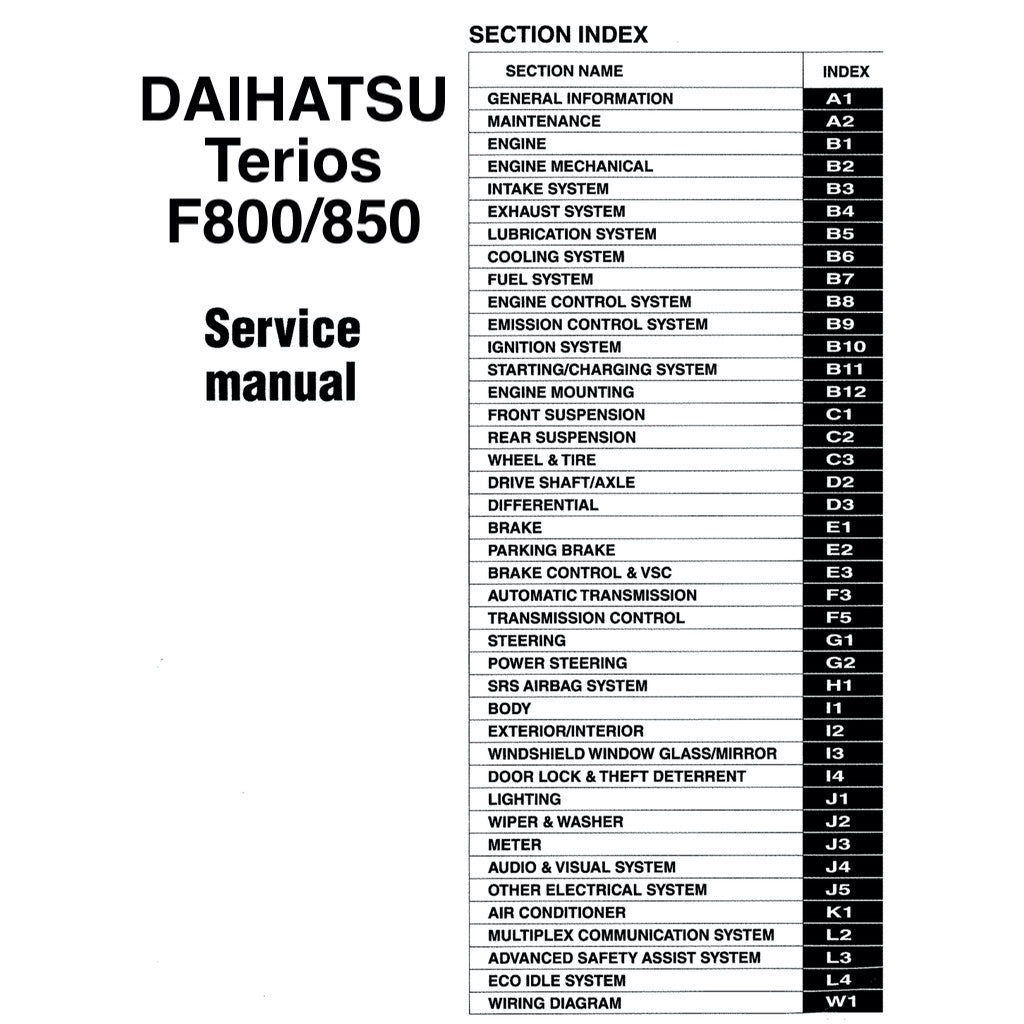

CONTENTS (SEE PICTURES):

- GENERAL INFORMATIONS/SPECIFICATIONS/SERVICE/MAINTENANCE

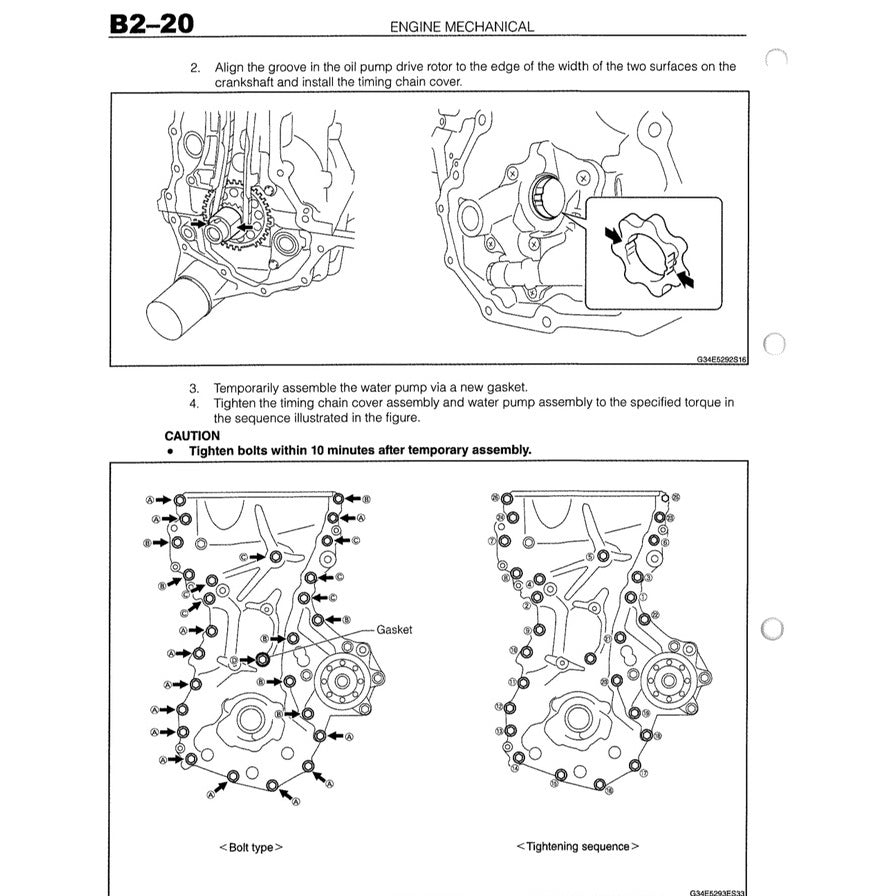

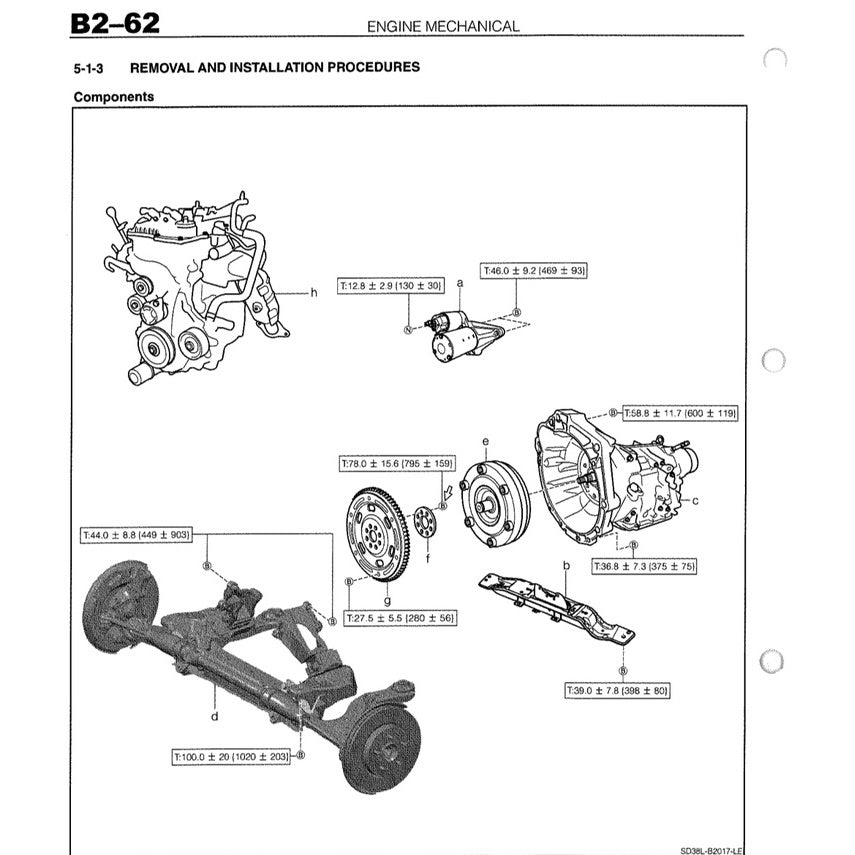

- ENGINE, ENGINE SYSTEMS AND CONTROLS (2NR)

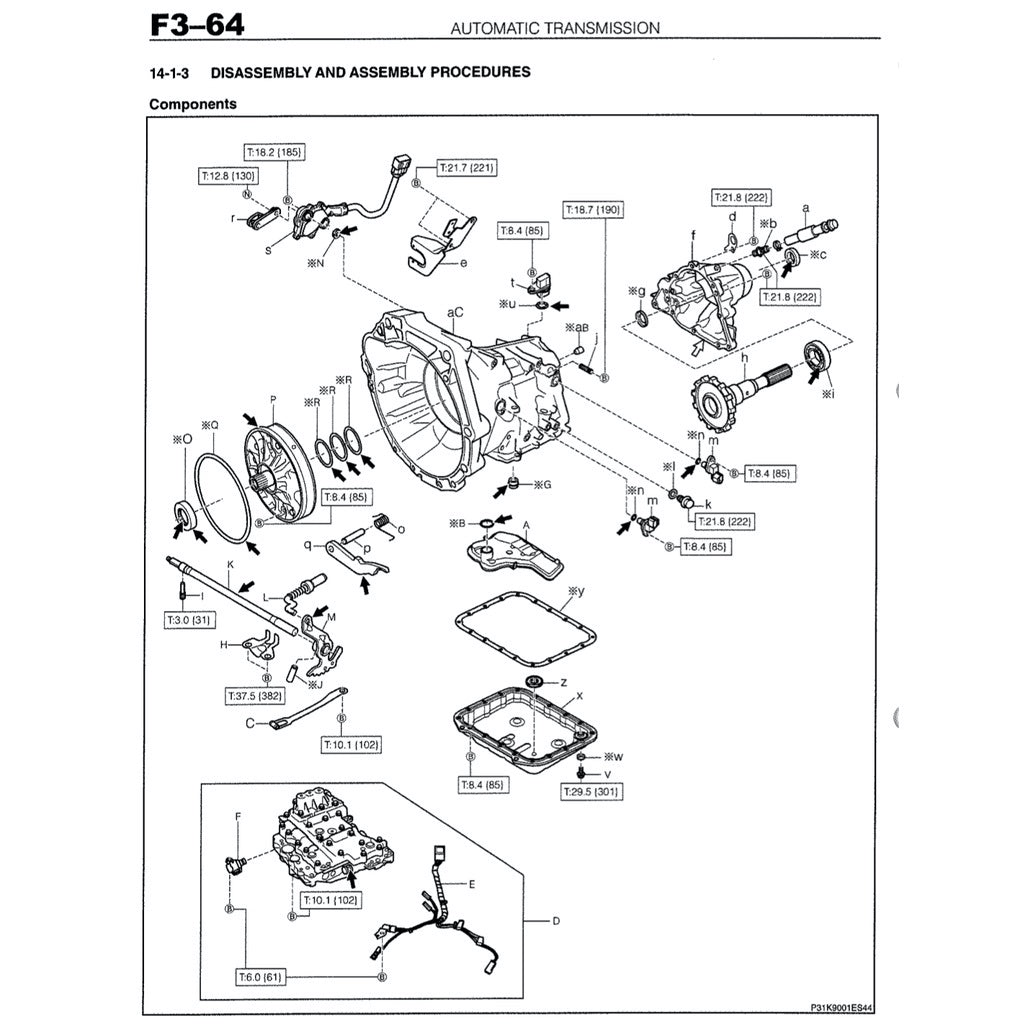

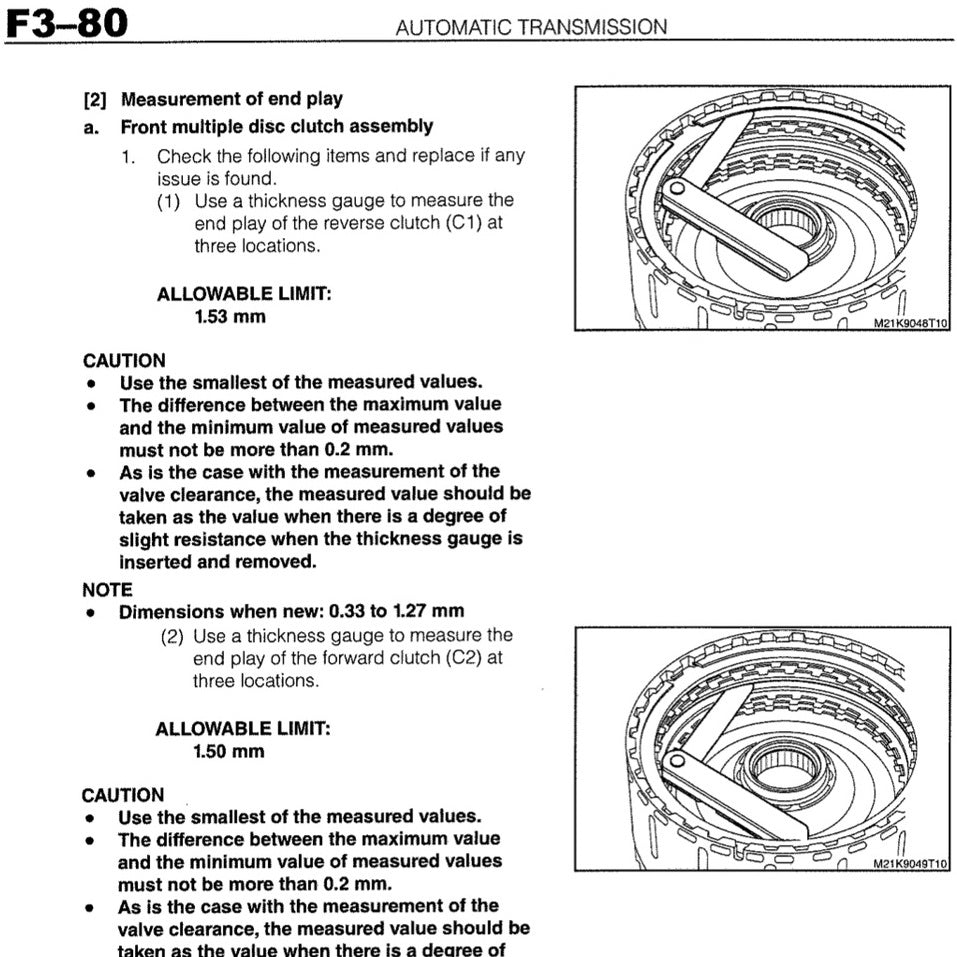

- TRANSMISSION & TRANSAXLES: AUTOMATIC TRANSMISSION AND CONTROLS

- RUNNING GEARS INCLUDING SUSPENSION & STEERING, BRAKE, ABS, WHEELS & TYRES

- BODYWORK

- HVAC

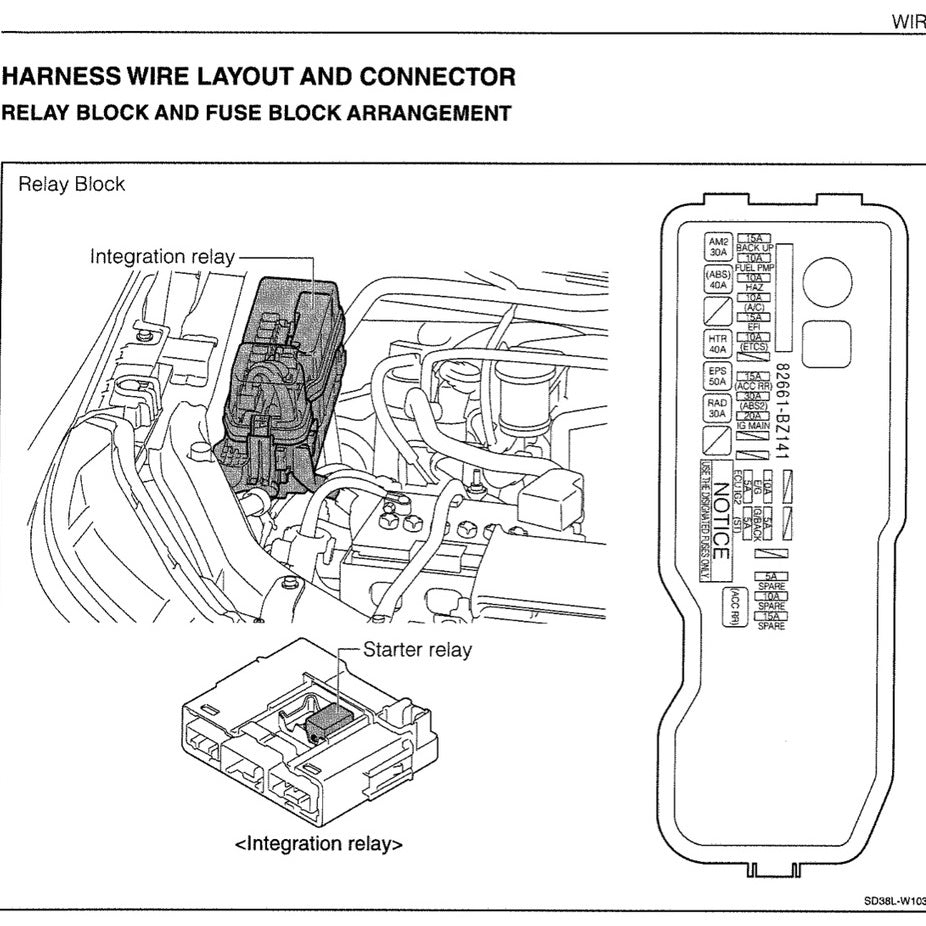

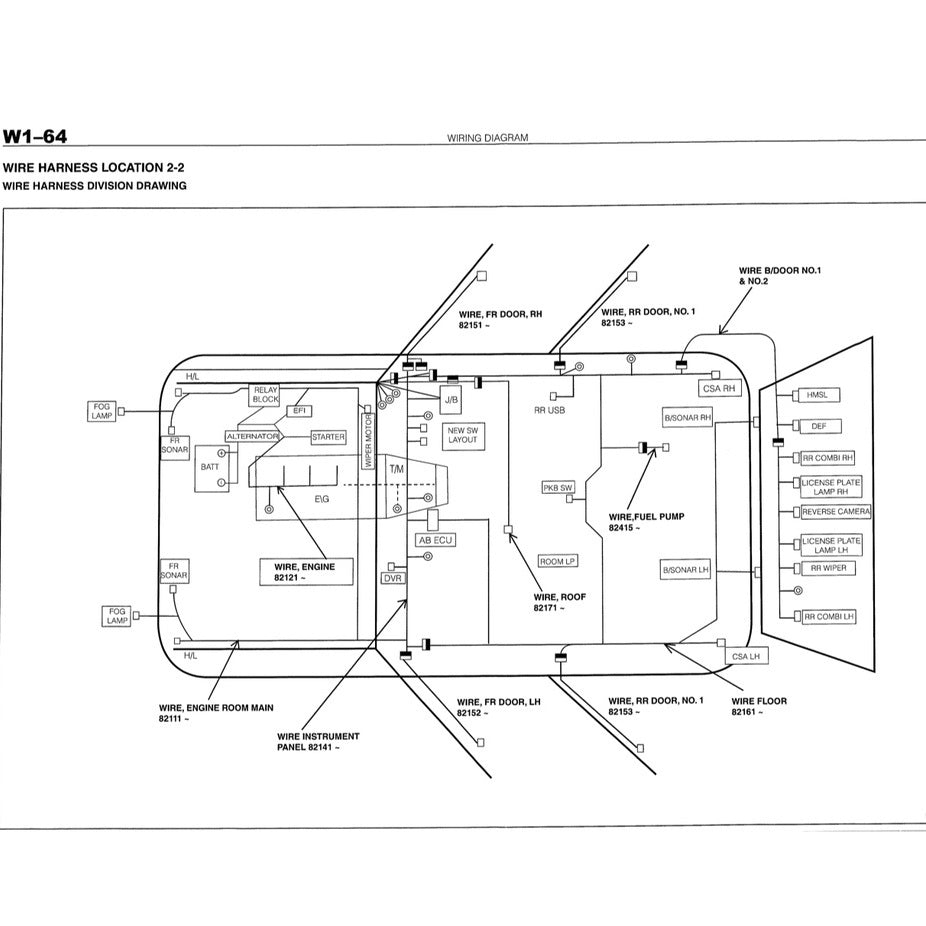

- BODY ELECTRICAL WIRING DIAGRAMS INCLUDING SYSTEMS DIAGRAMS, WIRING HARNESS OUTLAY AND CONNECTORS IDENTIFICATION

REFERENCE POWERTRAIN

Engine: 1.5 L 2NR-VE I4

Transmission

5-speed manual

4-speed automatic
