DAIHATSU BOON LUMINAS M500 (2009-2021) SERVICE WORKSHOP MANUAL

DAIHATSU BOON LUMINAS M500 (2009-2021) SERVICE WORKSHOP MANUAL IN PDF FORMAT (1455 PAGES) SUPPLIED AS DOWNLOADABLE LINK.

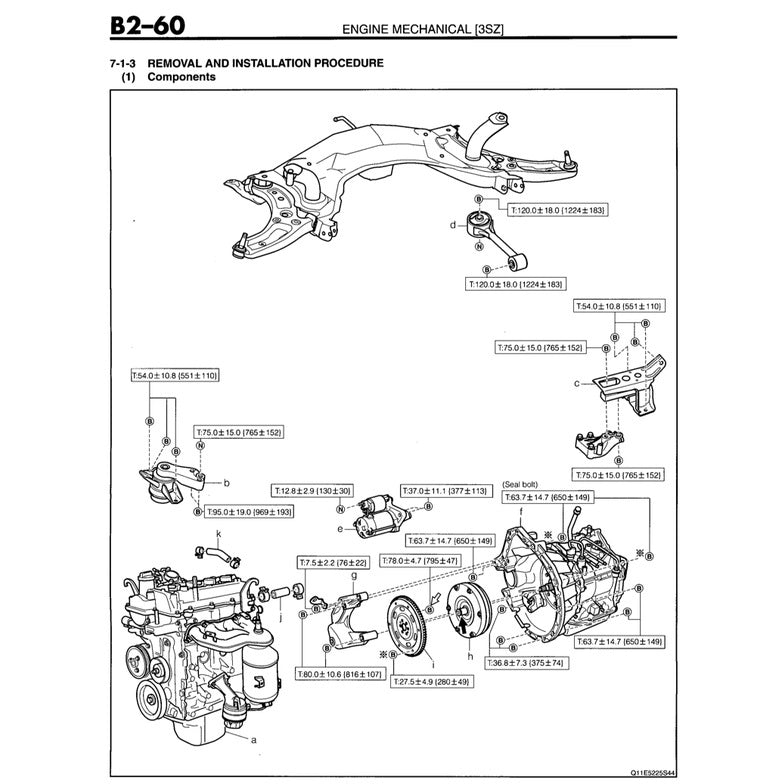

THIS IS THE COMPLETE WORKSHOP MANUAL WHICH INCLUDES 1.5L ENGINE 3SZ-VE; AUTOMATIC & MANUAL TRANSMISSION, BODY/CHASSIS AND BODY WIRING DIAGRAM. THE MANUAL FEATURES HUNDREDS OF TUTORIAL PICTURES, EXPLODED DIAGRAMS. TORQUE SETTING, YOU NAME IT.

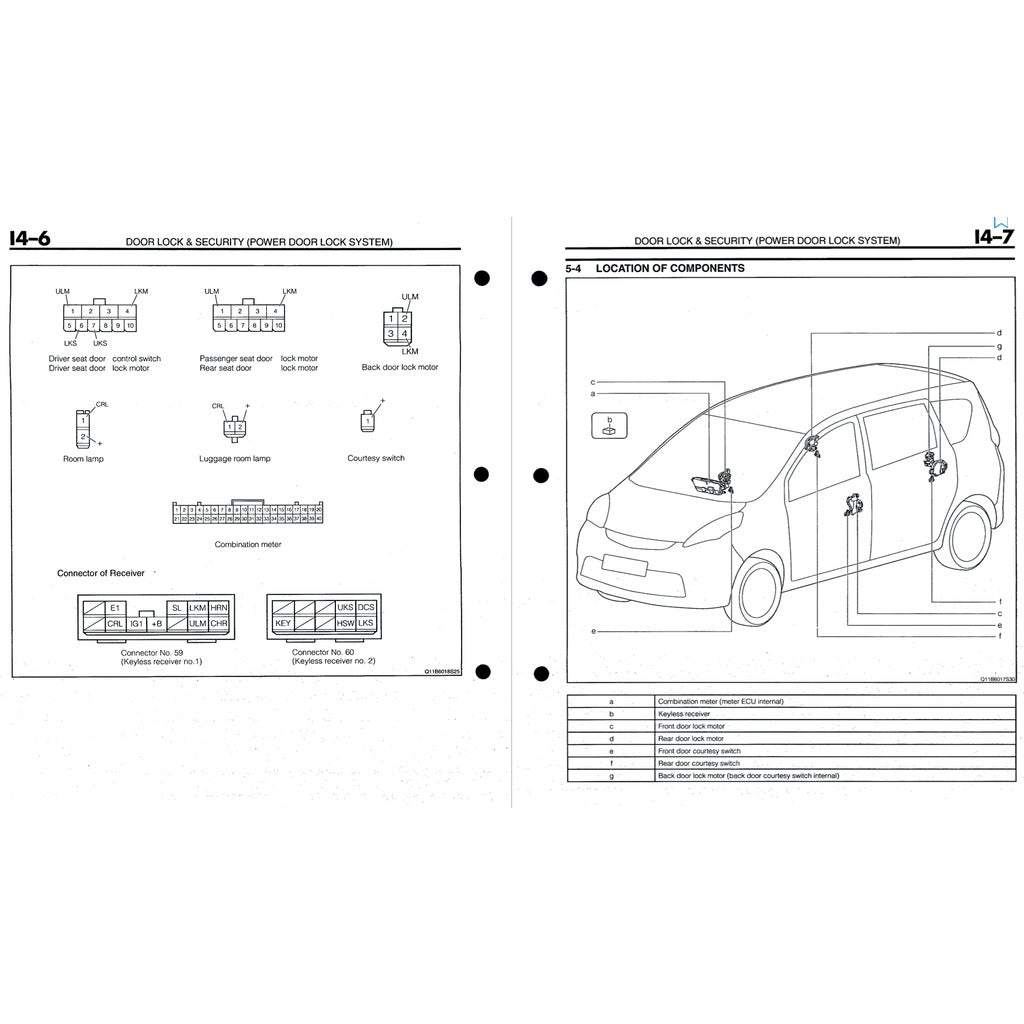

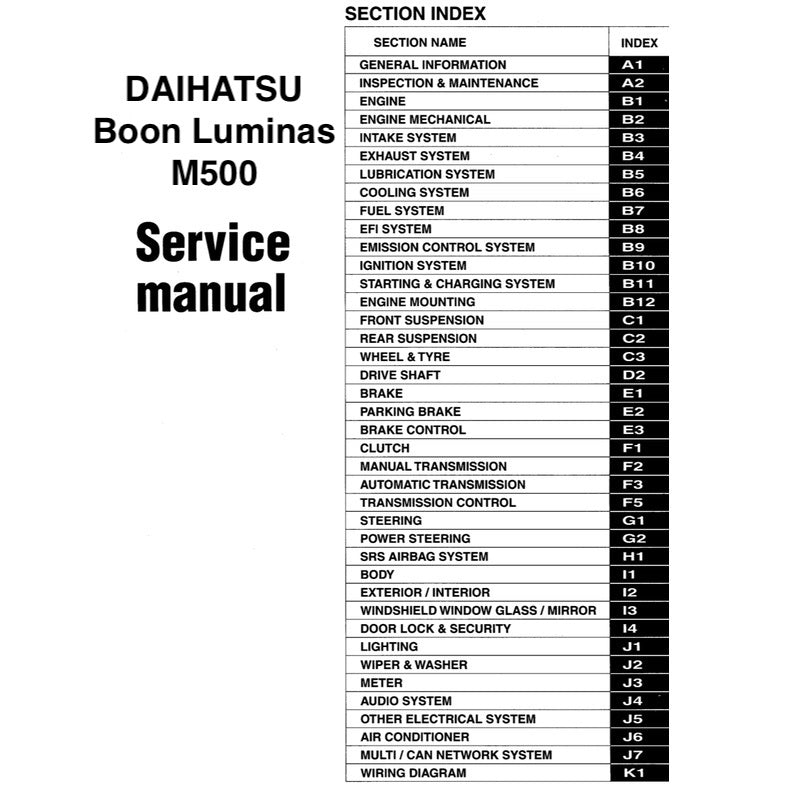

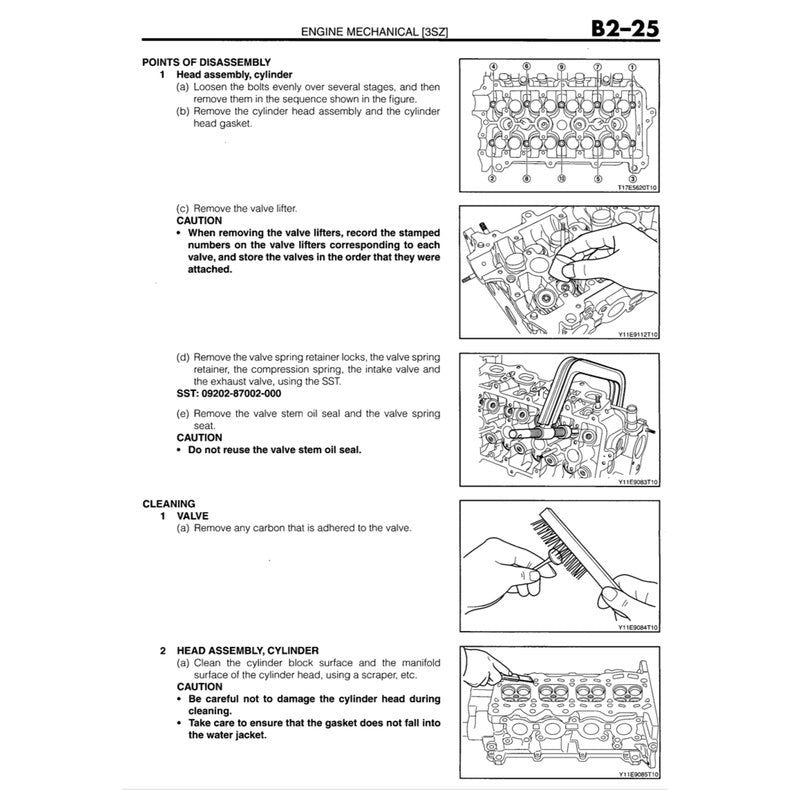

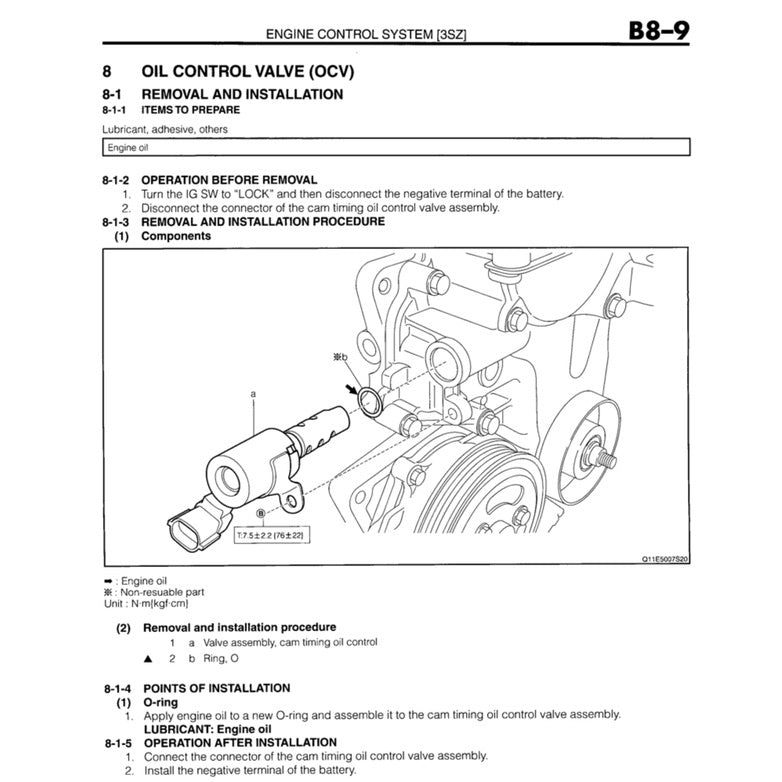

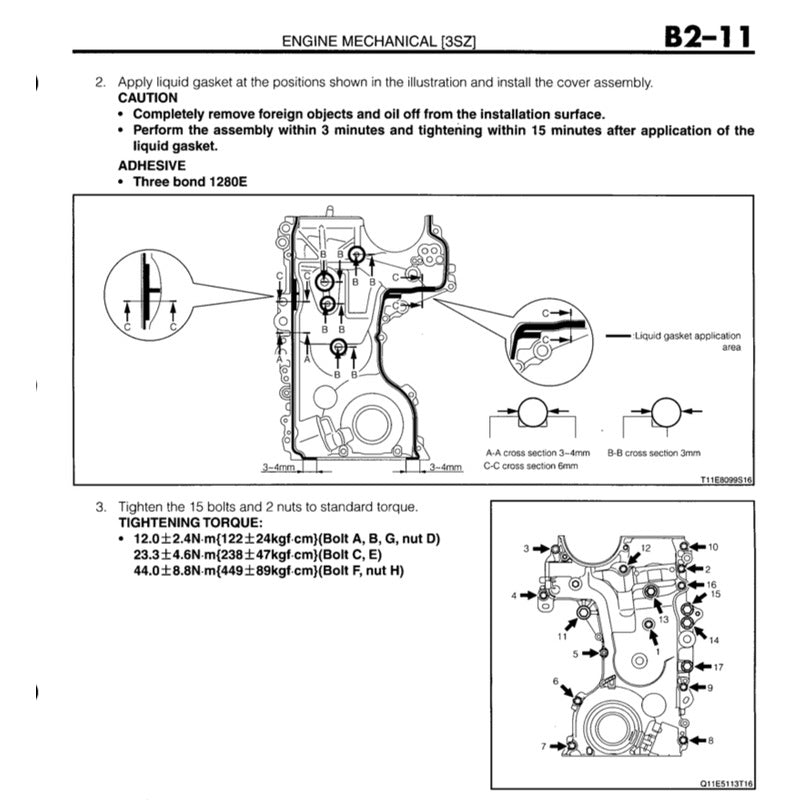

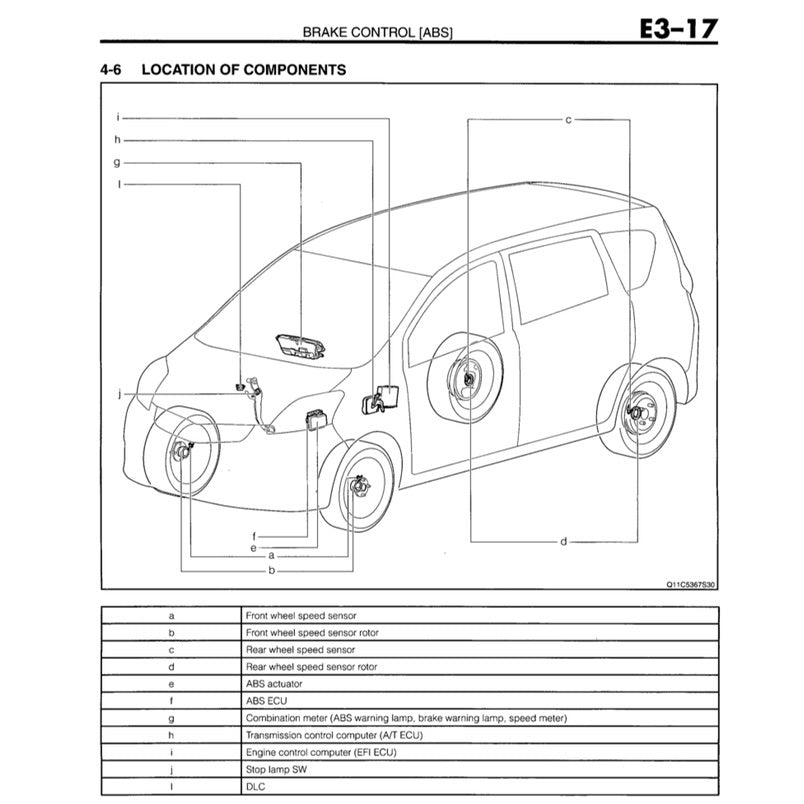

CONTENTS (SEE PICTURES):

1. GENERAL INFORMATIONS/SPECIFICATIONS/SERVICE/MAINTENANCE

2. ENGINE & ENGINE SYSTEMS (3SZ-VE)

3. TRANSMISSION & TRANSAXLES/ AUTO& MANUAL, CLUTCH

4. RUNNING GEARS INCLUDING SUSPENSION & STEERING, BRAKE, ABS, WHEELS & TYRES

5. BODYWORK

6. HVAC

7. BODY ELECTRICAL WIRING DIAGRAMS

REFERENCE POWERTRAIN

Engine: 1.5 L 3SZ-VE I4

Transmission

- 5-speed manual

- 4-speed automatic
